LIN-11 Plastic linear bearing liners - CSB® Plastic Bearing Technology

Product properties

● Closed design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13
● Aluminum shaft liner MN2
● 250℃ High-temp. EPB5

Standard products

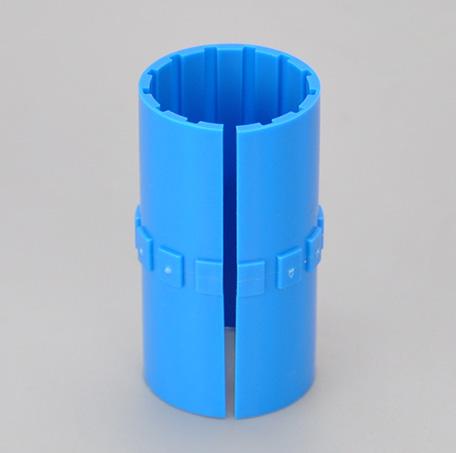

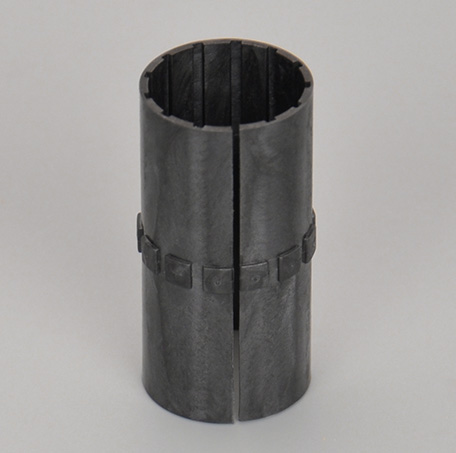

Standard EPB13

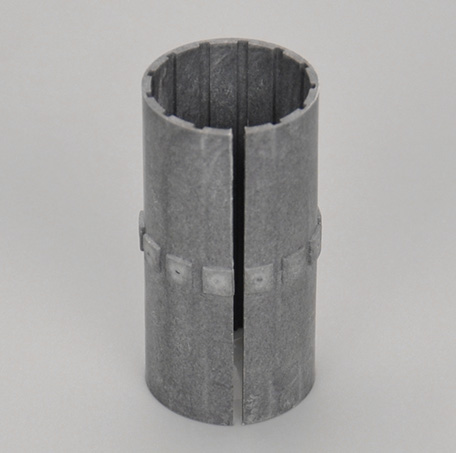

Aluminum shaft MN2

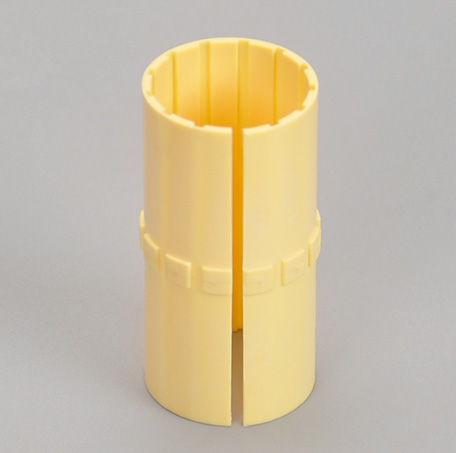

250℃ High-temp. EPB5

LIN-11 Plastic linear bearing liners

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

b1 [mm]：

r [mm]：

z [mm]：

t [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Shop now

Dimensions

▊LIN-11 liners installation size

Part No.	Shaft [mm]	D H7 [mm]	B h10 [mm]	r^+0.5 [mm]	t^+0.05 [mm]	Z^+0.2 [mm]
LIN-11-10	10	12	29	3.0	0.8	2.6
LIN-11-12	12	14	32	3.0	1.0	3.1
LIN-11-16	16	18	36	3.5	1.2	3.6
LIN-11-20	20	23	45	5.0	1.2	3.6
LIN-11-25	25	28	58	5.0	1.5	4.1
LIN-11-30	30	34	68	5.0	1.5	4.1
LIN-11-40	40	44	80	6.0	2.0	5.0
LIN-11-50	50	55	100	7.0	2.0	6.1

CSB®LIN-11 Plastic linear bearing liners

Type PDF

Size 110KB

Time 03-2020

No. CSB/CAT.052

download

2513

塑料直线轴承查找器 — CSB-LIN®

CSB-LIN® Plastic Linear Bearings Finder V2.0

view tools

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
