CSB® News Application technology Product technology

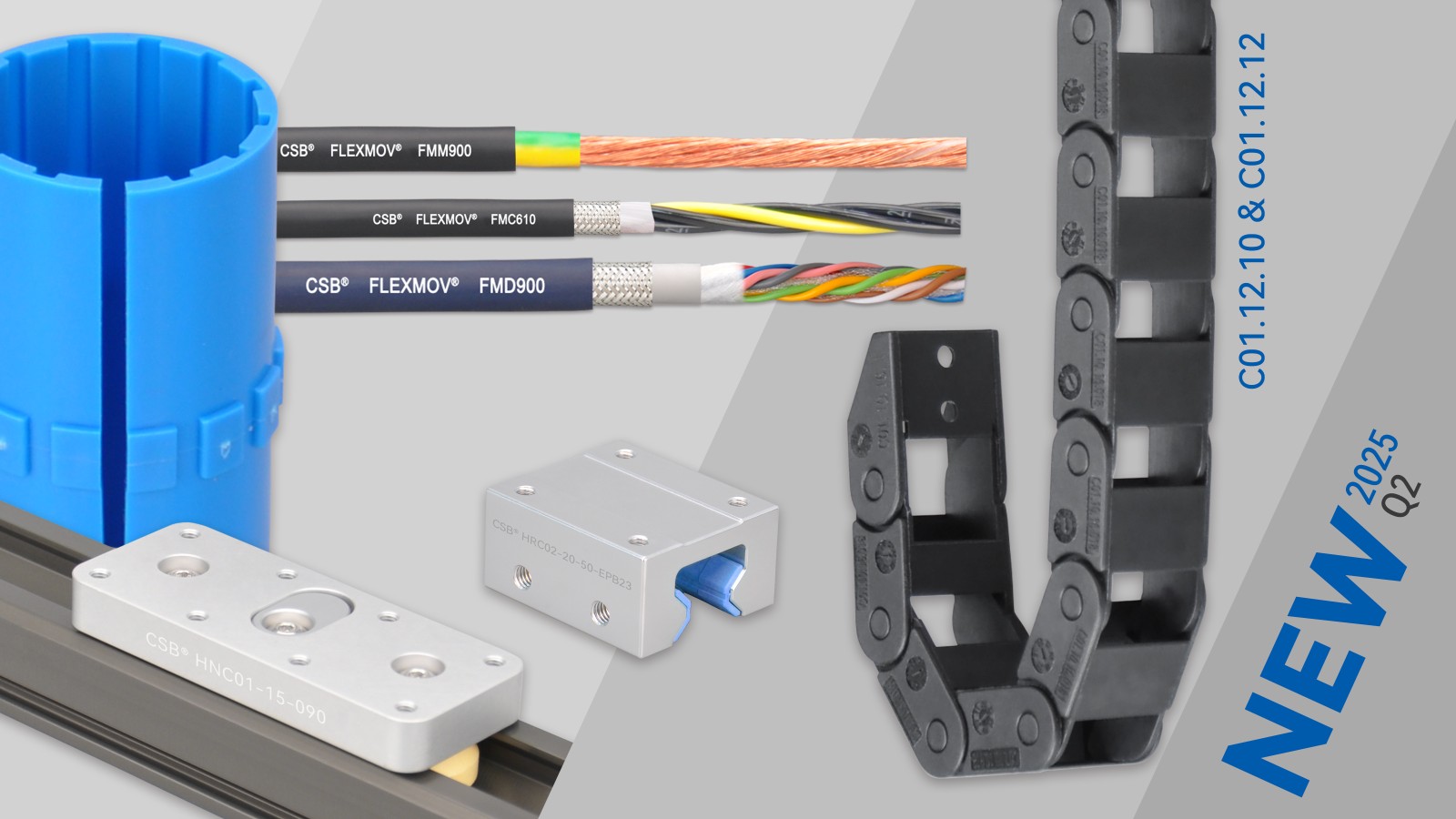

2025Q2 NEW Products

Date：2025-07-30 10:02:39 Hits：40


▊ DURAFILM® Polymer Coating Technology

DURAFILM® polymer coatings combine thermoplastic and thermosetting composite layers, providing superior lubrication performance for components operating in extreme environments. They offer excellent wear-resistant layers on friction surfaces while delivering anti-rust and anti-corrosion protection for metal parts. Based on application requirements, we have developed specialized highperformance coatings tailored for low friction coefficients, high loads, high temperatures, conductivity, and other demanding conditions.

▊ The maximum bore diameter for filament winding has been increased to 600mm.

The backing material of DURARUB® material is high strength glass fiber with epoxy resin and the lubricating layer of it is PTFE wound fiber or special lubricating fiber. Therefore, this special structure performs an outstanding anti-wear feature and low friction coefficient under high load and low speed condition. Furthermore, this absolutely new idea gives better solution for high load and excellent wear resistance possibility.

▊ HN Linear guide rails

● The installation holes are consistent with the standard ball guide rails

● Made of hard anodized surface of aluminum alloy

● Available longer design by the guide rails connection

● Maintenance-free with HNC roller carragies

● Compact design carriages, self-lubricating and maintenance-free

● Very suitable for high speed applications, the speed up to 10m/s

● Smooth moving, Driving force is about 10% of sliding carriages

▊ HRC02 Guide rail carriages

● Fitted standard liners EPB13, -50/+90℃

avaliable FDA grade and high anti-wear EPB23, -100/+180℃

● Maintenance-free, dry-running

● Fast assembly and light weight

● For HR linear guide rails

● Resistant dust

● Quiet operation

▊ WRU01-DC Round rail sliding blocks

● Low cost, Maintenance-free

● Die-casting aluminum housing

● EPB13 and MN2 liners are available

● Resistant dust and low noise

● For WR single and dual guide rails

▊ LIN-11 Plastic linear bearing liners - FDA

● Closed design sliding liners

● Self-lubricating and dust resistance

● FDA grade material MN60

▊ EPB21 Self-lubricating plastic rods

● Continuous working temperature: -40/+200℃

● Very low coefficient of friction

● Maintenance-free dry operation

● High temperature and good chemical resistance

● Suitable for humid environment

▊ M86 Self-lubricating plastic plates

● Continuous working temperature: -40/+110℃

● Maintenance-free, self-lubricated

● Low friction, anti-wear

● Impact resistance, low noise

● Excellent dimensional stability

▊ FLEXMOV® Flexible cables： new sizes added

Control cables FMC	FMC610.25.03
	FMC800.25.12
	FMC901.15.03
Data cables FMD	FMD900.07.03.02
Motor cables FMM	FMM903.40.05
	FMM912.1500.01
	FMM917.25.04
	FMM917.250.04
