GSQB PV Support bracket bearings - CSB® Plastic Bearing Technology

Product properties

●Integrated design plastic spherical bearings
●UV resistance
●High and low temperature，damp-heat aging
●Low friction, wear resistance
●Suitable for flat or slope brackets
●Self lubricating, maintenance-free
●High strength, easy installation

Standard products

GSQB PV Support bracket bearings

Part no.:

L1 [mm]：

L2 [mm]：

L3 [mm]：

L4 [mm]：

d1 [mm]：

d2 [mm]：

H1 [mm]：

H2 [mm]：

H3 [mm]：

SD [mm]：

R [mm]：

B1 [mm]：

B2 [mm]：

B3 [mm]：

*Lead time [wks]：

Shop now

Dimensions

■Solar Tracker Split Bearings

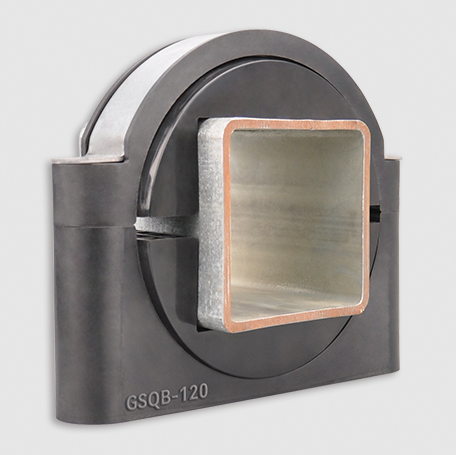

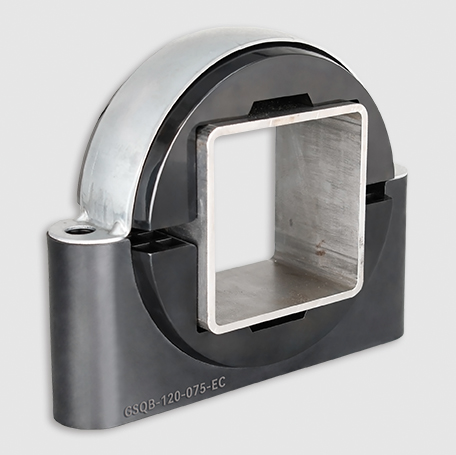

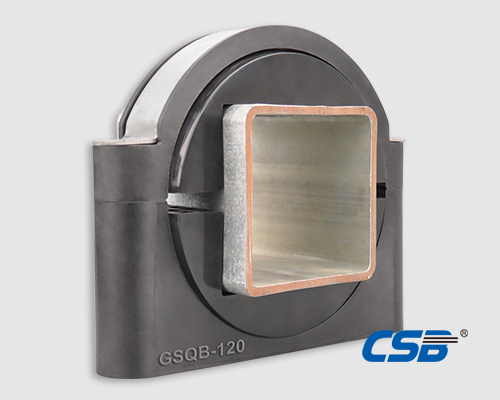

GSQB is a split bearing specially developed for solar trackers. It has the characteristics of high load capacity, simple installation, self-lubricating and maintenance-free, and high UV resistance. In order to simplify on-site assembly and improve assembly efficiency, the internal ball and the external bearing housing with a split design; in order to further increase the radial pulling force on the bearing due to reverse wind resistance, the upper cover of the bearing is reinforced with a galvanized steel clamp.

■Bearing material design

The inner ball is made of corrosion-resistant, UV-aging resistant and friction-optimized composite material DURAPLAS® MN527, the bearing housing is made of high-strength and UV-aging resistant composite material DURAPLAS® M163, and the metal clamp is made of high-strength galvanized steel.

■Typical characteristics

● Self-lubricating, maintenance-free

● Excellent UV resistance

● Low friction and high wear resistance

● High strength and corrosion resistance

● Angle compensation up to 9 degrees

● Radial load ≥50kN

● Simple and efficient assembly

■Weather ability property

● Test Method : ISO 4892-3-2016

● Total exposure：45Kw.h

● Exposure time：4000h
