BTU Ball transfer units - CSB® Plastic Bearing Technology

Product properties

In comparison to steel units, ball transfer units out of plastics are non-conductive, resistant to acid and lye, no lubrication, maintenance-free low friction, low weight (up to 70 % less), appropriate for vacuum or pressure, saltwater-proof, free of metallic components depending on selection of materials, transport of fragile goods such as glass, available use in explosive atmosphere and aseptic areas (e. g. medical technology), customized design possible.

Standard products

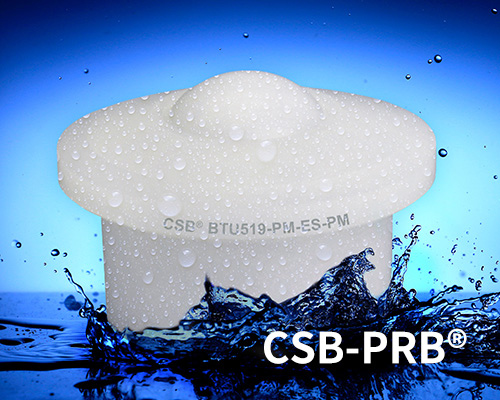

BTU Ball transfer units

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 ±0.10 [mm]：

h1 [mm]：

h2 ±0.20 [mm]：

*Lead time [wks]：

Shop now

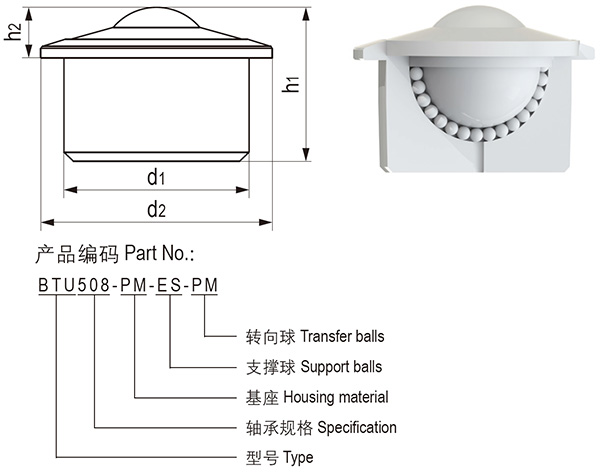

Dimensions

▊BTU Ball transfer units load capacity

Part No.	*Max. axial static load
Part No.	[N]
BTU508-PM-ES-PM	45
BTU512-PM-ES-PM	55
BTU515-PM-ES-PM	70
BTU519-PM-ES-PM	85
BTU522-PM-ES-PM	100
BTU525-PM-ES-PM	120
BTU530-PM-ES-PM	150
BTU538-PM-ES-PM	175
BTU545-PM-ES-PM	200
BTU560-PM-ES-PM	300

*Max. static load depending on selection of materials

▊BTU Ball transfer unit optional materials

Housing			Transfer balls			Support balls
PM	POM	Standard materials -40/+90℃	PM	POM	Standard materials -40/+90℃	PM	POM	Non-magnetic and lightweight -40/+90℃
PK	PEEK	High-load & Anti-corrosion -100/+250℃	ES	Stainless steel	High-load	ES	Stainless steel	Standard materials
PT	PET	Medical radiation -40/+100℃	ZO	Ceramic	High-load & Anti-corrosion -200/+400℃	ZO	Ceramic	High-load&Anti-corrosion -200/+400℃
PS	PPS	High-load & Anti-corrosion -40/+200℃	PK	PEEK	High-load & Anti-corrosion -100/+250℃	PK	PEEK	High-load&Anti-corrosion -100/+250℃
PF	PVDF	Vacuum applications -50/+150℃	GL	Glass	Lightweight and low cost -200/+400℃	GL	Glass	Lightweight and low cost -200/+400℃

CSB-PRB® BTU Ball transfer units

Type PDF

Size 153KB

Time 06-2022

No. CSB/CAT.062E
