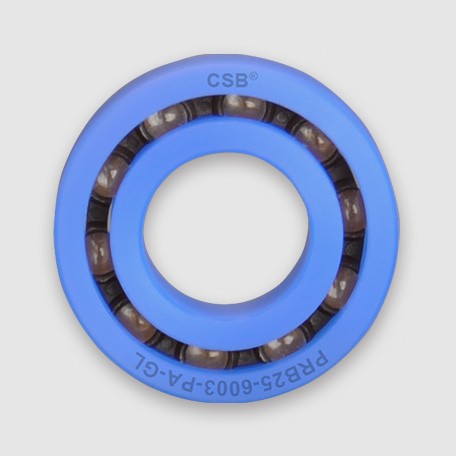

PRB25 Plastic ball bearings

Product properties

PRB25 plastic ball bearings material is friction optimized wear resistance material with low friction and good fatigue resistance.

It is suitable for the high speed operation.

The material is alkali, acid and detergent resistance.

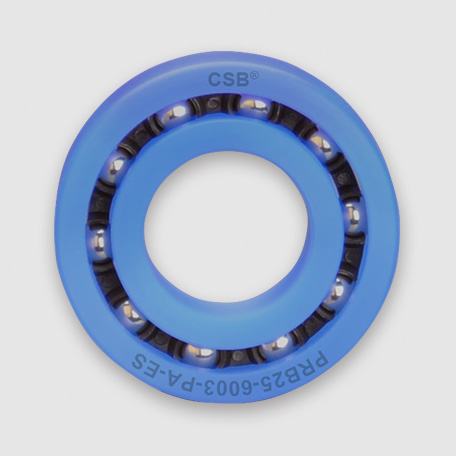

The standard material of inner and outer races: PA, Cage: PA , Balls: glass or stainless steel.

The working temperature range is -40~+100℃.


PRB25 Plastic ball bearings

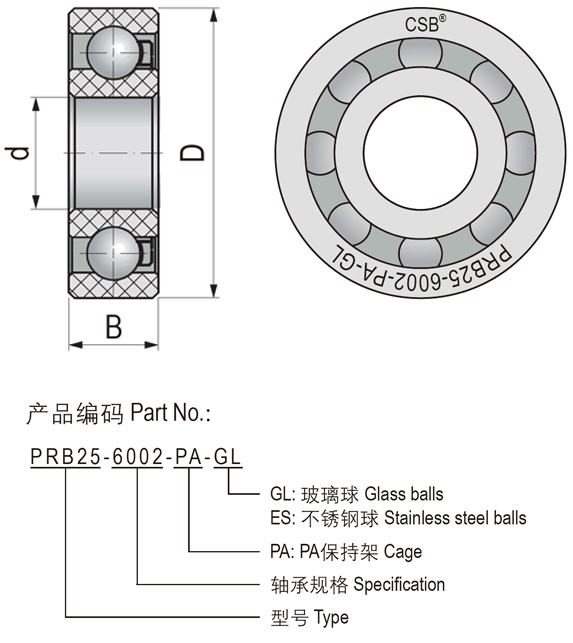

Dimensions
CSB-EPB® Plastic plain bearings
CSB-EPB® Plastic plain bearings

CSB-EPB® Plastic plain bearings use high-performance plastics as the raw material, and filled high-strength fibers and special solid lubricants by the polymer compound technology to improve the anti-wear resistance...

more
DURAPLAS® Semi-finished products
DURAPLAS® Semi-finished products

DURAPLAS® self-lubricated plastic semi-finished products available service for the customer special requirement of uncommon bearings. It is possible for the mold cost saving and improves the delivery time...

more

CSB-PRB® Plastic Ball Bearings Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
CSB-PRB® Plastic Ball Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

CSB-PRB® PRB25 Plastic ball bearings

Type PDF
Size 163KB
Time 06-2022
No. CSB/CAT.062E
download
