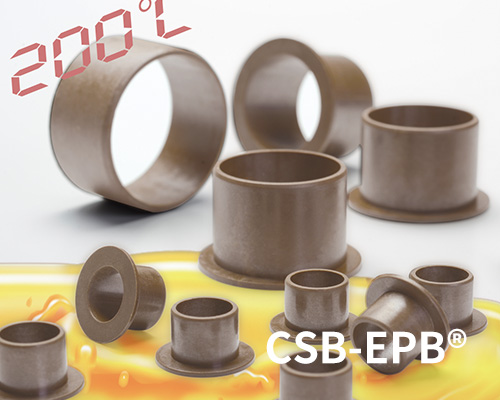

EPB24 Plastic plain bearings - CSB® Plastic Bearing Technology

Product properties

● Standard material for automotive industrial. Best and economic material for high temperature application. Excellent wear resistance is available in the vehicle fuels.

● Continuous working temperature: -40℃/+200℃

● High temperature and lower cost

● High wear resistance under fuel oil

● Good chemical resistance

● Suitable for humid environment

Material properties	Standard	Unit	CSB-EPB24
General properties
Color	-	-	Brown
Density	ISO1183	g/cm³	1.72
Max. moisture absorption, 50%RH	ISO62	%	0.1
Max. water absorption	ISO62	%	0.2
Coefficient of sliding friction(steel)	ITS025	µ	0.08-0.25
Max. PV value	ITS026	N/mm²×m/s	0.60
Mechanical properties
Flexural modulus	ISO178	MPa	10000
Flexural strength	ISO178	MPa	210
Max. static load	ITS027	MPa	110
Max. dynamic load	ITS028	MPa	58
Shore hardness	ISO868	D	81
Physical and thermal properties
Long-term application temperature	ITS029	℃	+200
Short-term application temperature	ITS029	℃	+240
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.24
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	5
Flammability	UL94	Class	V0
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹²

*ITS: CSB company's internal test standards. **Test temperatures are 23℃ unless otherwise stated.

Standard products

Sleeve bearing

Flange bearing

Thrust washer

EPB24 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Shop now

Dimensions

▊ PV value

The max PV value of the CSB-EPB24 plastic bearings is 0.6N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB24-1).

EPB24_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

CSB-EPB24 allows the Max static load of 110Mpa, The max compressive deformation rate under the max load is listed in Graph EPB24-1, The actual load capacity of bearing is slightly less than 110Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.0m/s) results into higher temperature (Tmax: 200℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB24-3 for such variation.

EPB24_02-Plastic plain bearings load.jpg EPB24_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

Graph EPB24-4 shows the friction factor of CSB-EPB24 is not obviously effected by the operation speed when the loading is stable and Graph EPB24-5 shows it will be decreasing along with the loading is increased from 0 to 20 Mpa when the operation speed is unchanged, furthermore the friction factor will not be changed when the loading reaches 20Mpa upward. The friction factor of CSB-EPB24 is increased along with the increasing of the shaft roughness. The recommended shaft roughness is Ra0.1 to Ra0.6.

CSB-EPB24	Dry	Grease	Oil	Water
Friction coef. μ	0.08~0.25	0.09	0.04	0.04

EPB24_04-Plastic plain bearings friction and speed.jpg EPB24_05-Plastic plain bearings friction and load.jpg EPB24_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

Graph EPB24-7 and Graph EPB24-8 tells that the CSB-EPB24 is very good for Hardened shaft and soft shaft and it features excellent both on hardened steel shaft and carbon steel shaft but the hardened chrome steel shaft is not good for CSB-EPB24 bearings. The wearing of CSB-EPB24 is better on oscillation operation than on rotation operation. The wearing will be increased when the loading is over 10Mpa.

EPB24_07-Plastic plain bearings wear and shaft materials.jpg EPB24_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

The Chemical Resistance of CSB-EPB24 is fairly good against most of Acid and Alkalis.

▊ Water absorption

The moisture absorption of CSB-EPB24 plastic plain bearings is 0.1% in standard atmosphere. The max. water absorption is 0.2% in water . These values are very low, CSB-EPB24 plastic palin bearings is very well suited for used in wet applications.

EPB24_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

Disintegration could be possible for the material CSB-EPB24 after long period of exposing under the UV ray and therefore the compressive strength will be reduced.

▊ Installation tolerances

CSB-EPB24 Tolerances after pressfit

Diameter [mm]	CSB-EPB24 F10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.006～+0.046	0～+0.010	0～-0.025
>3～6	+0.010～+0.058	0～+0.012	0～-0.030
>6～10	+0.013～+0.071	0～+0.015	0～-0.036
>10～18	+0.016～+0.086	0～+0.018	0～-0.043
>18～30	+0.020～+0.104	0～+0.021	0～-0.052
>30～50	+0.025～+0.125	0～+0.025	0～-0.062
>50～80	+0.030～+0.150	0～+0.030	0～-0.074
>80～120	+0.036～+0.176	0～+0.035	0～-0.087
>120～180	+0.043～+0.203	0～+0.040	0～-0.100

CSB-EPB24 Plastic Plain Bearings

Type PDF

Size 590KB

Time 09-2021

No. CSB/CAT.062E

download

1586

工程塑料轴承查找器 — CSB-EPB®

CSB-EPB® Plain bearings finder V2.1

view tools

▊CSB-EPB® Plastic Bearings Finder[V2.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

自润滑半成品查询器 — CSB-SFP®

CSB-SFP® Semi-finished Products Finder V2.0

view tools

▊CSB-SFP® Semi-finished Products Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the products must be tested again to verify whether it meets the actual use requirements.
▊CSB-SFP® Semi-finished Products Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

Medium	EPB24 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Conditionally resistant
Diluted alkalis	Resistant
Strong alkalis	Resistant

▊ CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

▊CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
