EPB3 Plastic plain bearings - CSB® Plastic Bearing Technology

Product properties

● Best for middle to high load applications. With the perfect combination of reinforced fibre and good lubrication feature, this material is suitbale to be used under the temperature of 130℃

● Continuous working temperature: -40℃/+130℃

● Suitable for medium and high load operation

● Maintenance-free dry operation

● Applicable for various shaft materials

● Good for rotation and oscillating operation

● Excellent dust resistance

Material properties	Standard	Unit	CSB-EPB3
General properties
Color	-	-	Dark grey
Density	ISO1183	g/cm³	1.46
Max. moisture absorption, 50%RH	ISO62	%	0.7
Max. water absorption	ISO62	%	4.0
Coefficient of sliding friction(steel)	ITS025	µ	0.08-0.18
Max. PV value	ITS026	N/mm²×m/s	0.45
Mechanical properties
Flexural modulus	ISO178	MPa	8500
Flexural strength	ISO178	MPa	210
Max. static load	ITS027	MPa	80
Max. dynamic load	ITS028	MPa	43
Shore hardness	ISO868	D	81
Physical and thermal properties
Long-term application temperature	ITS029	℃	+130
Short-term application temperature	ITS029	℃	+220
Lowest application temperature	ITS029	℃	-40
Thermal conductivity	ISO22007	W/m/K	0.24
Coefficient of thermal expansion	ISO11359	K^-1×10^-5	9
Flammability	UL94	Class	HB
Electrical properties
Volume resistance	IEC60093	Ω·cm	>10¹³
Surface resistance	IEC60093	Ω	>10¹¹

*ITS: CSB company's internal test standards.

**Test temperatures are 23℃ unless otherwise stated.

Standard products

Sleeve bearing

Flange bearing

Thrust washer

EPB3 Plastic plain bearings

Part no.:

d1 [mm]：

d2 [mm]：

L_h13 [mm]：

d3_d13 [mm]：

T [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2-max. [mm]：

d2-min. [mm]：

T max. tolerance [mm]：

T min. tolerance [mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wsk]：

Shop now

Dimensions

▊ PV value

The max PV value of the CSB-EPB3 plastic bearings is 0.45N/mm²×m/s which determines the load capacity of bearing is inversely proportional to the speed. Please refer to the chart for more detailed information (Graph EPB3-1).

EPB3_01-Plastic plain bearings PV value.jpg

▊ Load, speed and temperature

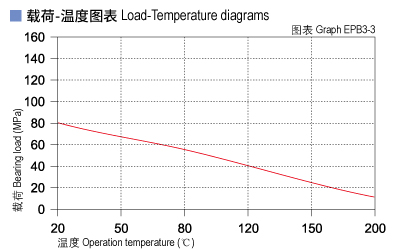

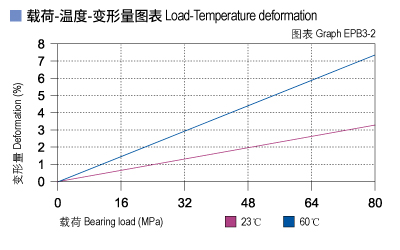

CSB-EPB3 allows the Max static load of 80Mpa, The max compressive deformation rate under the max load is listed in Graph EPB3-2, The actual load capacity of bearing is slightly less than 80Mpa, The bearing load is variable against the speed and temperature, Fast speed (Vmax: 1.0m/s) results into higher temperature (Tmax: 130℃) which decreases the load capacity of the bearing. Please refer to the Graph EPB3-3 for such variation.

EPB3_02-Plastic plain bearings load.jpg EPB3_03-Plastic plain bearings load and tepmerature.jpg

▊ Friction factor, wear and shaft material

▊ Friction factor

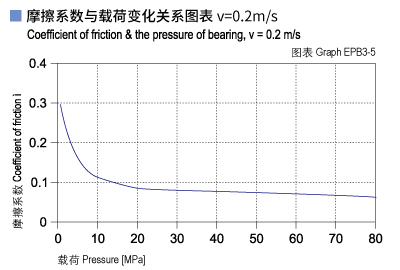

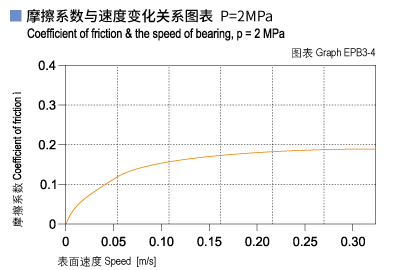

The friction factor of the sliding bearings is relative to the bearing load, operation speed and the roughness of the shaft material.CSB-EPB3 Bearing Friction factor decreased along with the increasing of the loading (See Graph EPB3-5) and increased along with the increasing of the operation speed(See Graph EPB3-4). The above feature induces the CSB-EPB3 material is applicable for the high load and low speed operation while too smooth and too rough surface may result into the increasing of friction factor. The recommended surface roughness of CSB-EPB3 is Ra0.5~Ra0.8 (See Graph EPB3-6).

CSB-EPB3	Dry	Grease	Oil	Water
Friction coef. μ	0.08~0.18	0.09	0.04	0.04

EPB3_04-Plastic plain bearings friction and speed.jpg EPB3_05-Plastic plain bearings friction and load.jpg EPB3_06-Plastic plain bearings friction and surface roughness of shaft.jpg

▊ Wearing and shaft material

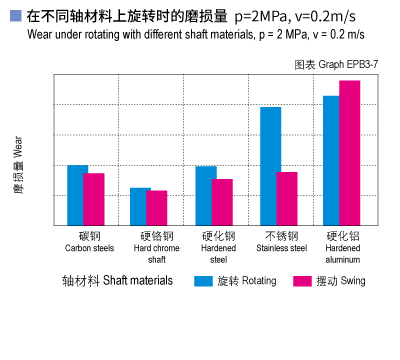

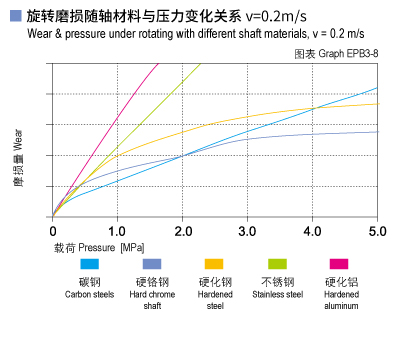

Test of the bearing against various shaft materials shows that the material CSB-EPB3 features the best performance where the shaft material is carbon steel and hard chrome steel under low loading. (See Graph EPB3-7 and Graph EPB3-8). Therefore, the higher the load is, the more critical the hardness of the shaft will have to be. The softer shaft will be worn off sooner and as a result, the bearing wearing will be increased. But when the loading is increased over 2Mpa, the wearing of the bearing will be better along with the increasing of the shaft hardness.

Refer to Graph EPB3-7 It shows that the material CSB-EPB3 is better under the oscillation operation comparing with the rotation operation. Under the same condition, the wearing feature of the oscillation operation is much better than that of the rotation operation. This feature is sharply improved under higher loading.

EPB3_07-Plastic plain bearings wear and shaft materials.jpg EPB3_08-Plastic plain bearings wear and load.jpg

▊ Chemical resistance

CSB-EPB3 is good at chemical resistance against weak acidic medium and various kinds of lubricants.

▊ Water absorption

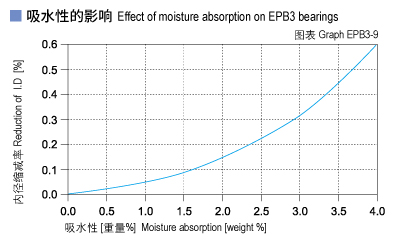

The moisture absorption of CSB-EPB3 plastic plain bearings is 0.7% in standard atmosphere. The max. water absorption is 4.0% in water. The application environment has to be considered due to the high water absorbtion properties.

EPB3_09-Plastic plain bearings moisture absorption.jpg

▊ UV resistance

CSB-EPB3 can maintain its color unchanged when it is exposed into the UV ray. The material performance stays stable.

▊ Installation tolerances

CSB-EPB3 Tolerances after pressfit

Diameter [mm]	CSB-EPB3 E10 [mm]	Housing H7 [mm]	Shaft h9 [mm]
>0～3	+0.014～+0.054	0～+0.010	0～-0.025
>3～6	+0.020～+0.068	0～+0.012	0～-0.030
>6～10	+0.025～+0.083	0～+0.015	0～-0.036
>10～18	+0.032～+0.102	0～+0.018	0～-0.043
>18～30	+0.040～+0.124	0～+0.021	0～-0.052
>30～50	+0.050～+0.150	0～+0.025	0～-0.062
>50～80	+0.060～+0.180	0～+0.030	0～-0.074
>80～120	+0.072～+0.212	0～+0.035	0～-0.087
>120～180	+0.085～+0.245	0～+0.040	0～-0.100

CSB-EPB3 Plastic Plain Bearings

Type PDF

Size 588KB

Time 09-2021

No. CSB/CAT.062E

download

1862

工程塑料轴承查找器 — CSB-EPB®

CSB-EPB® Plain bearings finder V2.1

view tools

▊CSB-EPB® Plastic Bearings Finder[V2.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-EPB® Plastic Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

自润滑半成品查询器 — CSB-SFP®

CSB-SFP® Semi-finished Products Finder V2.0

view tools

▊CSB-SFP® Semi-finished Products Finder[V2.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations material data by entering parameters such as bearing load, speed, and temperature, and finally output material adaptation data.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the products must be tested again to verify whether it meets the actual use requirements.
▊CSB-SFP® Semi-finished Products Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.

Medium	EPB3 bearings resistance
Alcohol	Resistant
Hydrocarbons	Resistant
Greases. oils	Resistant
Fuels	Resistant
Diluted acids	Conditionally resistant
Strong acids	Not resistant
Diluted alkalis	Resistant
Strong alkalis	Conditionally resistant

▊ CSB® Bearing Material Chemical Resistance

Please select bearing material and medium...

▊CSB® bearing material chemical resistance data is a comparison test result of the CSB chemistry laboratory using laboratory specimens or similar chemicals at room temperature 23 ℃, without considering the impact of other temperatures and chemical medium mixtures on the chemical resistance of CSB® bearing materials ; Therefore, this data can only act as a reference. CSB® recommends that the chemical resistance of actual parts should be tested under application conditions and verify the suitability of the bearings.
