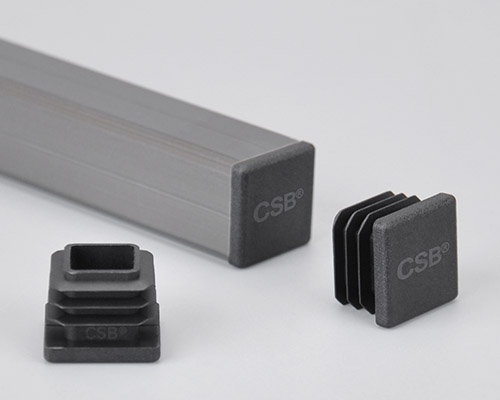

QAS-EC01 Endcaps for square shafts

● Multi-damping plate design blocks cap escape

● Made of plastic and corrosion-resistant

● Press-fit design for easy installation

Part no.:

Q [mm]：

T [mm]：

L [mm]：

*Lead time [wks]：

Shop now

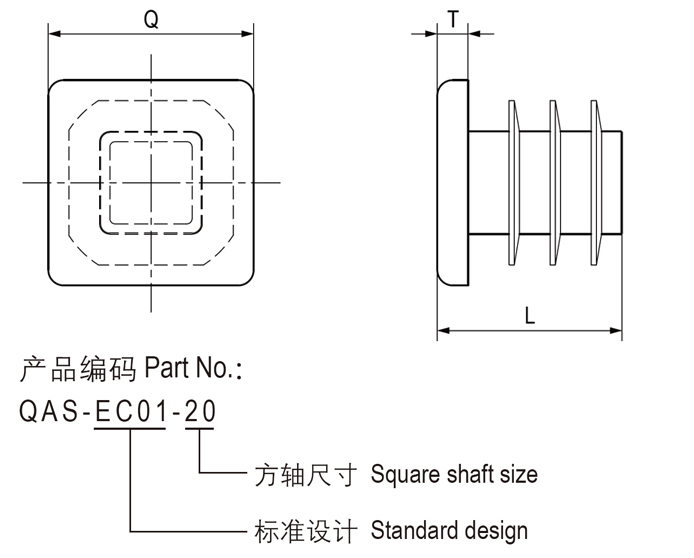

Dimensions

QAS Square linear shafts

● Torque-resistant square design

● Aluminum, hard anodized surface

● Suitable for unsupported applications

● Durable and light

Type PDF

Size 122KB

Time 03-2022

No. CSB/CAT.062E

download
