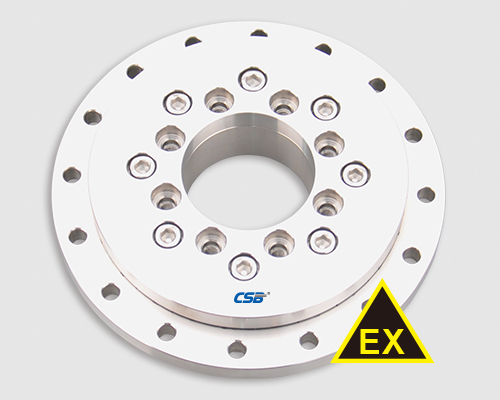

SRB-03-ESD Slewing ring bearings

Product properties

● Completely maintenance-free

● Standard sliding pads made from ESD material MN9

● Easy to install with replaceable sliding pads

● Inner and outer rings made of stainless steel rings

● For very high load applications

● Operation temperature -40℃/+120℃

Item		Unit	SRB-03 -20-ESD	SRB-03 -30-ESD	SRB-03 -50-ESD	SRB-03 -60-ESD	SRB-03 -100-ESD	SRB-03 -150-ESD	SRB-03 -200-ESD
Weight		kg	0.2	0.4	1.0	1.1	1.3	2.2	3.2
Max. Rotation Speed		r/min	300	250	200	180	150	100	80
Max. Static Load	Axial	N	15000	27000	40000	50000	55000	80000	100000
Max. Static Load	Radial	N	2300	5000	8000	10000	16000	25000	45000
Max. Dynamic Load	Axial	N	4000	7000	10000	15000	16000	25000	30000
Max. Dynamic Load	Radial	N	600	1500	2500	3000	5000	8000	10000
Max. Permitted Overturning		Nm	100	200	600	800	1500	2000	3800

Standard products

SRB-03-ESD Slewing ring bearings

Part no.:

d [mm]：

d1 [mm]：

d2 ±0.2 [mm]：

D [mm]：

D1 [mm]：

H [mm]：

h [mm]：

T1 [mm]*[°]：

T2 [mm]*[°]：

S1 [mm]：

S2 [mm]：

*Lead time [wks]：

Shop now

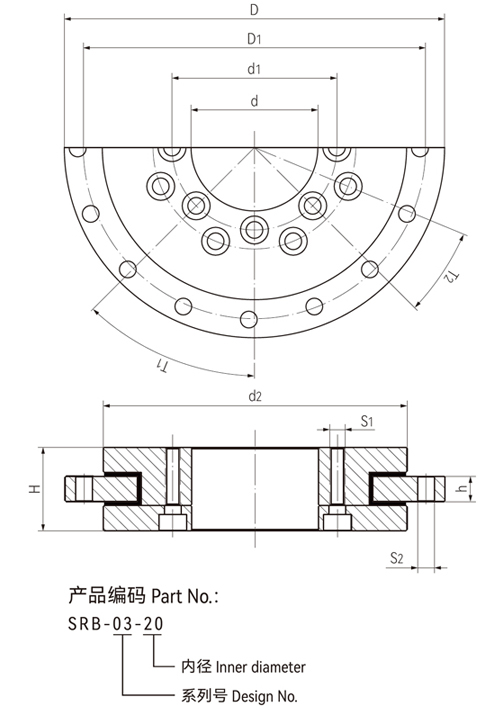

Dimensions

Downloads

CSB-SRB®SRB01 Slewing ring bearings, high speed

Type PDF

Size 166KB

Time 11-2023

No. CSB/CAT.062

download
