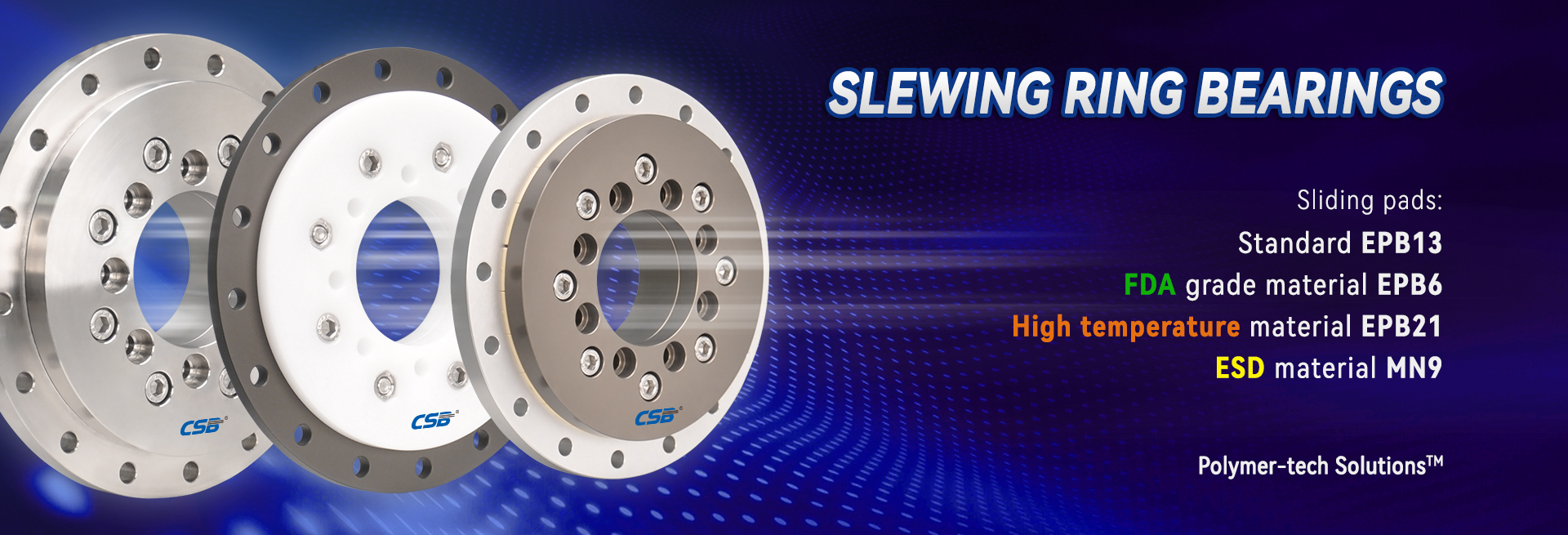

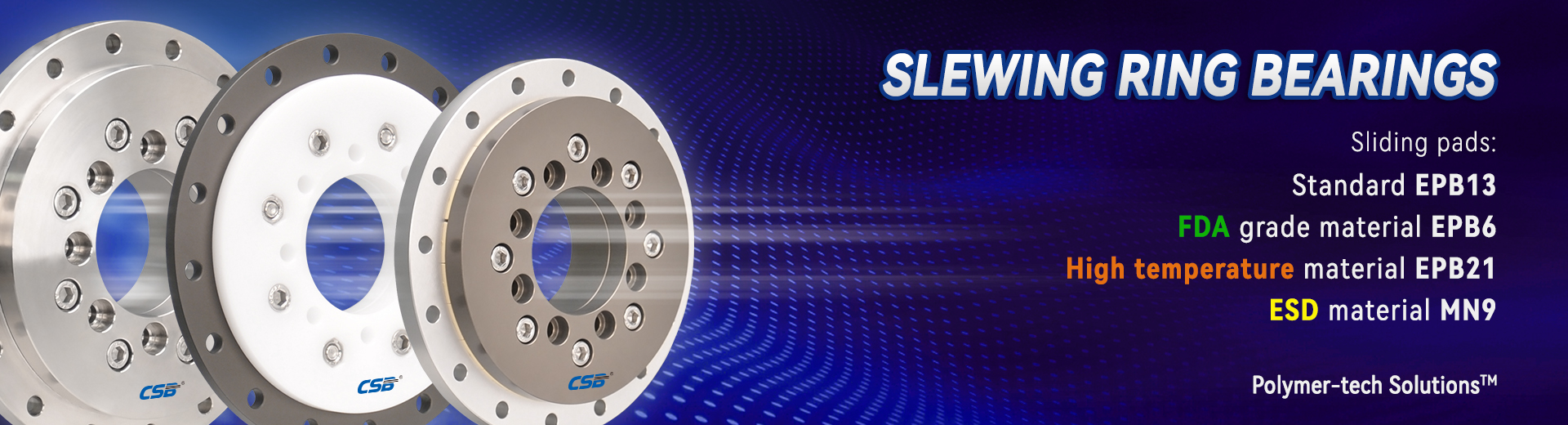

CSB-SRB® Slewing ring bearings

Product properties

● Sliding elements are made of wear -resistant composite materials
● Low noise, self -lubricating
● A variety of designs meet high -speed or heavy load applications
● Application temperature: ±200℃
● Easily Installation, free of Maintenance


SRB-01 Slewing ring bearings
SRB-01 Slewing ring bearings

● For high speed applications

● Standard sliding pads made from TEFPLAS® B,

    available ESD material TEFPLAS® C

● Cleanroom applications possible


more
SRB-02 Slewing ring bearings
SRB-02 Slewing ring bearings

● Extremely light weight slewing ring

● Compact dimensions design

● Inner ring made from MN70

● Low-cost version


more
SRB-03 Slewing ring bearings
SRB-03 Slewing ring bearings

● Standard sliding pads made from EPB13,

    available FDA grade materialEPB6、

    high temperature material EPB21、

    ESD material MN9

more
SRB-03-HTD Slewing ring bearings
SRB-03-HTD Slewing ring bearings

● Standard sliding pads made from EPB13, available high temperature material EPB21

● HTD standard tooth type for the outer ring

● For very high load applications

more
EPB13 Plastic plain bearings
EPB13 Plastic plain bearings

Low friction and high wear resistance. It could maintain a good stable wear resistance and friction factor for the rotation, linear and oscilation movement. It has no critical hardness requirement to the shaft.

more

CSB-SRB® Slewing Ring Bearings

Type PDF
Size 208KB
Time 11-2023
No. CSB/CAT.062
download
