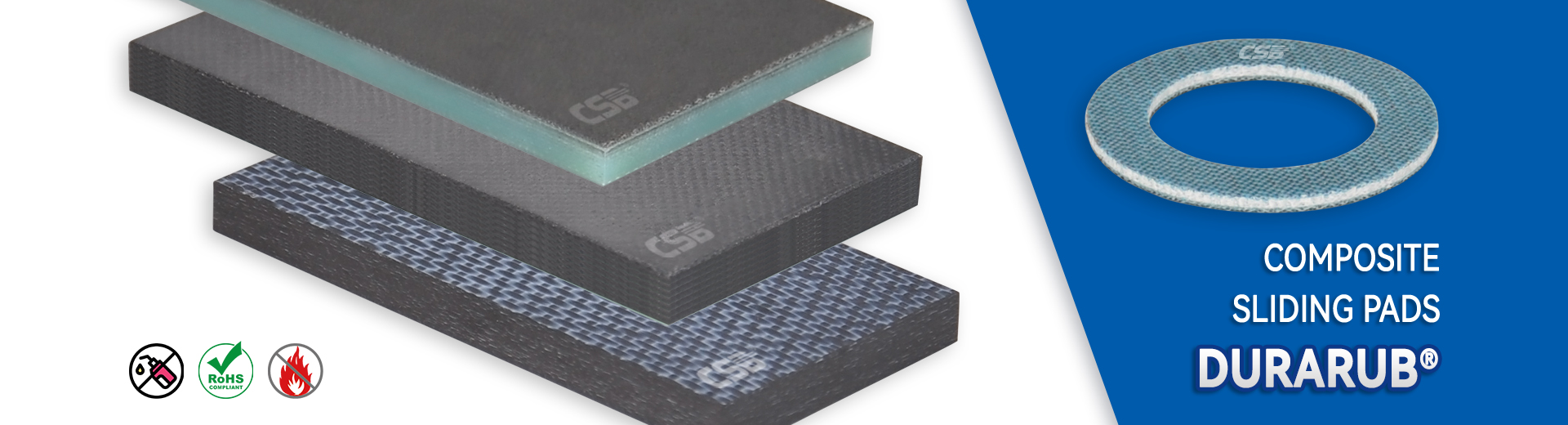

DURARUB® Composite anti-wear pads

Product properties

High-performance wear-resistant materials serve as sliding layers combined with high-strength fiber-reinforced load-bearing layers; DURARUB® materials are suitable for applications with consistently high static and dynamic loads, relatively low sliding speeds, and they are also suitable for applications where conventional lubrication is not possible or prohibited. DURARUB® materials enable maintenance-free operation of machinery and equipment for customers.

Material properties	Standard	Unit	DURARUB® 11	DURARUB® 12	DURARUB® 21	DURARUB® 22	DURARUB® 33	DURARUB® 50
Density	ISO1183	g/cm³	1.95	1.90	2.10	2.10	1.80	1.56
Max. PV (dry)	ITS026	N/mm²×m/s	1.2	1.2	0.7	0.7	1.2	1.5
Coefficient of friction	ITS025	µ	0.03-0.12	0.05-0.15	0.10-0.25	0.10-0.25	0.05-0.20	0.10-0.25
Application temperature	ITS029	℃	-60/+120	-60/+120	-60/+120	-60/+120	-60/+120	-100/+250
Max. Speed	ITS032	m/s	0.15	0.15	0.20	0.20	0.15	0.20
Max. static load	ITS027	MPa	150	150	150	150	100	600
Max. dynamic load	ITS028	MPa	75	75	10	10	60	110
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	13	13	13	13	13	13
Shore hardness	ISO868	D	90	85	80	80	85	95
Shaft hardness	-	HB	≥180	≥180	≥180	≥180	≥180	≥400
Shaft surface finish	-	Ra	0.2-0.6	0.2-0.6	0.2-0.6	0.2-0.6	0.2-0.6	0.2-0.6

DURARUB®11 Sliding plates

● For dry applications
● High load capability
● Low friction coefficient
● Continuous working temperature: -60/+120℃

DURARUB®12 Sliding washers

● For dry applications
● High load capability
● Low friction coefficient
● Continuous working temperature: -60/+120℃

DURARUB®21 Sliding plates

● For dry applications
● Available hardened surface aluminum shafts
● Low starting friction force
● Continuous working temperature: -60/+120℃

DURARUB®22 Sliding washers

● For dry applications
● Available hardened surface aluminum shafts
● Low starting friction force
● Continuous working temperature: -60/+120℃

DURARUB®33 Sliding plates

● For dry, oil, grease or underwater applications
● Fluorine and silicon free
● Excellent dimensional stability
● Sliding layer machined available

DURARUB®50 Sliding plates

● For dry, oil, grease or underwater applications
● Fluorine and silicon free
● Excellent dimensional stability
● Sliding layer machined available

Downloads

Type PDF

Size 277KB

Time 04-2024

No. CSB/CAT.064

download

451

+86-400-6633-096

Online Tools

Product News

Customer Services

CSB® More products

CSB-EPB® Plastic plain bearings

CSB-EPB® Plastic plain bearings use high-performance plastics as the raw material, and filled high-strength fibers and special solid lubricants by the polymer compound technology to improve the anti-wear resistance...

CSB-LIN® Plastic linear bearings

CSB-LIN® maintenance free plastic linear bearings. Low noise operation is suitable for continuously applications under the extremely dusty environment. It is washable by the clean detergent of the food machine …

CSB-BAL® Plastic spherical bearings

CSB-BAL® plastic spherical bearing for self-aligning solution. The spherical ball is made of wear-resistant composite material and the housing material is made of fiber-reinforced high-strength composite material....

CSB-PRB® Plastic ball bearings

CSB-PRB® plastic ball bearings are made of high-performance plastics. The balls are Stainless steel,Glass, Ceramics materials. Perfect self-lubiricating feature and anti-corrosion feature…

CSB-LIN® Guide rails & Screw nuts

CSB-LIN® Linear guide rails & Screw nuts designed with the maintenance-free sliding conponents. All sliding parts are made of wear-resistant material CSB-EPB®. resistant to dust, anti-corrosion and low noise.

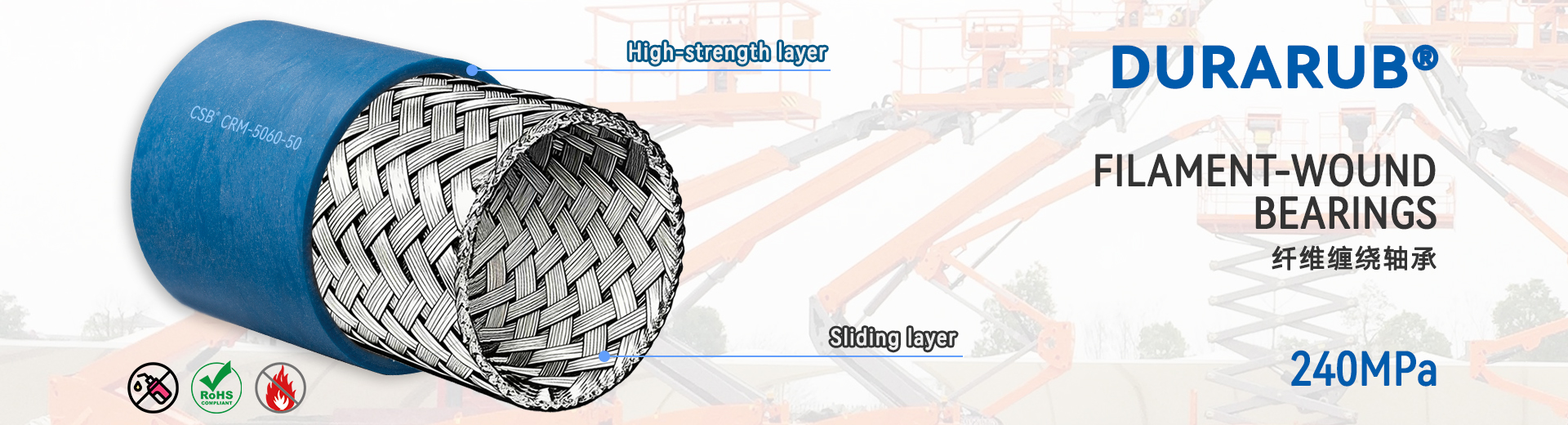

CSB-FWB® Filament-wound bearings
