DURARUB®11 Sliding plates - CSB® Plastic Bearing Technology

Product properties

● For dry applications
● High load capability
● Low friction coefficient
● Good chemical resistance
● Continuous working temperature: -60/+120℃

Material properties	Standard	Unit	DR11
Density	ISO1183	g/cm³	1.90
Max. water absorption	ISO62	%	0.1
Max. PV value	ITS026	N/mm²×m/s	1.2
Coefficient of friction	ITS025	µ	0.05-0.20
Long-term application temperature	ITS029	℃	+120
Short-term application temperature	ITS029	℃	+160
Lowest application temperature	ITS029	℃	-60
Max. Speed	ITS032	m/s	0.15
Compressive strength	ITS033	MPa	200
Max. static load	ITS027	MPa	150
Max. dynamic load	ITS028	MPa	75
Coefficient of thermal expansion	ISO11359	10^-6×K^-1	13
Mating part hardness	-	HB	≥180
Mating part surface finish	-	Ra	0.2-0.8

Standard products

DURARUB®11 Sliding plates

Part no.:

T ±0.15 Thickness [mm]：

W Max. width [mm]：

L Max. length [mm]：

*Lead time [wks]：

Shop now

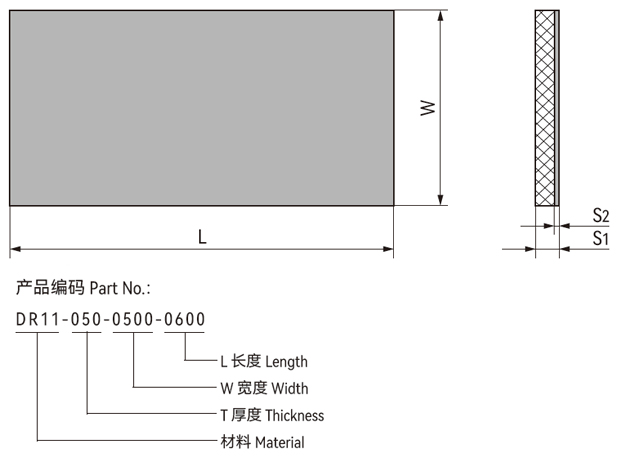

Dimensions

▊Material structure

DR11 sliding plates consist of two layers combining the excellent bearing properties of low-friction sliding layer with the high strength of a load carrying glass-fibre filled backing.

The silding layer consists of an epoxy resin filled with solid lubricants and high performance weaves, designed to ensure good tribological properties.

▊Installation with M8 countersunk screws
