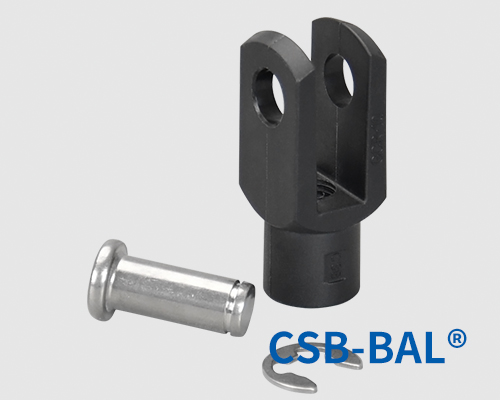

Clevis Joints with pin and circlip - CSB® Plastic Bearing Technology

Product properties

● Material CSB®M163
● High tensile force
● Absolute corrosion-resistant
● Noise free
● Very lightweight
● With pin and circlip
● Can be used in combination with plastic rod ends

Standard products

Clevis Joints with pin and circlip

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

G [mm]：

A1 [mm]：

A2 [mm]：

B1 [mm]：

I1 [mm]：

I2 [mm]：

H1 [mm]：

*Lead time [wks]：

Shop now

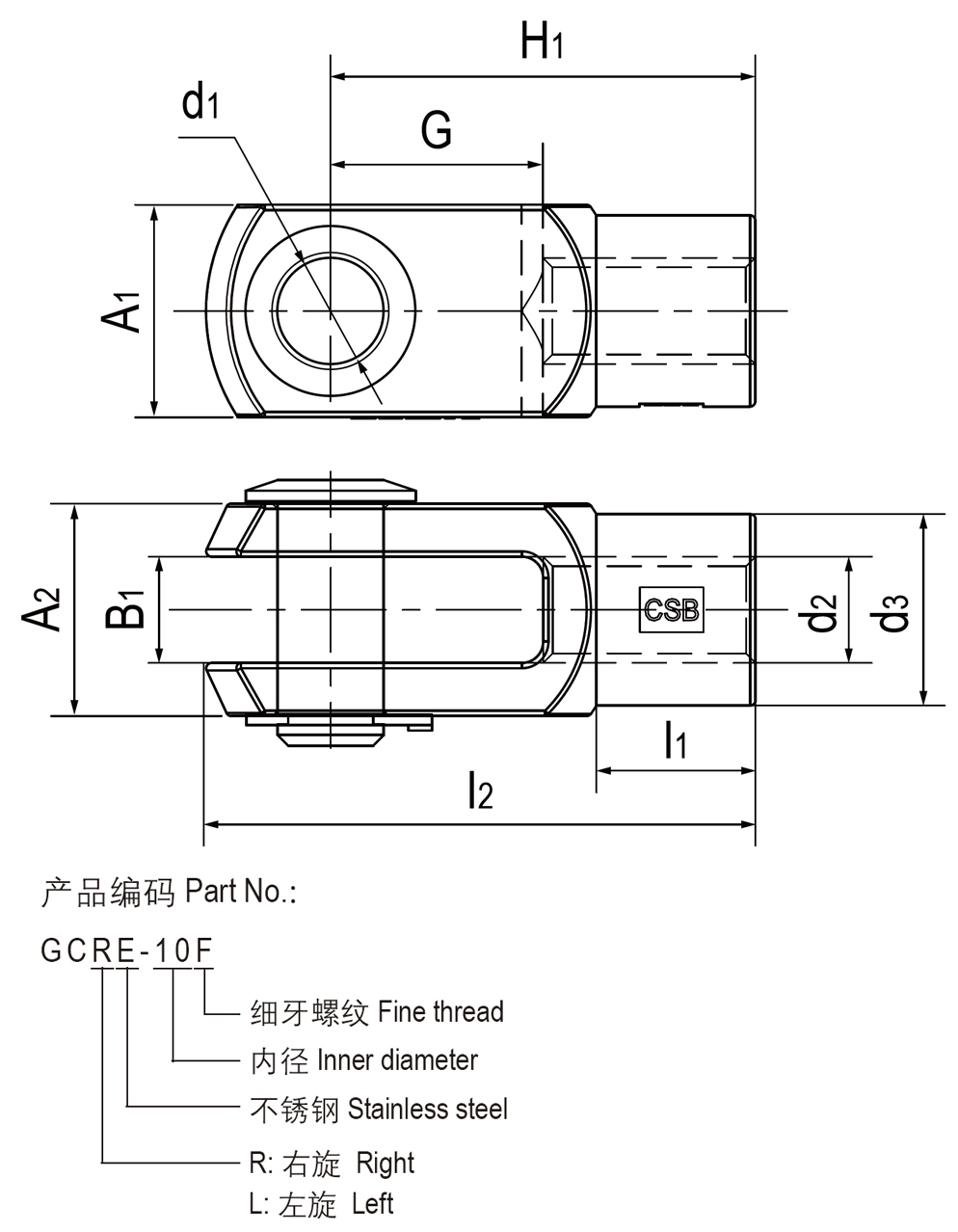

Dimensions

▊GC Clevis Joints with pin and circlip load capacity

Part No.	Max. static tensile strength		Max. radial static load		Max. tightening torque	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GCRE-06	1400	700	300	100	1.5	7.2
GCRE-08	2700	1350	650	325	5	16.7
GCRE-10	4700	2350	800	400	15	33.1
GCRE-12	5700	2850	900	450	20	52.4
GCRE-10F	4700	2350	800	400	6	33.1
GCRE-12F	5700	2850	900	450	15	52.4
GCLE-06	1400	700	300	100	1.5	7.2
GCLE-08	2700	1350	650	325	5	16.7
GCLE-10	4700	2350	800	400	15	33.1
GCLE-12	5700	2850	900	450	20	52.4
GCLE-10F	4700	2350	800	400	6	33.1
GCLE-12F	5700	2850	900	450	15	52.4

GOB Rod end bearings

● External thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors

GIB Rod end bearings

● Internal thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors

CSB-BAL® Clevis Joints with pin and circlip

Type PDF

Size 90KB

Time 09-2021

No. CSB/CAT.052

download
