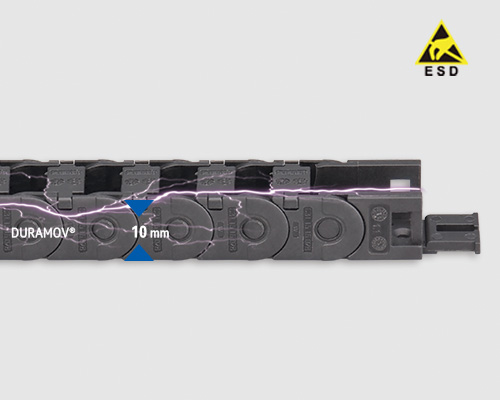

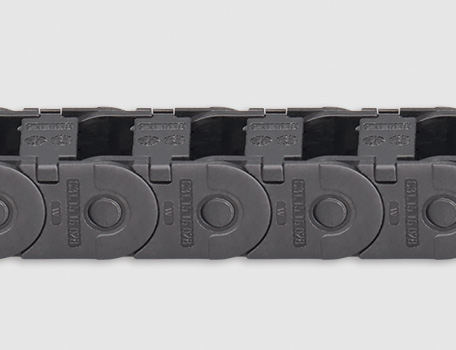

C31E.10 ESD openable micro cable carriers - CSB® Plastic Bearing Technology

Product properties

C31E.10 ESD micro cable carriers are openable along the outer radius or inner radius, strong and multi-opening method design, Suitable for highly dynamic applications and cables filled quickly. C31E.10 ESD micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Long-term application temperature：-40/+120℃
● Inner height：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Standard products

C31E.10 ESD openable micro cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

*Lead time [wks]：

Shop now

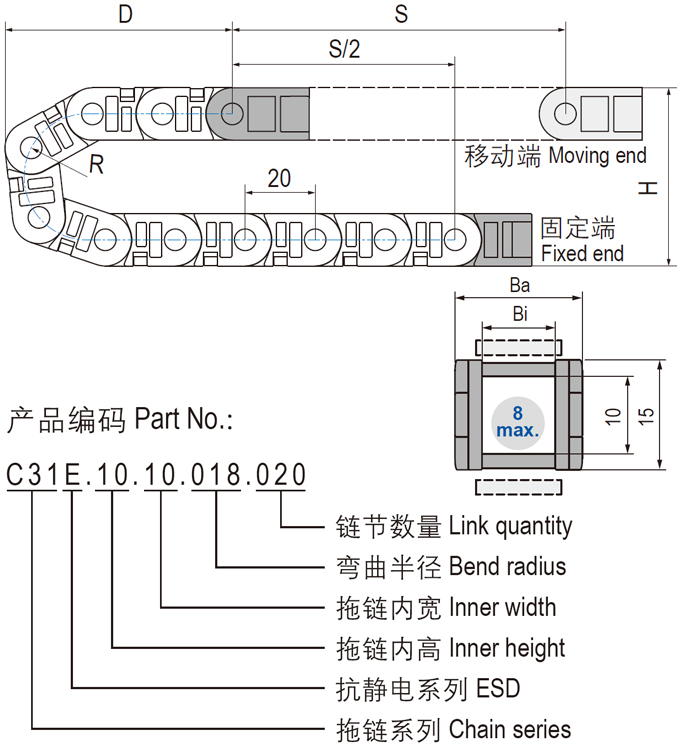

Dimensions

▊C31E.10 ESD micro cable carriers, openable along one side

C31E.10 ESD openable micro cable chains

▊Product features

● Small pitch for low-noise, smooth running

● Two-pieces design, openable along the outer radius or inner radius

● Very lightweight, low price smallest inner heights and bend radius

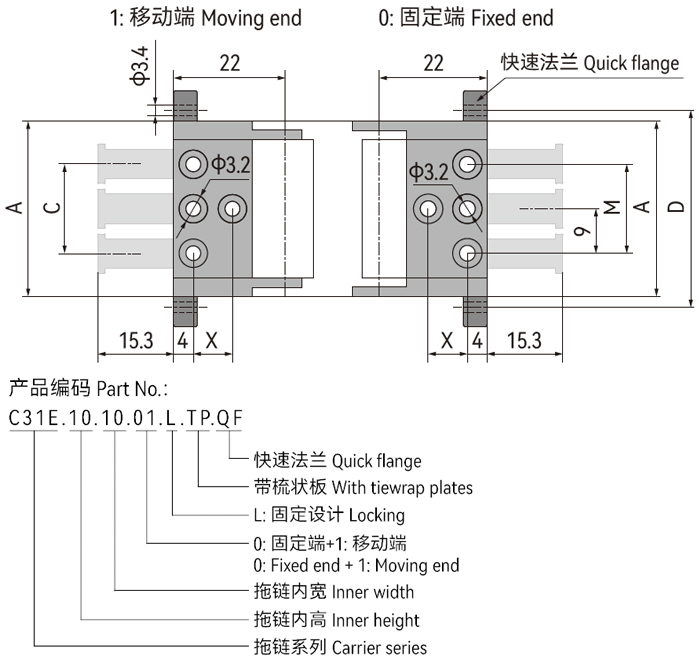

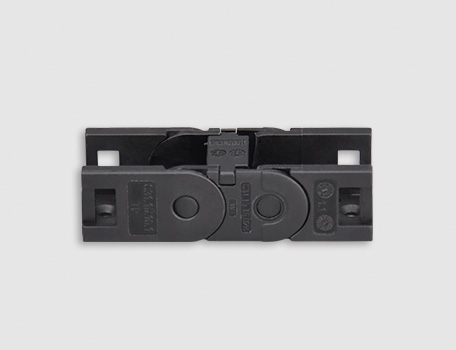

▊Mounting bracket dimensions

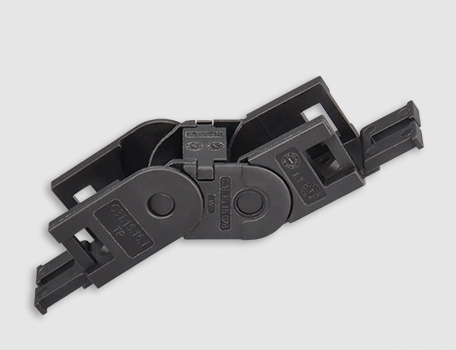

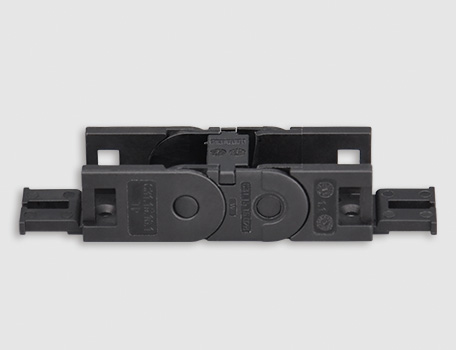

***Optional Quick Flange for fixing the cable carriers on the length direction.

Without tiewrap plates （Locking）	With tiewrap plates （Locking）	Without tiewrap plates （Pivoting）	With tiewrap plates （Pivoting）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	C [mm]	*D [mm]	Number of teeth [pcs]
C31E.10.10.01.L	C31E.10.10.01.L.TP	C31E.10.10.01.P	C31E.10.10.01.P.TP	10	17.4	8	/	/	23	1
C31E.10.16.01.L	C31E.10.16.01.L.TP	C31E.10.16.01.P	C31E.10.16.01.P.TP	16	23.4	8	/	9	29	2
C31E.10.20.01.L	C31E.10.20.01.L.TP	C31E.10.20.01.P	C31E.10.20.01.P.TP	20	27.4	8	/	9	33	2
C31E.10.30.01.L	C31E.10.30.01.L.TP	C31E.10.30.01.P	C31E.10.30.01.P.TP	30	37.4	/	22	18	43	3

▊Installation dimensions

Unsupported length	≤ 0.7m	Speed / acceleration FL_G	≤ 3 [m/s] / 8 [m/s² ]
Sliding length	Inapplicable	Speed / acceleration FL_B	≤ 2 [m/s] / 4 [m/s² ]
Vertical hanging	≤ 5m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 0.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 0.5m	Flammability Class	UL94 HB

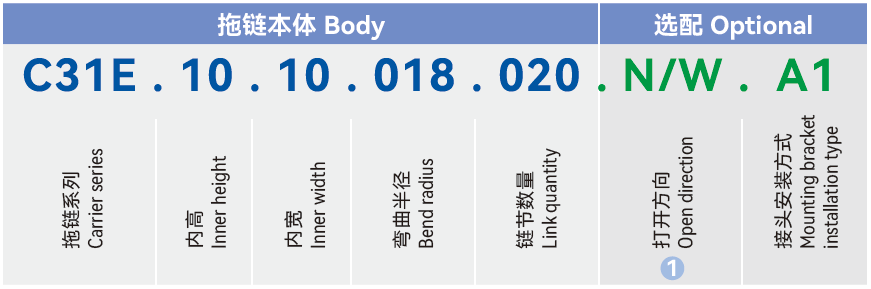

▊Order code for pre-assembled cable carriers


▊ Installation

▊Installation dimensions

Openable micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	018	028	038
H	51	71	91
D	56	66	76
K	100	130	160

*The required clearance height：H_F=H+10mm（Fill weight 0.75kg/m)

▊Mounting bracket installation optional

Openable micro cable chains mounting bracket installation optional

*C31E.10 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

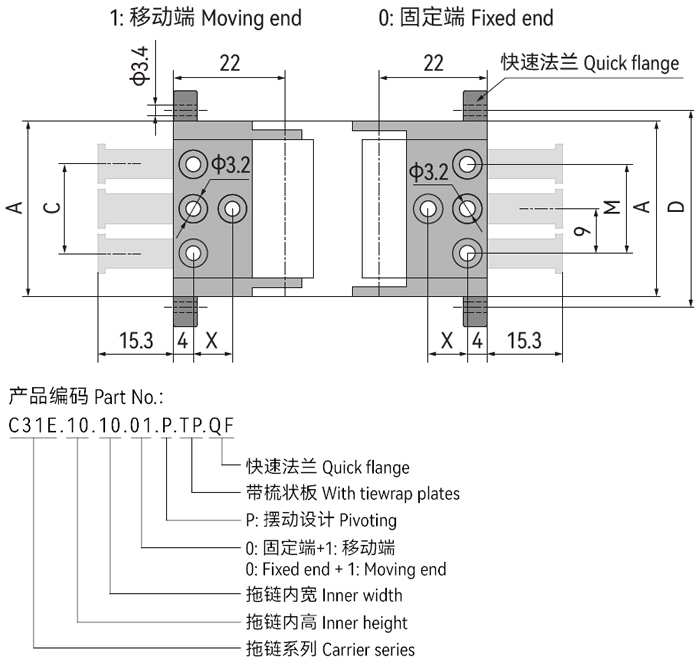

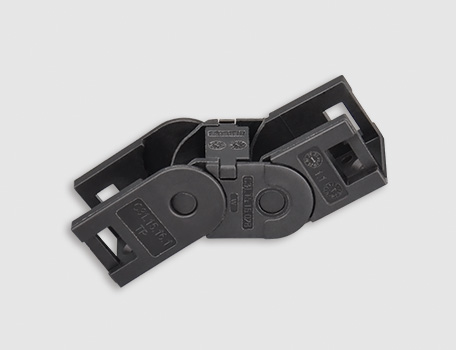

▊C31E.10.Bi.01.P

Openable micro cable chains special optional

*For unsupported and gliding applications
