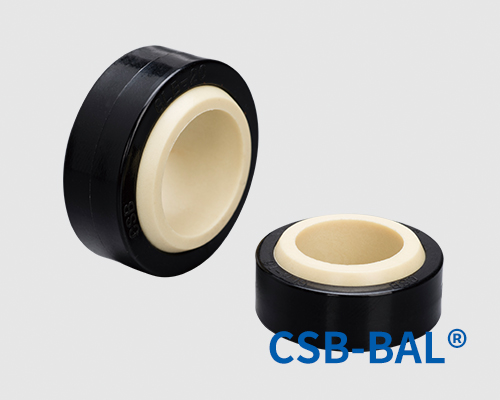

GLB Plastic spherical bearings - CSB® Plastic Bearing Technology

Product properties

The housing is made of high strength plastic M163, with standard BAL self-lubricated balls
● Maintenance free and self-lubricated
● Self-compensation for the installation deviation
● Impact resistance and silent operation
● Dust resistance with light weight

Standard products

GLB Plastic spherical bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

B [mm]：

C [mm]：

f [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Shop now

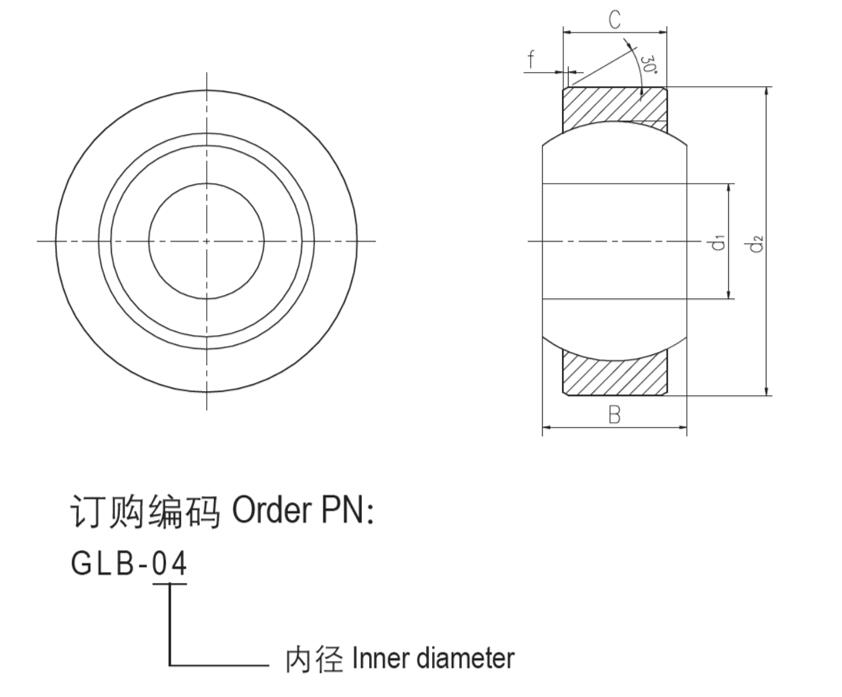

Dimensions

▊GLB Plastic spherical bearings load capacity

Part No.	Max. radial static load	Max. axle static load	重量
Part No.	[N]	[N]	[g]
GLB-04	600	50	0.4
GLB-05	1000	130	0.8
GLB-06	1200	150	0.9
GLB-08	1800	175	1.2
GLB-10	2500	400	1.9
GLB-12	3800	650	2.8
GLB-15	5500	1000	6.9
GLB-16	6000	1150	9.0
GLB-20	9000	1400	16.3
GLB-25	14000	2900	29
GLB-30	17000	4000	37.4

BAL Plastic spherical balls

● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight

CSB®GLB Plastic spherical bearings

Type PDF

Size 122KB

Time 09-2021

No. CSB/CAT.062E

download
