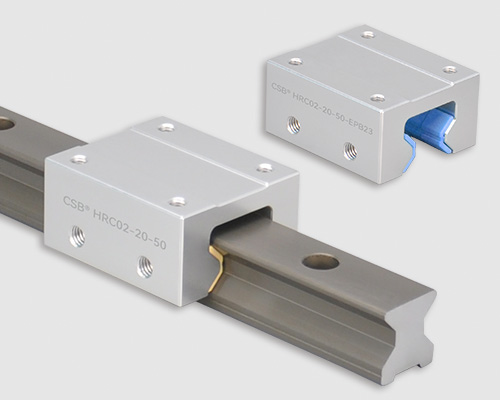

HRC02 Guide rail carriages - CSB® Plastic Bearing Technology

Product properties

● Fitted standard liners EPB13, -50/+90℃

avaliable FDA grade and high anti-wear EPB23, -100/+180℃

● Maintenance-free, dry-running

● Fast assembly and light weight

● For HR linear guide rails

● Resistant dust

● Quiet operation

Standard products

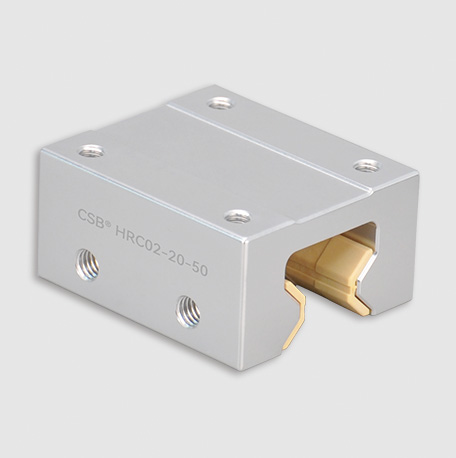

Standard liners: EPB13

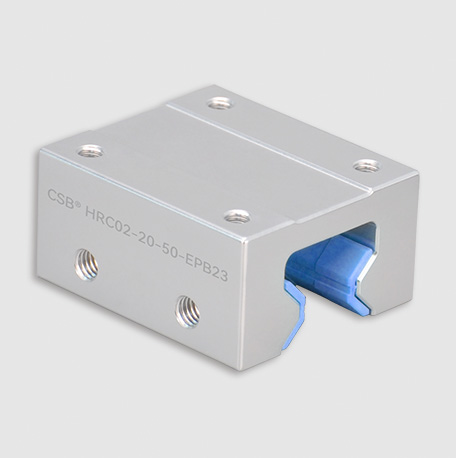

FDA grade: EPB23

HRC02 Guide rail carriages

Part no.:

H [mm]：

H1 [mm]：

N [mm]：

B [mm]：

W [mm]：

L [mm]：

C [mm]：

K [mm]：

*Lead time [wks]：

Shop now

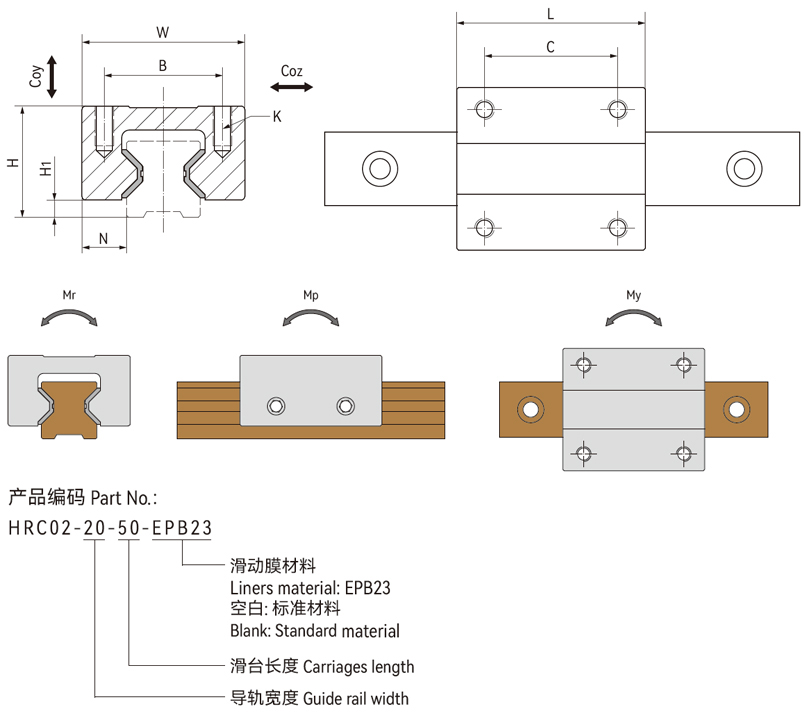

Dimensions

▊HRC02 Guide rail carriages load capacity

Part No.	Max. static load Coy+=Coy-=Coz+=Coz-	Static load[N·M]			Weight
Part No.	[N]	Mr	Mp	My	[g]
HRC02-20-50	9200	70	110	110	100
HRC02-20-65	9200	70	180	180	136
HRC02-20-50-EPB23	15000	120	190	190	100
HRC02-20-65-EPB23	15000	120	310	310	136

▊Eccentric forces

● Maximum 2:1 ratio

● 1x = bearing separation on same shaft

● 2x = distance from shaft to load or force

CSB-LIN®直线轴承安装法则

● CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !

This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.

There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.

● NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.

● If you have any questions on design and/or assembly, please contact our application engineers.
