LIN-01 Plastic linear bearings-MR4 - CSB® Plastic Bearing Technology

Product properties

● Made of material MR4
● Easy assembly by hand
● Axial secured by circlips
● Reduced bearing clearance
● Maintenance-free and low noise
● Resistant to dirt and dust
● Low cost
● Operation temperature -20℃/+60℃

Standard products

LIN-01 Plastic linear bearings-MR4

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

B h10[mm]：

B1 H10[mm]：

dn H10[mm]：

s H10[mm]：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Shop now

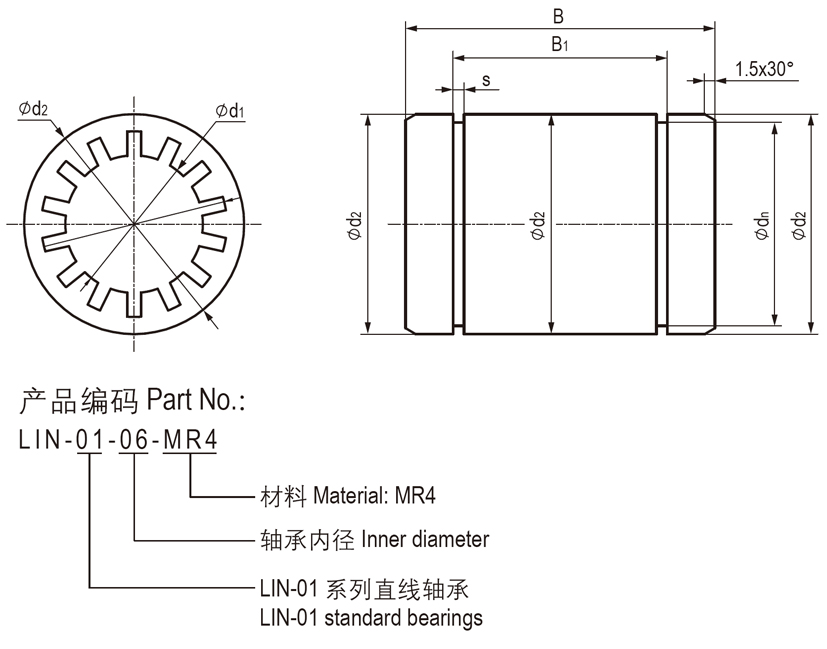

Dimensions

▊LIN-01-MR4 Plastic linear bearings load capacity

Part No.	Dynamic Load P=2.5MPa	Static Load P=17.5MPa	Weight
Part No.	F max. [N]	F max. [N]	[g]
LIN-01-06-MR4	200	1400	2
LIN-01-08-MR4	250	1750	4
LIN-01-10-MR4	263	2538	7
LIN-01-12-MR4	480	3360	9
LIN-01-16-MR4	720	5040	13
LIN-01-20-MR4	1125	7875	24
LIN-01-25-MR4	1813	12688	47
LIN-01-30-MR4	2550	17850	72

▊CSB-LIN® Linear bearing eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

塑料直线轴承查找器 — CSB-LIN®

Linear Bearings Finder

view tools

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
