C21.15 Openable micro cable carriers - CSB® Plastic Bearing Technology

Product properties

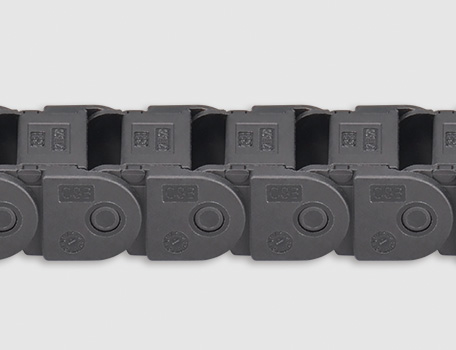

C21.15 micro cable carriers are openable along the outer radius, two pieces and small design chains with low weight, making them ideal for highly dynamic applications and cables fﬁ lled quickly. C21.15 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Long-term application temperature：-40/+120℃
● Inner height：15 mm
● Inner width：16-40 mm
● Bend radius：28-48 mm
● Link pitch：20 mm

Electrically conductive ESD/ATEX version C21E.15 upon request

Standard products

C21.15 Openable micro cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

*Lead time [wks]：

Shop now

Dimensions

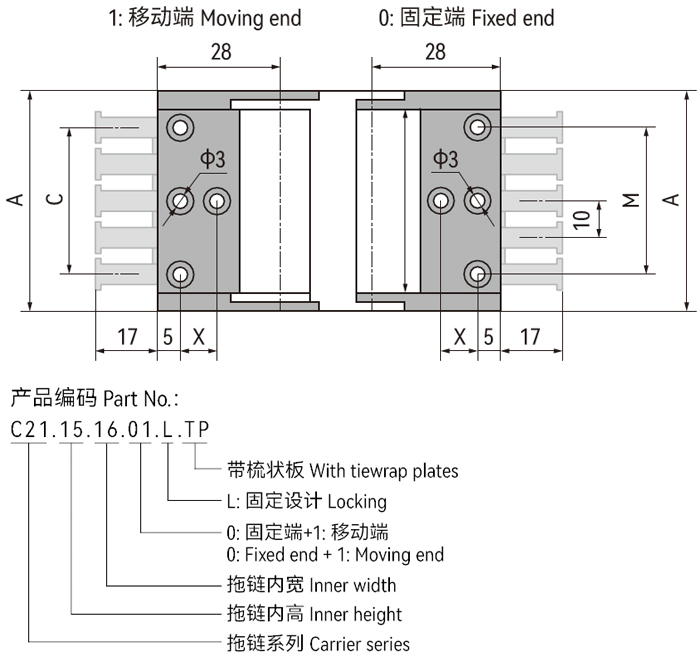

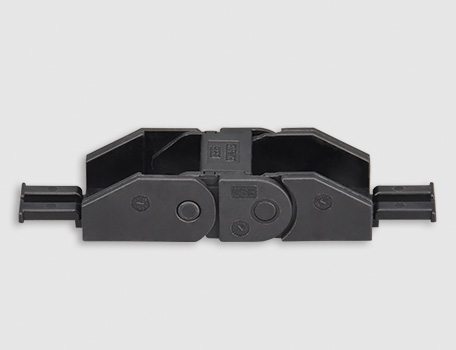

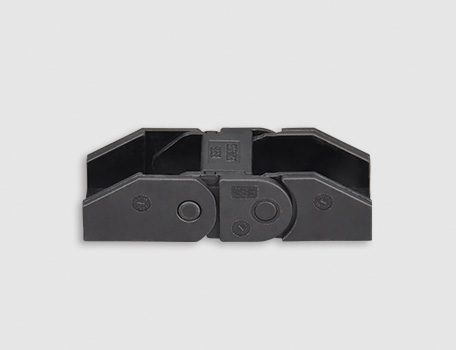

▊Mounting brackets - Locking


Without tiewrap plates （Locking）	With tiewrap plates （Locking）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	C [mm]	Number of teeth [pcs]
C21.15.16.01.L	C21.15.16.01.L.TP	16	24.2	8	/	10	2
C21.15.20.01.L	C21.15.20.01.L.TP	20	28.2	8	/	10	2
C21.15.30.01.L	C21.15.30.01.L.TP	30	38.2	8	22	20	3
C21.15.40.01.L	C21.15.40.01.L.TP	40	48.2	8	32	30	4

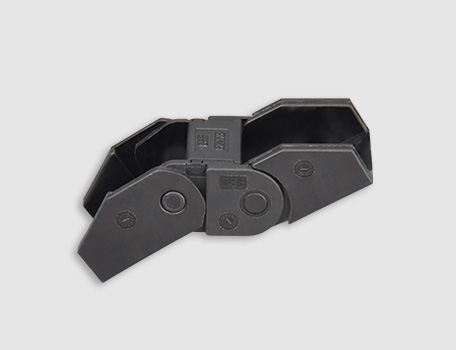

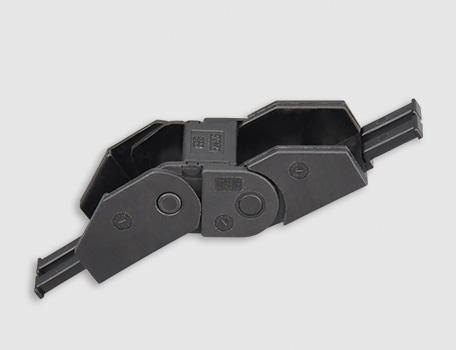

▊Mounting brackets - Pivoting


Without tiewrap plates （Pivoting）	With tiewrap plates （Pivoting）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	C [mm]	Number of teeth [pcs]
C21.15.16.01.P	C21.15.16.01.P.TP	16	24.2	8	/	10	2
C21.15.20.01.P	C21.15.20.01.P.TP	20	28.2	8	/	10	2
C21.15.30.01.P	C21.15.30.01.P.TP	30	38.2	8	22	20	3
C21.15.40.01.P	C21.15.40.01.P.TP	40	48.2	8	32	30	4

▊Installation dimensions

Unsupported length	≤ 0.7m	Speed / acceleration FL_G	≤ 3 [m/s] / 8 [m/s² ]
Sliding length	Inapplicable	Speed / acceleration FL_B	≤ 2 [m/s] / 4 [m/s² ]
Vertical hanging	≤ 5m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 0.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 0.5m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


▊ Installation

Push and click Position and... Press and click Release links

▊Installation dimensions

Openable micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	028	038	048
H	75	95	115
D	68	78	88
K	130	160	195

*The required clearance height：H_F=H+15mm（Fill weight 0.3kg/m)

▊Mounting bracket installation optional

Openable micro cable chains mounting bracket installation optional

*C21.15 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C21.15.Bi.01.P

Openable micro cable chains special optional

*For unsupported and gliding applications
