Product properties

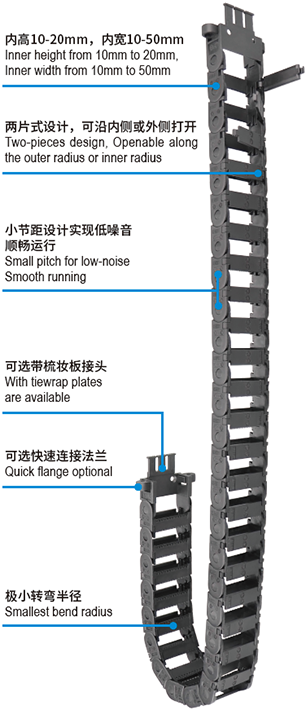

C31 micro cable carriers are openable along the outer radius or inner radius, strong and multi-opening method design, Suitable for highly dynamic applications and cables filled quickly. C31 micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Small pitch for low-noise, smooth running

● Two-pieces design, Openable along the outer radius or inner radius

● Quick flange optional

● Very lightweight, low price smallest inner heights and bend radius

Electrically conductive ESD/ATEX version C31E upon request

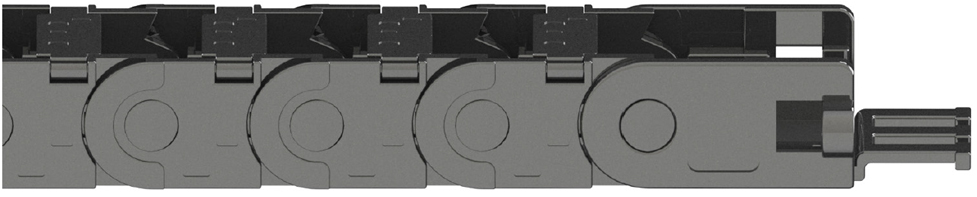

C31.10 Openable micro cable carriers

● Inner height：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

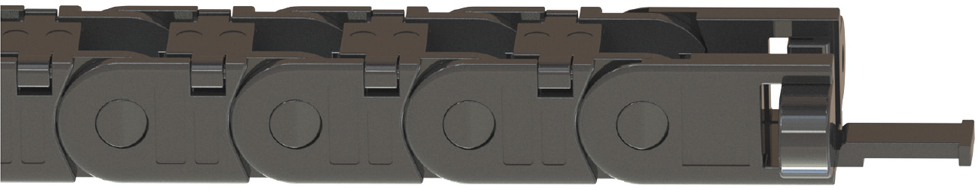

C31.15 Openable micro cable carriers

● Inner height：15 mm
● Inner width：16-50 mm
● Bend radius：28-48 mm
● Link pitch：20 mm

C31.20 Openable micro cable carriers

● Inner height：20 mm
● Inner width：20-50 mm
● Bend radius：28-48 mm
● Link pitch：30.5 mm

▊ Product introduction

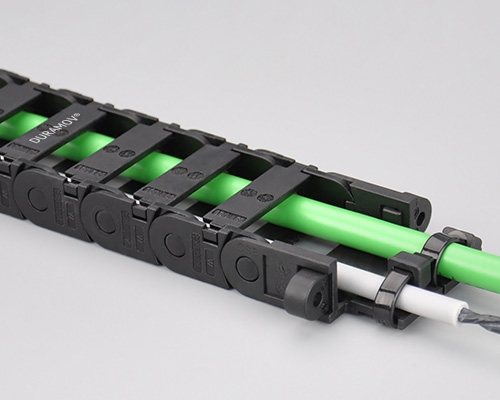

C31 Openable micro cable chains

C31 micro cable carriers are openable along the outer

radius or inner radius, strong and multi-opening method

design, Suitable for highly dynamic applications and

cables filled quickly. C31 micro cable carriers are optimal

for the smallest installation spaces, and are available in

many versions.

Openable micro cable chains openable along the outer radius Openable along the outer radius

Openable micro cable chains flammability Class Flammability Class UL94 HB

Openable micro cable chains CE certification CE certification

Openable micro cable chains RoHS certification RoHS certification

Openable micro cable chains low-noise Low-noise

Electrically conductive ESD/ATEX version C31E upon request

▊ Standard dimensions

Micro cable carriers, openable along one side	Part No.	Inner width Bi [mm]	Outer width Ba [mm]	Inner height Hi [mm]	Outer height Ha [mm]	Bend radius R [mm]	Unsupported length [m]
	C31.10	10-30	17.4-37.4	10	15	18-38	≤0.7
	C31.15	16-50	23.8-57.8	15	19.5	28-48	≤1
	C31.20	25-50	36-61	20	25	28-48	≤1

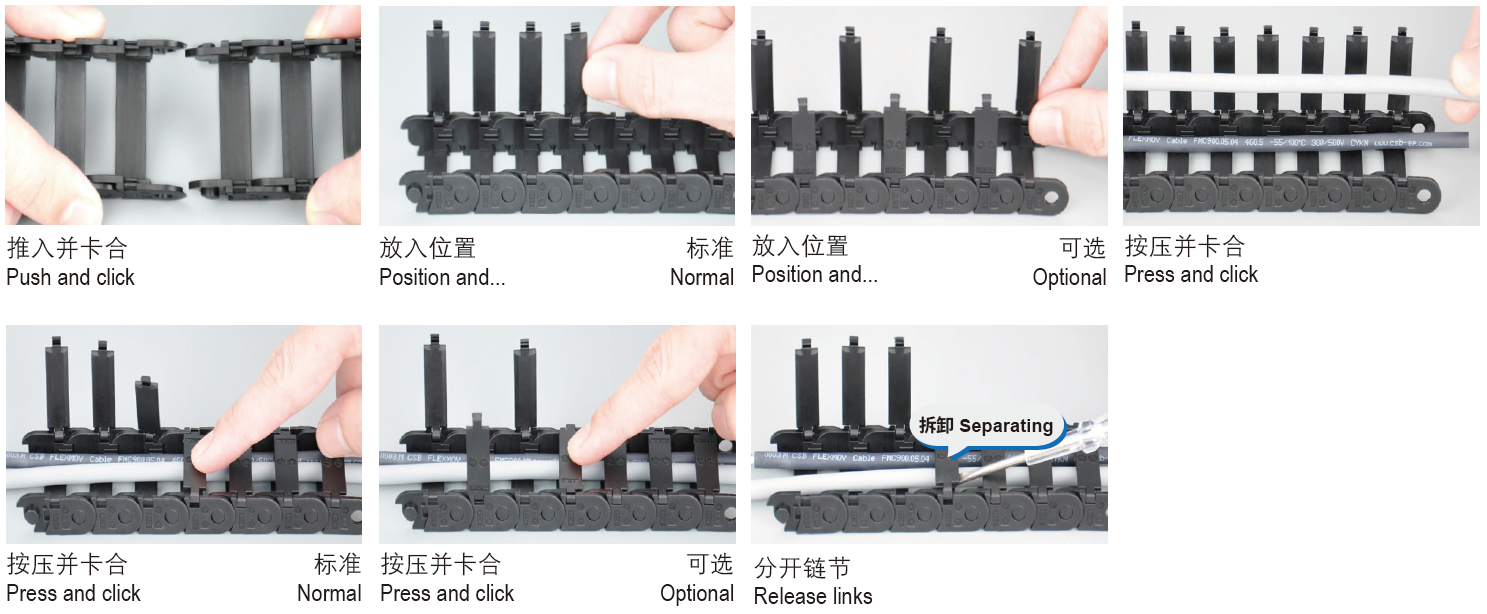

▊ Installation

▊ Distribution rules | Cables and hoses

In order to ensure that the chain is functioning properly and to avoid damage to the cables or hoses, the following principles must be observed when laying cables or hoses:

	▊ This minimum clearance would be 10% for electrical round cables, 20% for hydraulic hoses.
	▊ In order to reduce the possible friction, avoid pipes with different skin materials such as cables or hoses.（eg: cable and hydraulic hoses）
	▊ In applications where multiple cables and hoses are used, in order to avoid mutual friction between them, it is preferable to place them in a suitable separate space and separate them from each other with a spacer. If there are no conditions to achieve, make sure there is enough space between them to avoid mutual friction (H<D).
	▊ The cables or hoses are laid in a symmetrical manner according to their diameter and weight. The largest and heaviest cables are placed on the outside of the section and the small and light cables are placed on the inside.

no products

C31 Micro cable chains, openable along one side

Type PDF

Size 557KB

Time 10-2023

No. CSB/CAT.064

download

399

▊ Typical Applicable Industries and Applications

● General machinery

● Handling machines

● Semi-conductor machines

● Measuring equipment

● Pick & place robots

● Medical industries

● Packaging machines

● Textile machines
