C06.29 Quiet cable carriers - CSB® Plastic Bearing Technology

Product properties

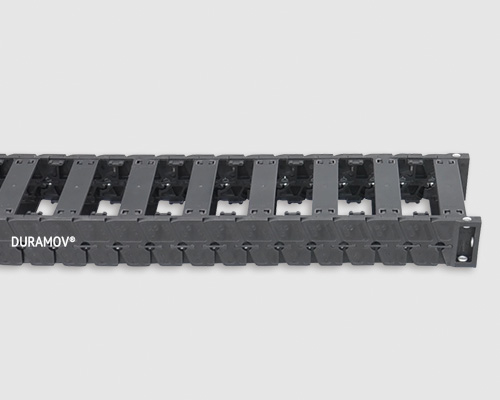

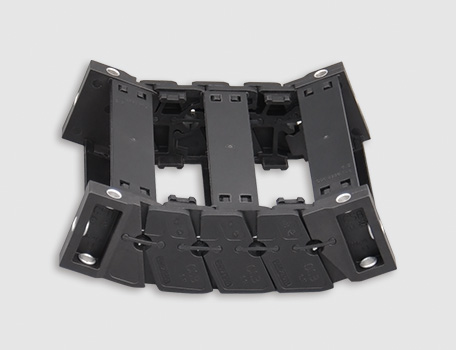

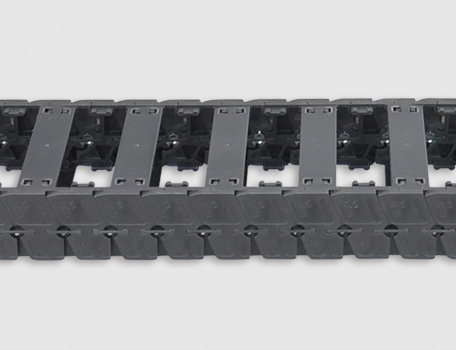

C06.29 quiet cable carriers with a special structural design and long service life; because the cable carriers with an arc shape design in the outside and the short-pitch chain links are connected with elastic elements, the vibration during the bending to linear motion of the cable carriers is reduced, and it is suitable for low noise, high speed and clean room applications.

● Long-term application temperature：-40/+120℃

● Inner height：29 mm
● Inner width：40-120 mm
● Bend radius：55-150 mm
● Link pitch：22 mm

Standard products

C06.29 Quiet cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height H [mm]：

Final position D [mm]：

Add-on for R K [mm]：

Max. unsupported L [m]：

*Lead time [wks]：

Shop now

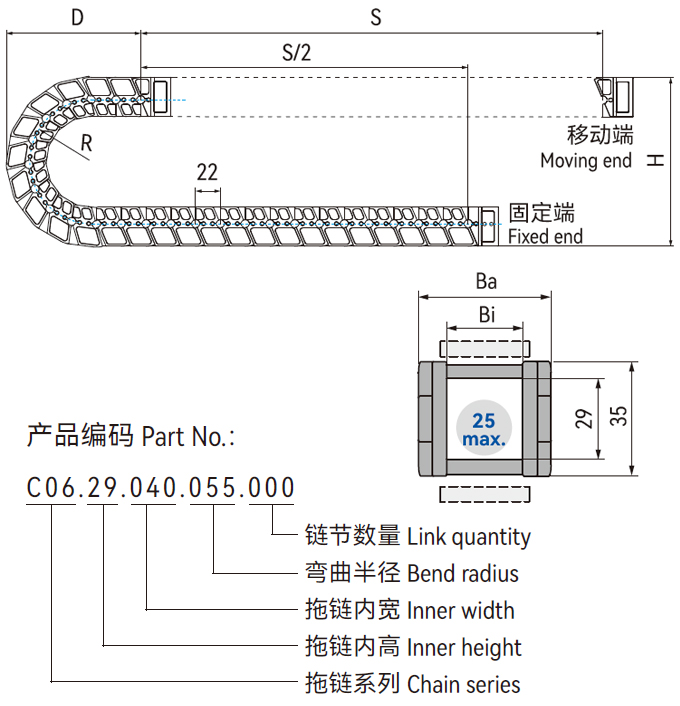

Dimensions

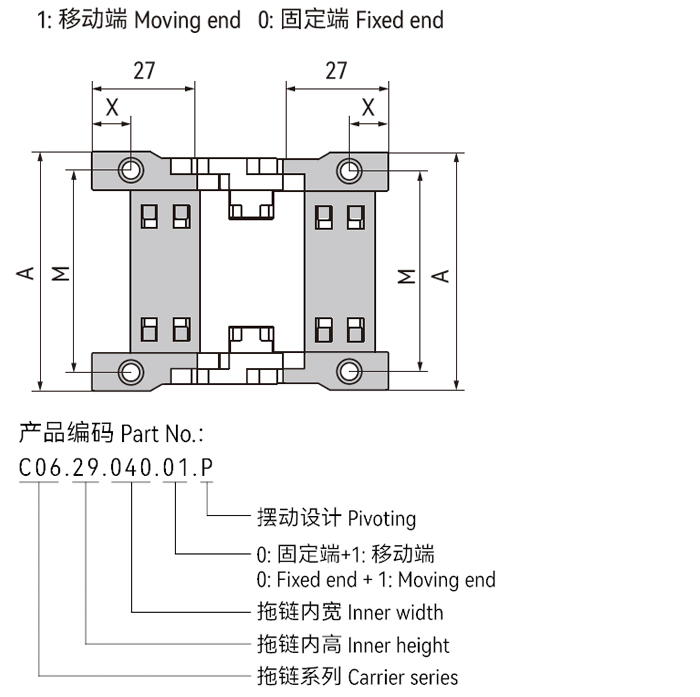

▊Mounting brackets - Pivoting


Part No. （ Pivoting ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]
C06.29.040.01.P	40	59.5	10	50
C06.29.050.01.P	50	69.5	10	60
C06.29.060.01.P	60	79.5	10	70
C06.29.070.01.P	70	89.5	10	80
C06.29.080.01.P	80	99.5	10	90
C06.29.090.01.P	90	109.5	10	100
C06.29.100.01.P	100	119.5	10	110
C06.29.110.01.P	110	129.5	10	120
C06.29.120.01.P	120	139.5	10	130

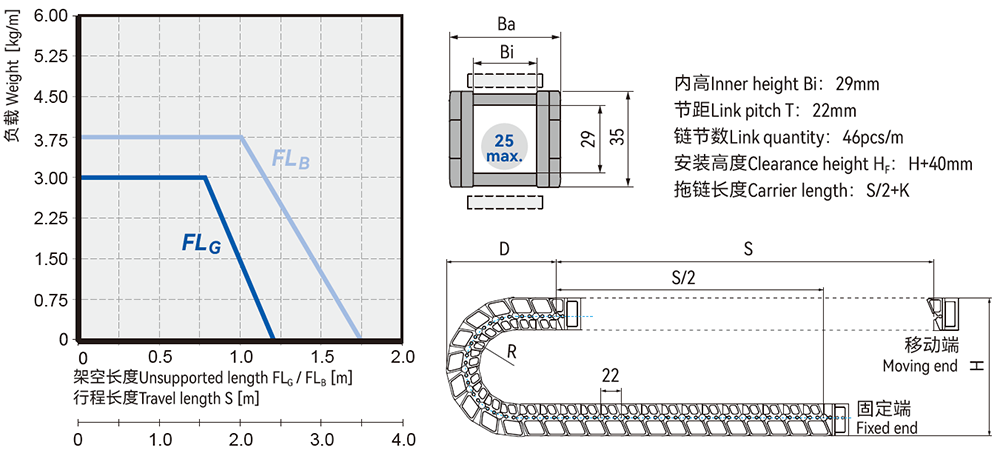

▊Installation dimensions

Unsupported length	≤ 1.75m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	Upon request	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 30m	Sliding speed / acceleration	Upon request
Vertical standing	≤ 2.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	Upon request	Flammability Class	UL94 HB

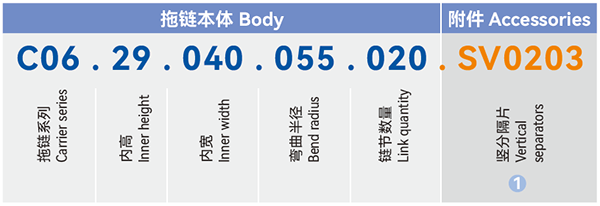

▊Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links

▊ Installation

▊Mounting brackets


*Please consult CSB® if space is particularly restricted.

R	055	075	100	150
H	180	220	270	370
D	108	128	153	203
K	220	280	360	520

*The required clearance height：HF=H+40mm （Fill weight 0.3kg/m)

▊Mounting bracket installation optional

*C06.29Possible installation configurations
*A1 Please indicate installation code for pre-assembled carriers

▊C06.29.Bi.01.P

*For unsupported and gliding applications
