C06.35 Quiet cable carriers - CSB® Plastic Bearing Technology

Product properties

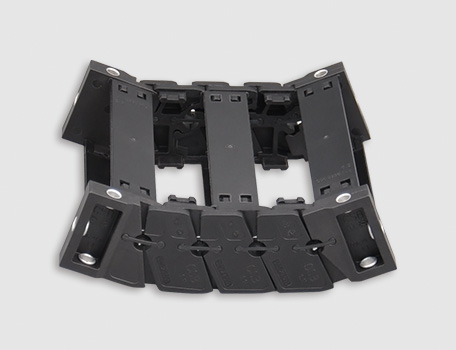

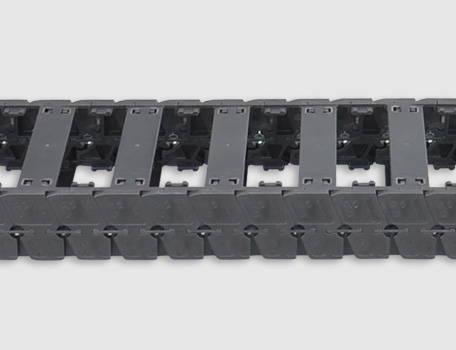

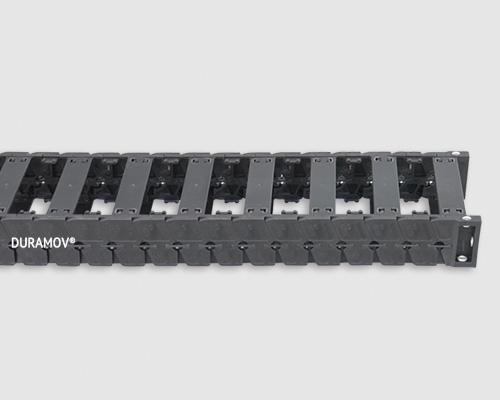

C06.35 quiet cable carriers with a special structural design and long service life; because the cable carriers with an arc shape design in the outside and the short-pitch chain links are connected with elastic elements, the vibration during the bending to linear motion of the cable carriers is reduced, and it is suitable for low noise, high speed and clean room applications.

● Long-term application temperature：-40/+120℃

● Inner height：35 mm
● Inner width：40-120 mm
● Bend radius：55-150 mm
● Link pitch：25 mm

Standard products

C06.35 Quiet cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height H [mm]：

Final position D [mm]：

Add-on for R K [mm]：

Max. unsupported L [m]：

*Lead time [wks]：

Shop now

Dimensions

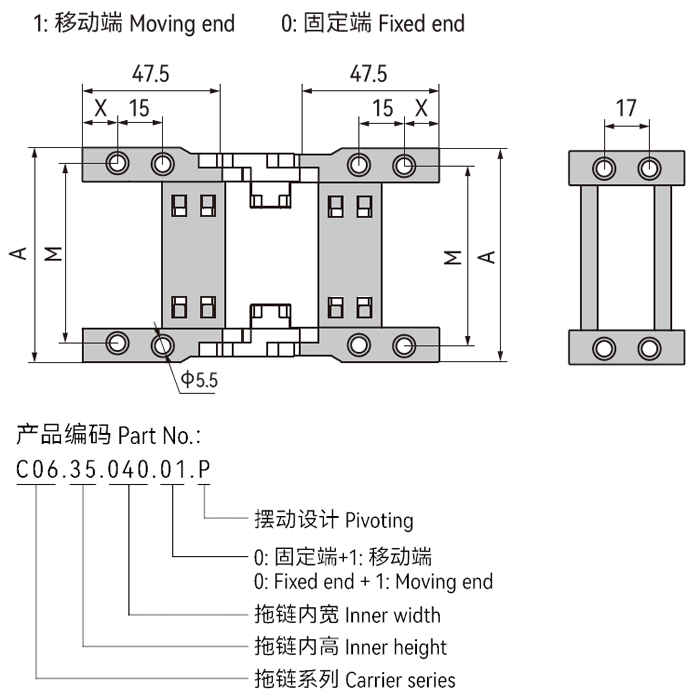

▊Mounting brackets - Pivoting


Part No. （ Pivoting ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]
C06.35.040.01.P	40	64	12.5	52
C06.35.050.01.P	50	74	12.5	62
C06.35.060.01.P	60	84	12.5	72
C06.35.070.01.P	70	94	12.5	82
C06.35.080.01.P	80	104	12.5	92
C06.35.090.01.P	90	114	12.5	102
C06.35.100.01.P	100	124	12.5	112
C06.35.110.01.P	110	134	12.5	122
C06.35.120.01.P	120	144	12.5	132

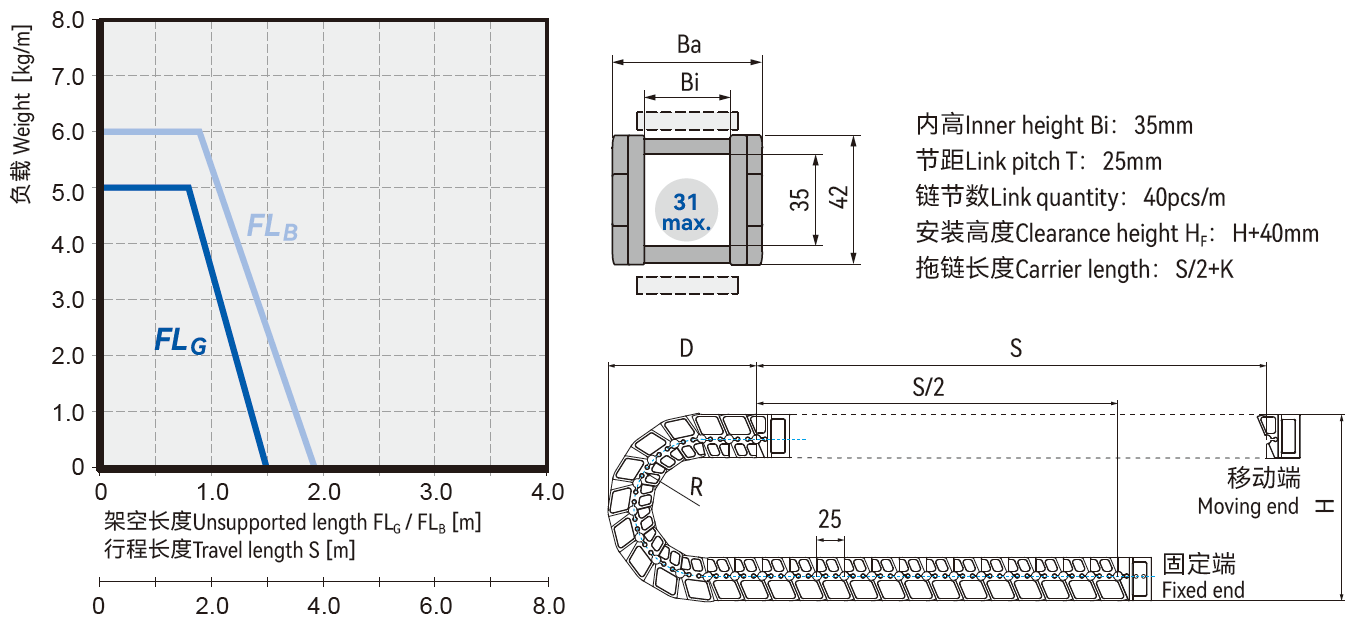

▊Installation dimensions

Unsupported length	≤ 1.9m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	Upon request	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 30m	Sliding speed / acceleration	Upon request
Vertical standing	≤ 2.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	Upon request	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links

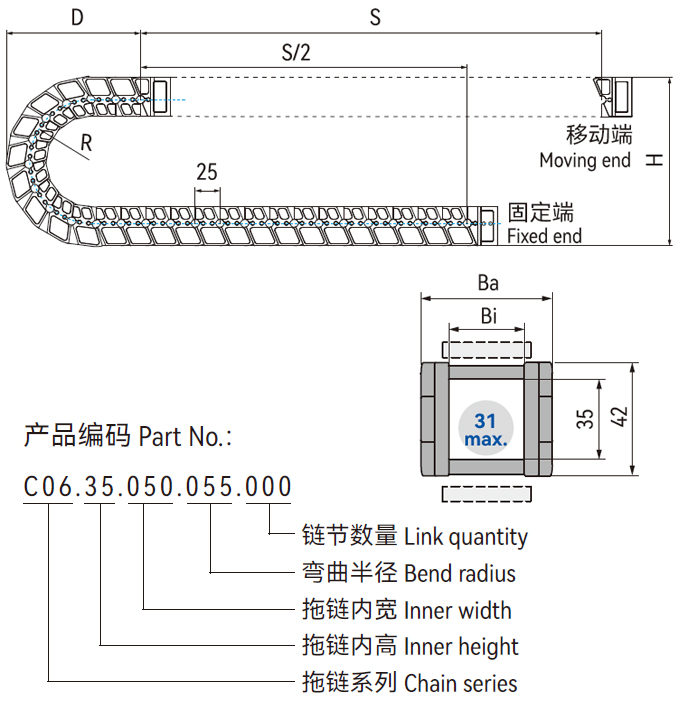

▊ Installation

▊Mounting brackets


*Please consult CSB® if space is particularly restricted.

R	055	075	100	150
H	189	229	279	379
D	115	135	160	210
K	225	290	365	525

*The required clearance height：HF=H+40mm （Fill weight 0.3kg/m)

▊Mounting bracket installation optional

*C06.35 Possible installation configurations
*A1 Please indicate installation code for pre-assembled carriers

▊C06.35.Bi.01.P

*For unsupported and gliding applications
