C06.52 Quiet cable carriers - CSB® Plastic Bearing Technology

Product properties

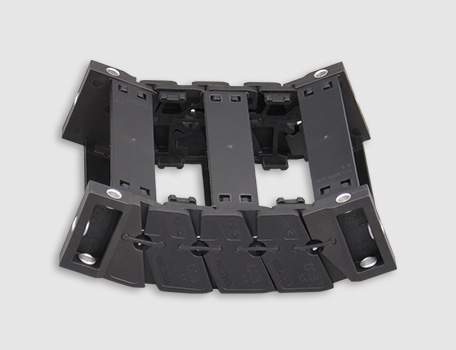

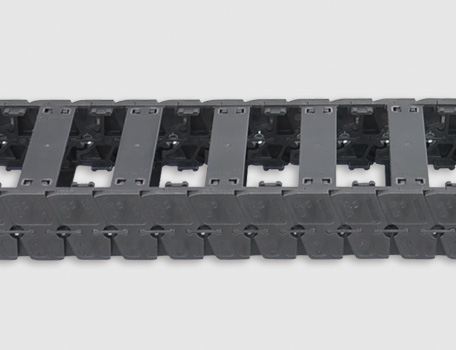

C06.52 quiet cable carriers with a special structural design and long service life; because the cable carriers with an arc shape design in the outside and the short-pitch chain links are connected with elastic elements, the vibration during the bending to linear motion of the cable carriers is reduced, and it is suitable for low noise, high speed and clean room applications.

● Long-term application temperature：-40/+120℃

● Inner height：52 mm
● Inner width：50-150 mm
● Bend radius：75-250 mm
● Link pitch：30 mm

Standard products

C06.52 Quiet cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height H [mm]：

Final position D [mm]：

Add-on for R K [mm]：

Max. unsupported L [m]：

*Lead time [wks]：

Shop now

Dimensions

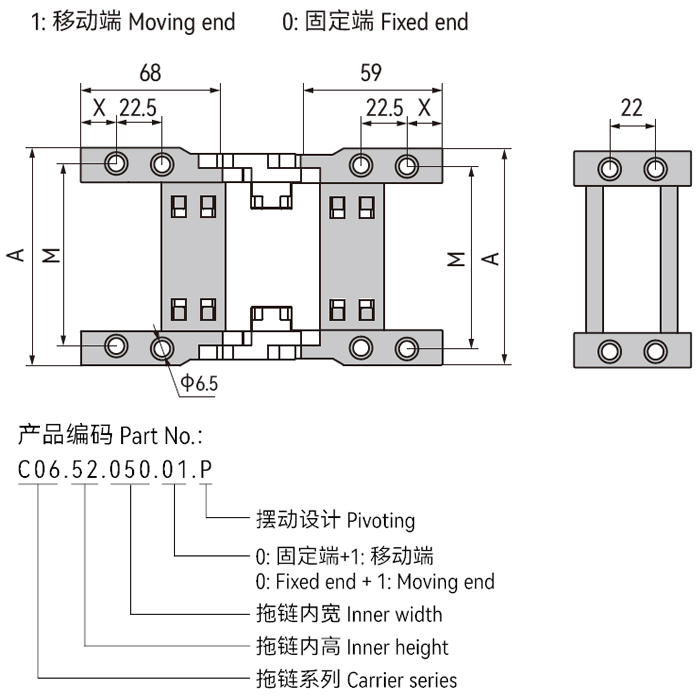

▊Mounting brackets - Pivoting


Part No. （ Pivoting ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]
C06.52.050.01.P	50	80	15	66
C06.52.062.01.P	62	92	15	78
C06.52.070.01.P	70	100	15	86
C06.52.075.01.P	75	105	15	91
C06.52.087.01.P	87	117	15	103
C06.52.100.01.P	100	130	15	116
C06.52.125.01.P	125	155	15	141
C06.52.150.01.P	150	180	15	166

▊Installation dimensions

Unsupported length	≤ 3.0m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	Upon request	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 50m	Sliding speed / acceleration	Upon request
Vertical standing	≤ 2.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	Upon request	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links

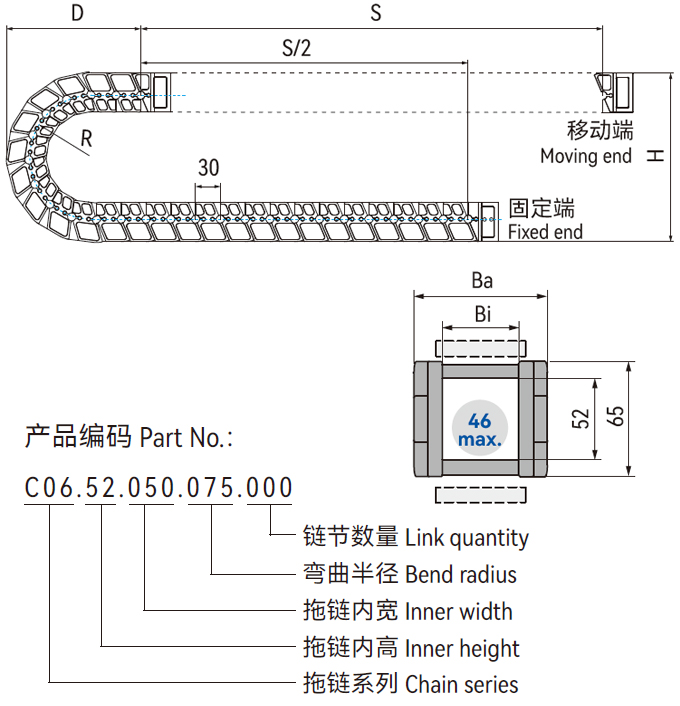

▊ Installation

▊Mounting brackets


*Please consult CSB® if space is particularly restricted.

R	075	100	150	200	250
H	270	320	420	520	620
D	155	180	230	280	330
K	300	375	535	690	850

*The required clearance height：HF=H+40mm （Fill weight 0.3kg/m)

▊Mounting bracket installation optional

*C06.52 Possible installation configurations
*A1 Please indicate installation code for pre-assembled carriers

▊C06.52.Bi.01.P

*For unsupported and gliding applications
