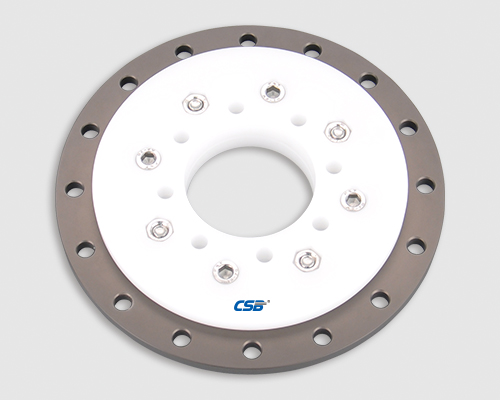

SRB-02 Slewing ring bearings

Product properties

● Extremely light weight slewing ring

● Compact dimensions design

● Self-lubricating, maintenance-free

● Outer rings made of anodized aluminum,

available stainless steel rings

● Inner ring made from MN70

● Low-cost version

● Operation temperature -40℃/+90℃

Item		Unit	SRB-02-20	SRB-02-30	SRB-02-50	SRB-02-60
Weight		kg	0.2	0.3	0.8	0.9
Max. Rotation Speed		r/min	150	120	70	60
Max. Static Load	Axial	N	13000	25000	35000	45000
Max. Static Load	Radial	N	2000	2500	5000	10000
Max. Dynamic Load	Axial	N	4000	7000	9000	12000
Max. Dynamic Load	Radial	N	500	700	1200	2800
Max. Permitted Overturning		Nm	60	100	120	200

Standard products

SRB-02 Slewing ring bearings

Part no.:

d [mm]：

d1 [mm]：

d2 ±0.2 [mm]：

D [mm]：

D1 [mm]：

H [mm]：

h [mm]：

T1 [mm]*[°]：

T2 [mm]*[°]：

S1 [mm]：

S2 [mm]：

*Lead time [wks]：

Shop now

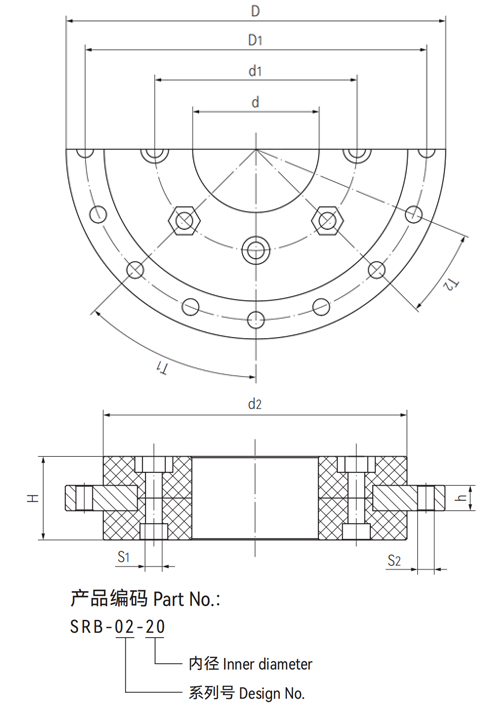

Dimensions

Downloads

CSB-SRB®SRB01 Slewing ring bearings, high speed

Type PDF

Size 166KB

Time 11-2023

No. CSB/CAT.062

download
