SRB-03-EPB21-HTD Slewing ring bearings

Product properties

● HTD standard tooth type for the outer ring, other tooth types available

● Sliding pads made from high temperature material EPB21

● Easy to install with replaceable sliding pads

● Inner and outer rings made of anodized aluminum, available stainless steel rings

● For very high load applications

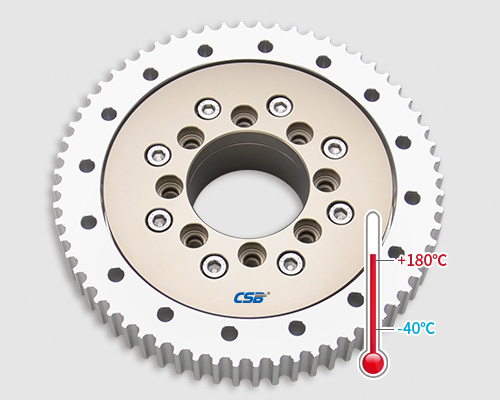

● Operation temperature -40℃/+180℃

Item		Unit	SRB-03-20-HTD5M	SRB-03-30-HTD8M	SRB-03-50-HTD8M	SRB-03-60-HTD8M	SRB-03-100-HTD8M	SRB-03-150-HTD8M	SRB-03-200-HTD8M
Weight		kg	0.2	0.4	1.0	1.1	1.3	2.2	3.2
Max. Rotation Speed		r/min	300	250	200	180	150	100	80
Max. Static Load	Axial	N	15000	27000	40000	50000	55000	80000	100000
Max. Static Load	Radial	N	2300	5000	8000	10000	16000	25000	45000
Max. Dynamic Load	Axial	N	4000	7000	10000	15000	16000	25000	30000
Max. Dynamic Load	Radial	N	600	1500	2500	3000	5000	8000	10000
Max. Permitted Overturning		Nm	100	200	600	800	1500	2000	3800

Standard products

SRB-03-EPB21-HTD Slewing ring bearings

Part no.:

d [mm]：

d1 [mm]：

d2 ±0.2 [mm]：

D [mm]：

D1 [mm]：

H [mm]：

h [mm]：

T1 [mm]*[°]：

T2 [mm]*[°]：

S1 [mm]：

S2 [mm]：

Number of teeth：

*Lead time [wks]：

Shop now

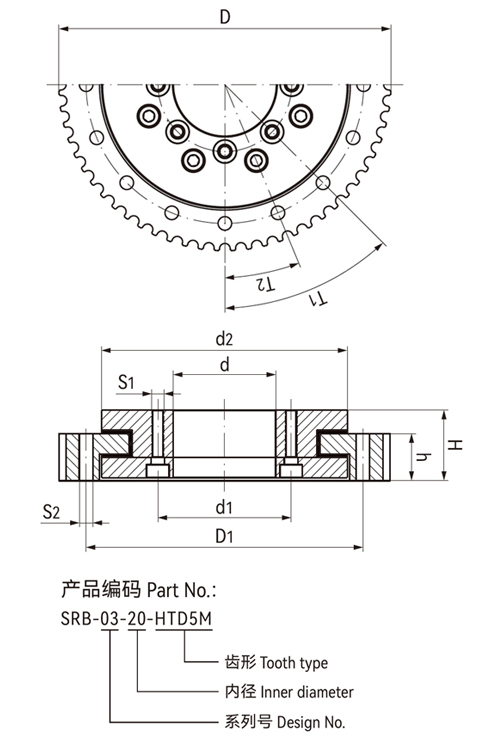

Dimensions

Downloads

CSB-SRB®SRB01 Slewing ring bearings, high speed

Type PDF

Size 166KB

Time 11-2023

No. CSB/CAT.062

download
