WRU02 Round rail hybrid blocks, Long design - CSB® Plastic Bearing Technology

Product properties

● Rolling and sliding hybrid blocks

● Smooth moving and driving force reduced 45%

● Carrying capacity is twice that of the standard type

● Sliding liners material: EPB13

● Resistant dust and quiet operation

● For WR single and dual guide rails

● Various installation options are available

Standard products

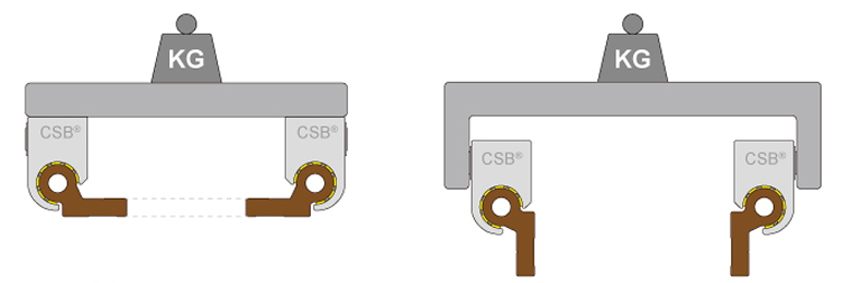

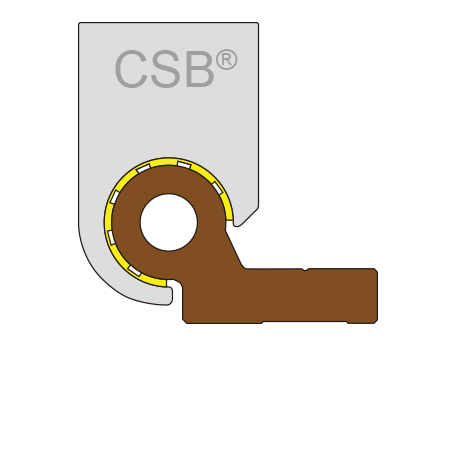

Installation Method 1

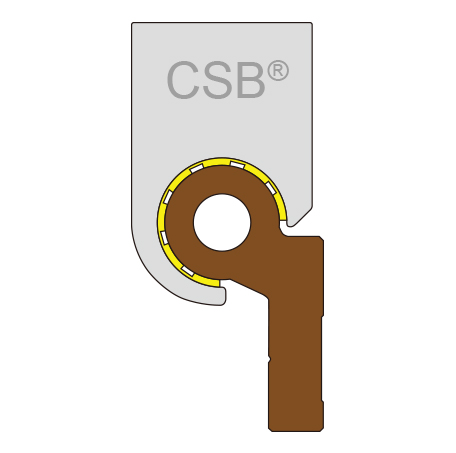

Installation Method 2

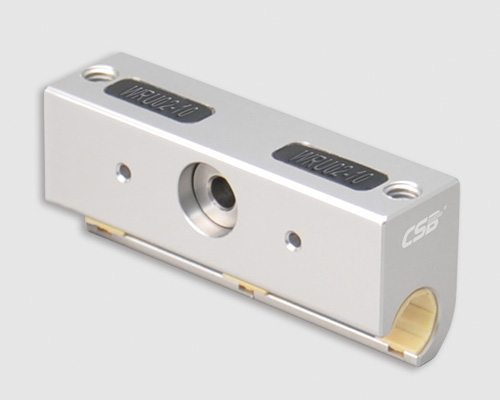

WRU02 Round rail hybrid blocks, Long design

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

C1 [mm]：

C3 [mm]：

G1 [mm]：

G2 [mm]：

A1 [mm]：

A3 [mm]：

H3 [mm]：

H2 [mm]：

K1 [mm]：

K [mm]：

*Lead time [wks]：

Shop now

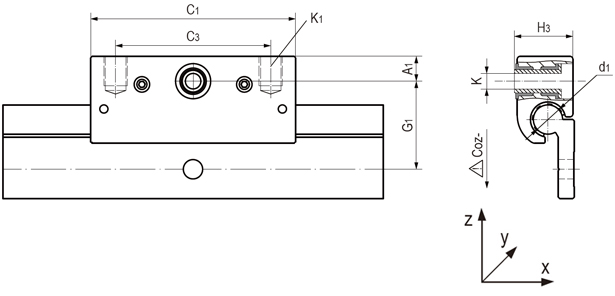

Dimensions

▊WRU02 Round rail hybrid blocks load capacity

Part No.	Max. static load [N]	Max. dynamic load [N]	Weight
Part No.	Coz-	Coz-	[g]
WRU02-10-L	460	1440	67
WRU02-16-L	680	1760	139
WRU02-20-L	960	2480	242

▊Various installation options are available


LIN-11K Plastic linear bearing liners

● Opening design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13,MN2,EPB5

WR01 Single round linear guide rails

● Single guide rails made of aluminum

● Hard anodized surface

● Weight saving and no noise

● Variable width can be fitted

CSB-LMS®WRU02 Round rail hybrid blocks, long design

Type PDF

Size 102KB

Time 01-2023

No. CSB/CAT.062E

download

861

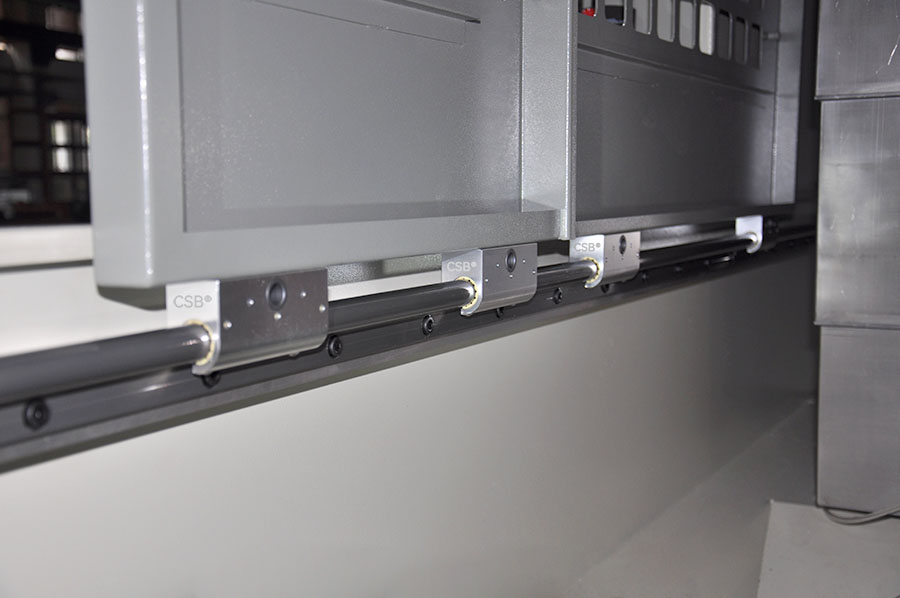

▊WRU02 Round rail hybrid blocks for machine tool moving door

塑料直线轴承查找器 — CSB-LIN®

CSB-LIN® Plastic Linear Bearings Finder V2.0

view tools

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
