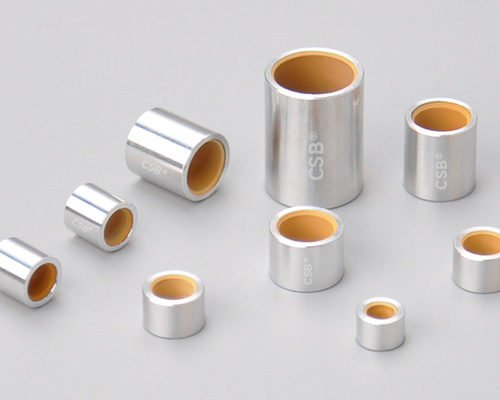

ALBP High-precision sliding bearings - CSB® Plastic Bearing Technology

Product properties

● Sliding layer with FDA grade material TEFPLAS^®P

● Shell made of aluminum, available stainless steel

●High precision requirement

● Self-lubricating, maintenance-free

● Smooth operation, low noise

● High-speed operation and longer life

● Operation temperature ±200℃

● Loctite Adhesive is recommended to secure the bushing

Standard products

ALBP High-precision sliding bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d2-max. [mm]：

d2-min. [mm]：

L [-0.30]mm：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Shop now

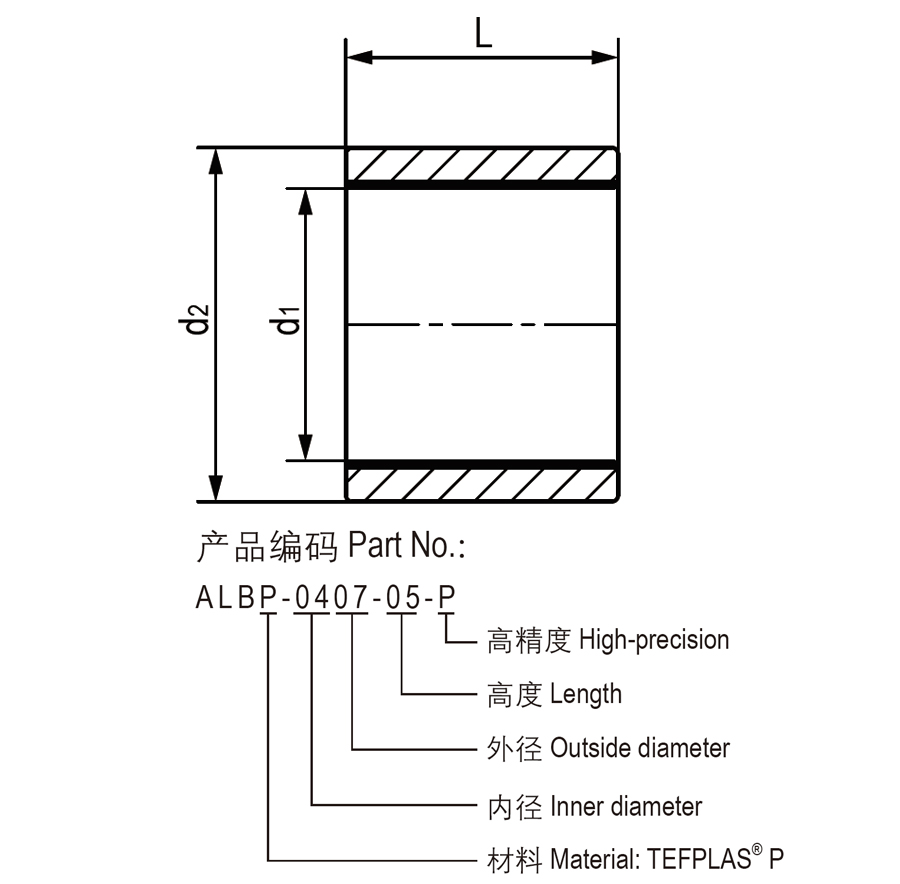

Dimensions

Product info.
Accessories

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® P FDA food contact safety materials, suitable for soft shafts.

Materials

Friction coef.

dry [u]

Max. static load

[Mpa]

Max. dynamic load

[Mpa]

Max. PV

[N/mm²xm/s]

Max. Speed ,dry [m/s]

Operation temp.

[℃]

Continuous

Intermittent

TEFPLAS^®P

0.05-0.18

0.5

1.0

2.0

±200

***For operation under extreme high temperature, it is necessary to consider increasing the fitting clearance to avoid stagnation caused by the high temperature expansion of the shaft and bearing. Please contact us.

▊Bearing back material

The standard bearing back material is light-weight and high-strength aluminum alloy. When the bearing is used in applications with high requirements for corrosion resistance, it is recommended to use stainless steel back;

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
