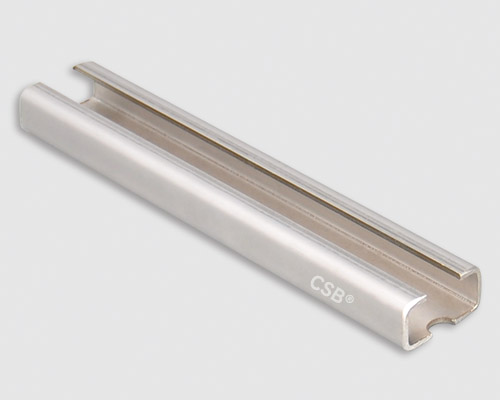

C-profile bracket for heavy-duty applications

Product properties

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Easy to assemble and ﬁx cables

● Save assemble time and space,compact modular design

Part No.	Part No.	L [mm]
CB.HD.050.GS	CB.HD.050.ES	50
CB.HD.075.GS	CB.HD.075.ES	75
CB.HD.100.GS	CB.HD.100.ES	100
CB.HD.125.GS	CB.HD.125.ES	125
CB.HD.150.GS	CB.HD.150.ES	150
CB.HD.175.GS	CB.HD.175.ES	175
CB.HD.200.GS	CB.HD.200.ES	200
CB.HD.225.GS	CB.HD.225.ES	225
CB.HD.250.GS	CB.HD.250.ES	250

Tiewrap elements for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

● Available as an individual component

● Can be clipped into C-proﬁle bracker

Single layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Double layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Three layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

CSB-PCC® Cable carrier accessories

Type PDF

Size 316KB

Time 10-2024

No. CSB/CAT.067

download
