C01E.10 ESD micro cable carriers - CSB® Plastic Bearing Technology

Product properties

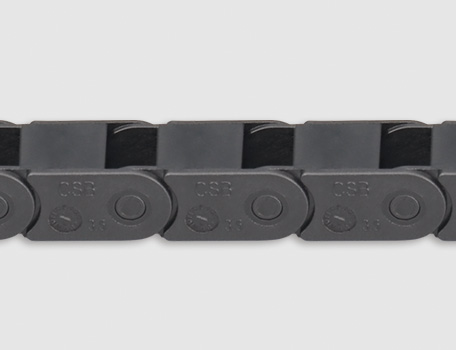

C01E.10 ESD micro cable carriers are very small, one piece chains with low weight, making them ideal for highly dynamic applications. C01E.10 ESD micro cable carriers are optimal for the smallest installation spaces, and are available in many versions.

● Electro-Static discharge，Surface resistance <10⁹Ω

● Long-term application temperature：-40/+120℃

● Inner height ：10 mm
● Inner width：10-30 mm
● Bend radius：18-38 mm
● Link pitch：20 mm

Standard products

C01E.10 ESD micro cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

*Lead time [wks]：

Shop now

Dimensions

▊C01E.10 ESD micro cable carriers

▊Product features

● Electro-Static discharge，Surface resistance <10⁹Ω

● Inner height 10mm, Inner width from 10mm to 30mm

● Small pitch for low-noise, smooth running

● One-piece design, non-openable

● Very lightweight, low price smallest inner heights and bend radius

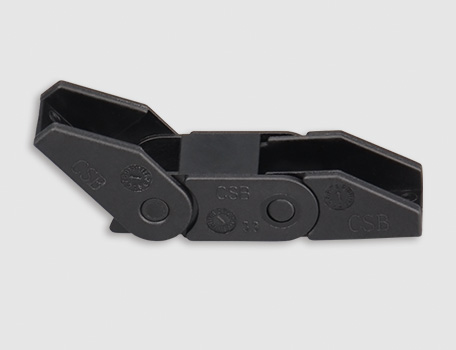

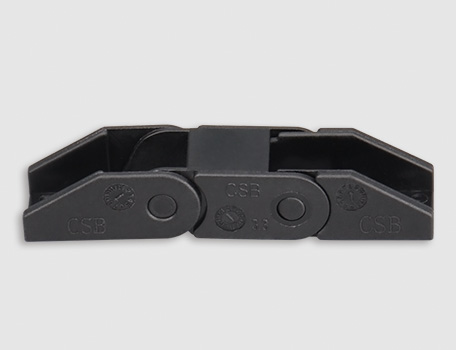

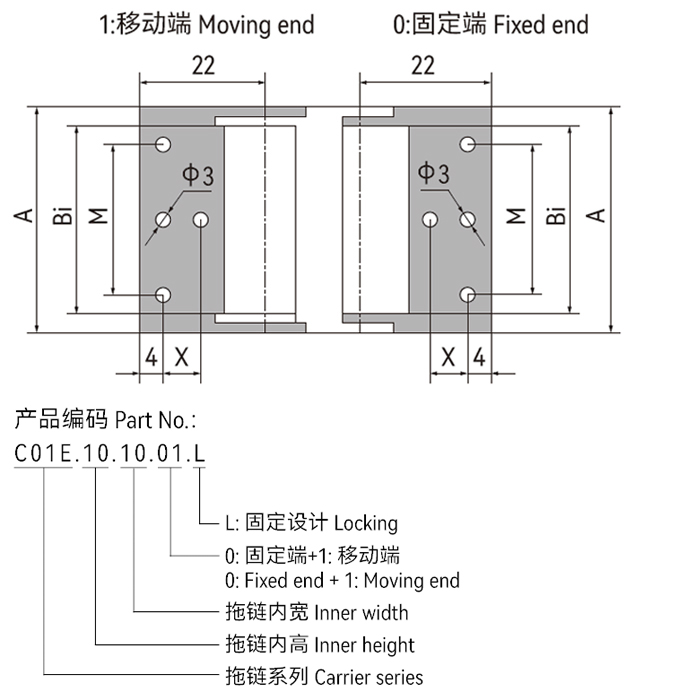

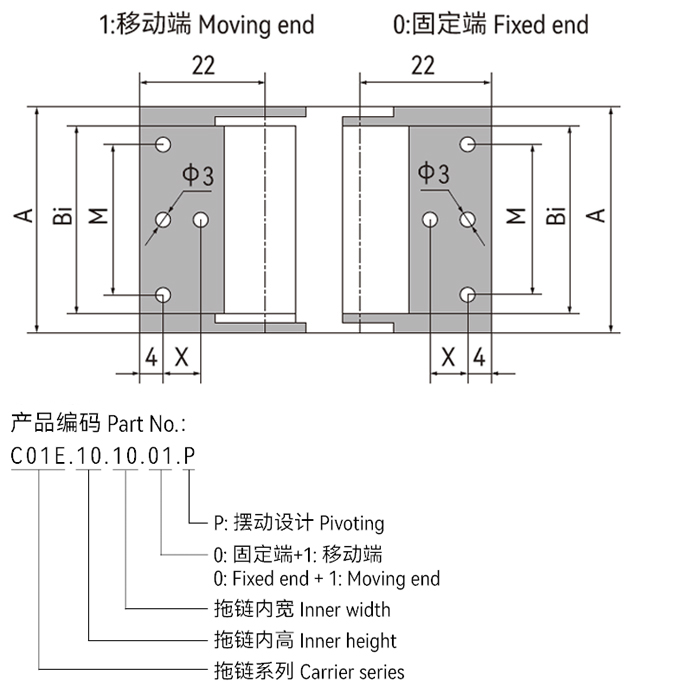

▊Mounting bracket dimensions


Part No. Locking	Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]
C01E.10.10.01.L	C01E.10.10.01.P	10	14.7	8	/
C01E.10.16.01.L	C01E.10.16.01.P	16	20.7	8	/
C01E.10.20.01.L	C01E.10.20.01.P	20	24.7	8	/
C01E.10.30.01.L	C01E.10.30.01.P	30	34.7	/	22

▊Installation dimensions

Unsupported length	≤ 0.5m	Speed / acceleration FL_G	≤ 3 [m/s] / 8 [m/s² ]
Sliding length	Inapplicable	Speed / acceleration FL_B	≤ 2 [m/s] / 4 [m/s² ]
Vertical hanging	≤ 5m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 0.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 0.5m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


▊ Installation

Twist and click Twist and divide

▊Installation dimensions

ESD micro cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	018	028	038
H	48	68	88
D	54	64	74
K	100	130	160

*The required clearance height：H_F=H+10mm（Fill weight 0.2kg/m)

▊Mounting bracket installation optional

ESD micro cable chains mounting bracket installation optional

*C01E.10 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C01E.10.Bi.01.P

ESD micro cable chains special optional

*For unsupported and gliding applications
