FMV610 Servo cables - CSB® Plastic Bearing Technology

Product properties

● PVC outer jacket
● Shielded
● Flame-retardant
● Oil-resistant
● Temperature： -15/+70℃

Code
Core wire
Outer diameter		mm

Technical data.

General properties

	Bus type	-
	Number of cores and conductor nominal cross-section [mm]	(4G0.75+2×(2×0.34)C)C
	Colour code	-
	Grounding wire	green-yellow core
	Outer diameter [mm]	12.5
	Copper index [kg/km]	103
	Weight [kg/km]	208
	Drive technology system	-

Dynamic properties

	Min. bending radius[mm], Moving in cable carriers(factor)	7.5×d
	Min. bending radius[mm], Moving in cable carriers	93.75
	Min. bending radius[mm], Fexible moving(factor)	6×d
	Min. bending radius[mm], Fexible moving	75
	Min. bending radius[mm], Fixed installation(factor)	4×d
	Min. bending radius[mm], Fixed installation	50
	Temperature[℃]， Moving in cable carriers	+5 up to +70
	Temperature[℃]， Fexible moving	-5 up to +70
	Temperature[℃]， Fixed installation	-15 up to +70
	v max.[m/s]， unsupported	10
	v max.[m/s]， gliding	5
	a max.[m/s²]	80
	Travel distance[m]	Unsupported travels and up to 100 m for gliding applications
	Torsion[°]	-

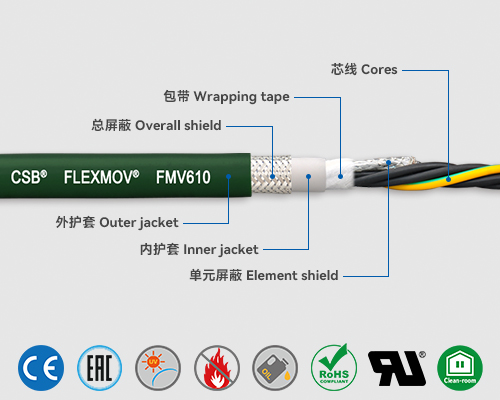

Cable structure

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228).
	Conductor insulation	Mechanically high-quality, especially low-capacitance XLPE mixture.
	Conductor construction	Power cores and control pair elements wound with a short pitch length around a high tensile strength centre element.
	Color code	Power conductors: Black with white numbers, one conductor green-yellow 1st core: U / L1 / C / L+ 2nd core: V / L2 3rd core: W / L3 / D / L- Two Control pair:Black with white numbers，5/6/7/8
	Element shield foil	Aluminum foil taping over the outer layer
	Element shield	Bending-resistant braiding made of tinned copper wires. optical approx. 80%
	Element jacket	Polymer foil taping over the outer layer
	Intermediate layer	polymer tape tied over the outer layer
	Inner jacket	PVC mixture adapted to suit the requirements in cable carriers.
	Overall shield foil	-
	Overall shield	Bending-resistant braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
	Outer jacket	Low adhesion mixture on the basis of PVC, adapted to suit the requirements in cable carriers.
	Jacket color	Green RAL6005

Electricity attributes

	Characteristic wave impedance approx. [Ω]	-
	Nominal voltage [V]	600/1000
	Test voltage [V]	4000

Properties and approvals

	UV-resistance	Medium
	Hydrolysis-resistance	-
	Cold-resistant [℃]	-
	Oil resistance	Oil-resistant (following IEC60811-404, tested by SGS), bio-oil-resistant (following VDMA24568, tested by SGS)
	Halogen-free	-
	Flame resistance	According to IEC 60332-1-2、VW-1、FT1
	Silicone-free	Free from silicone which can affect paint adhesion
	REACH	Accordding to the regulation (EC) No. 1907/2006 (REACH)
	Lead-free	Following 2015/863/EU (RoHS-II Tested by SGS)
	EAC	Certificate No.KG 417/043.CN.02.00249
	Cleanroom	Following ISO 14644-1
	CE	Following 2014/35/EU
	UL	Following UL2570, 80℃, 1000V

▊FLEXMOV^® FMV610 Flexible servo cable service life

Double strokes	5 million times	7.5 million times	10 million times
Temperature,from/to [℃]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]
+5 / +15	10	11	12
+15 / +60	7.5	8.5	9.5
+60 / +70	10	11	12

***According to the FLEXMOV® guarantee.
