GIB Rod end bearings - CSB® Plastic Bearing Technology

Product properties

● Spherical ball made of highly wear-resistant EPB15
● Connection rod made of high strength and shape-stable M163
● Internal thread design
● Maintenance-free and dry operation
● Smooth design has no dirt traps
● Absolute corrosion resistance
● Compensation of misalignment errors
● No noise and light weight

Standard products

GIB Rod end bearings

Part no.:

d1 [mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 [mm]：

d3 [mm]：

W [mm]：

B [mm]：

I1 [mm]：

I3 [mm]：

h1 [mm]：

h2 [mm]：

C1 [mm]：

m [mm]：

Min. screw depth [mm]：

Max. adjustable angle [°]：

Max. shaft [mm]：

Min. shaft [mm]：

*Lead time [wks]：

Shop now

Dimensions

▊GIB Rod end bearings load capacity

Part No.	Max. static tensile strength		Max. radial static load		tightening torque through ball	Weight
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	[Nm]	[g]
GIBR-06	1500	750	200	100	2.5	4.5
GIBR-08	2000	1000	450	225	7	8.6
GIBR-10	2300	1150	500	250	14	14.1
GIBR-10F	2300	1150	500	250	14	14.1
GIBR-12	3300	1650	550	275	25	17.1
GIBR-12F	3300	1650	550	275	25	17.1
GIBL-06	1500	750	200	100	2.5	4.5
GIBL-08	2000	1000	450	225	7	8.6
GIBL-10	2300	1150	500	250	14	14.1
GIBL-10F	2300	1150	500	250	14	14.1
GIBL-12	3300	1650	550	275	25	17.1
GIBL-12F	3300	1650	550	275	25	17.1

BAL Plastic spherical balls

● Self lubricated and maintenance free
● Corrosion resistance
● Impact resistance, low noise
● Light weight

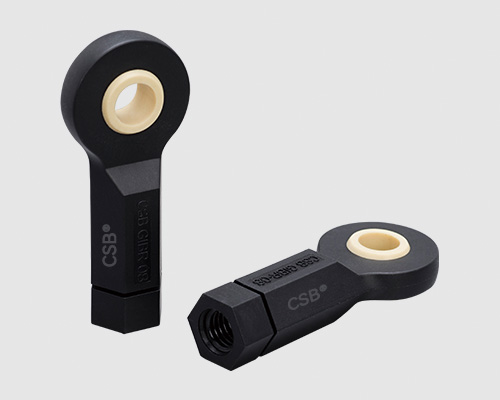

CSB®GIB Rod end bearings,Internal thread design

Type PDF

Size 170KB

Time 10-2023

No. CSB/CAT.062

download
