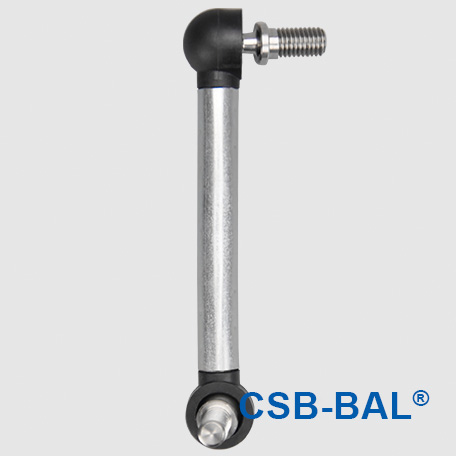

GVCJ Variable coupling joint with ball studs - CSB® Plastic Bearing Technology

Product properties

● Ball stud housings made of high strength material CSB® M163
● Available materials of the ball stud: galvanised steel or stainless steel
● Available materials of the tube: galvanised steel or stainless steel
● The centre dimensions upon request is availabe
● Individual alignment of the bearing position
● Maintenance free and self-lubricated
● No noise and lightweight design

Standard products

Version: A

Version: B

Version: C

Version: D

GVCJ Variable coupling joint with ball studs

Part no.:

Thread d1 [mm]：

d2 [mm]：

d3 [mm]：

Lmin. [mm]：

B [mm]：

h1 [mm]：

h2 [mm]：

s1 [mm]：

R [mm]：

Max. adjustable angle [°]：

*Lead time [wks]：

Shop now

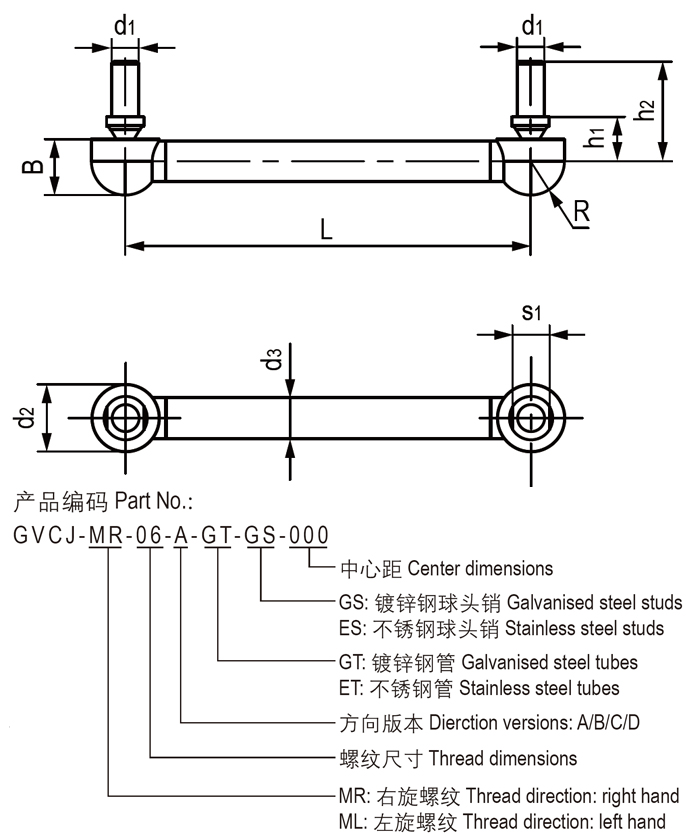

Dimensions

▊Variable coupling joint with ball studs

Part No.	Max. static tensile stress in pin axis		Max. static pressure load in pin radial		Max. static tensile stress of the tubes
Part No.	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]	Short-term [N]	Long-term [N]
GVCJ-MR-08	750	375	1500	750	2000	1000

GIB Rod end bearings

● Internal thread design
● Maintenance-free and dry operation
● Absolute corrosion resistance
● Compensation of misalignment errors

GSB-IP Flange spherical bearings

● Internal thread design
● Maintenance-free and corrosion-resistant
● Easy connection - easy assembly
● Fits directly and space-saving

GC Clevis Joints

● Material CSB®M163
● High tensile force
● Absolute corrosion-resistant
● Noise free

CSB-BAL® GVCJ Variable coupling joint with ball studs

Type PDF

Size 103KB

Time 11-2021

No. CSB/CAT.062E

download
