LMS01 Linear drive modules - CSB® Plastic Bearing Technology

Product properties

● Standard design

● Various materials for shaft and lead screw

● Maintenance-free and optionally corrosion resistant

● TR10x2, TR18x4, TR24x5

● Temperature resistant up to +60 ℃

● Lead screw nuts are available separately

● Available with motor SM01

● Proximity switch、controller and other accessories are available

Standard products

LMS01 Linear drive modules

Part no.:

A -0.3[mm]：

A1 [mm]：

H [mm]：

E1 ±0.15[mm：

E2 ±0.15[mm：

E3 ±0.15[mm：

L [mm]：

R [mm]：

f [mm]：

Lt ±0.15[mm：

tk [mm]：

ts [mm]：

tg [mm]：

Kt [mm]：

s [mm]：

sk [mm]：

sg [mm]：

Kq [mm]：

d [mm]：

T [mm]：

L2 [mm]：

d2 h9[mm]：

ha [mm]：

*Lead time [wks]：

Shop now

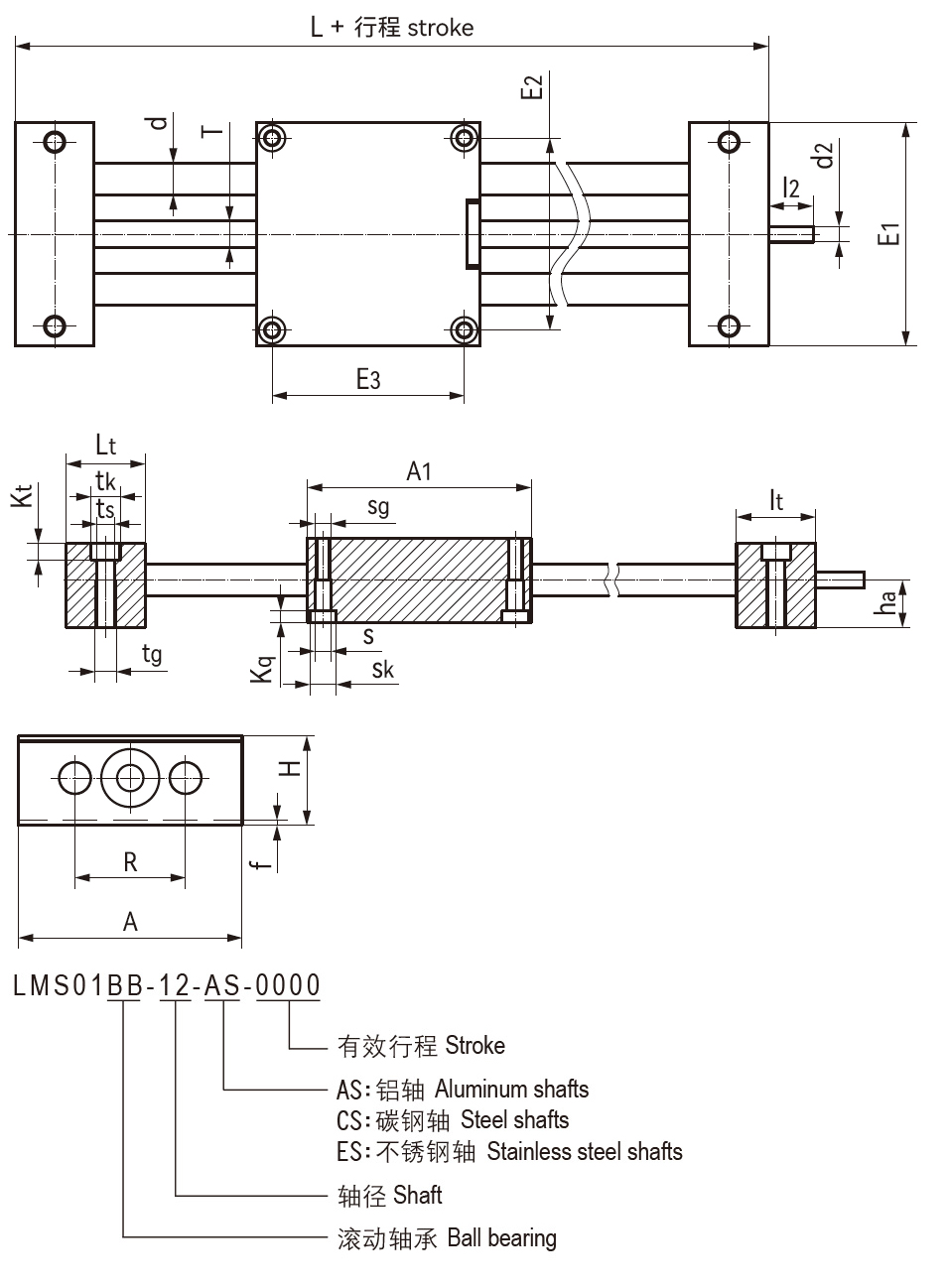

Dimensions

Accessories
Downloads

LIN-11 Plastic linear bearing liners

● Closed design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13,MN2,EPB5

TLS Lead screws with trapezoidal thread

● Thread: right- or left-hand

● Available materials: C45 steel /304 stainless steel

● Length and machining according to customer drawing

HLS Lead screws with high-helix thread

● Thread: right- or left-hand

● Available materials: 304 stainless steel

● Length and machining according to customer drawing

LMS01 Lead screw nuts

● Special design nuts for LMS linear motion system

● Self lubricating and lower wear

● Best coefficient of friction

● Chemical resistant

Lead screw clamping rings

● Ready to install in the screw

● Custom solutions for lead screw support

● Can absorb even high axial forces

● Clamping rings made from coated aluminum

Linear drive modules

Type PDF

Size 333KB

Time 03-2024

No. CSB/CAT.064

download
