LMS03 Linear drive modules - CSB® Plastic Bearing Technology

Product properties

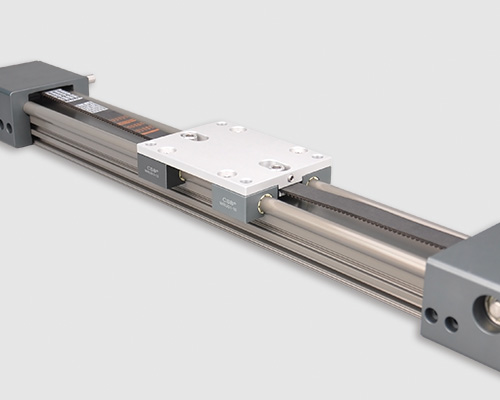

● Fast positioning of small loads

● Quiet operation and ﬂat design

● Drive shaft on one or both sides

● Linear carriages available in different lengths

● Available with motor SM01

● Proximity switch、controller and other accessories are available

Standard products

LMS03 Linear drive modules

Part no.:

A -0.3[mm]：

IT [mm]：

IL [mm]：

AL [mm]：

E1 [mm]：

E2 [mm]：

C [mm]：

d1 -0.05[mm]：

L [mm]：

L1 [mm]：

Ha [mm]：

H [mm]：

HW [mm]：

M [mm]：

n [mm]：

na [mm]：

nb [mm]：

nw [mm]：

E3 [mm]：

X [mm]：

LP [mm]：

dP [mm]：

I2 [mm]：

*Lead time [wks]：

Shop now

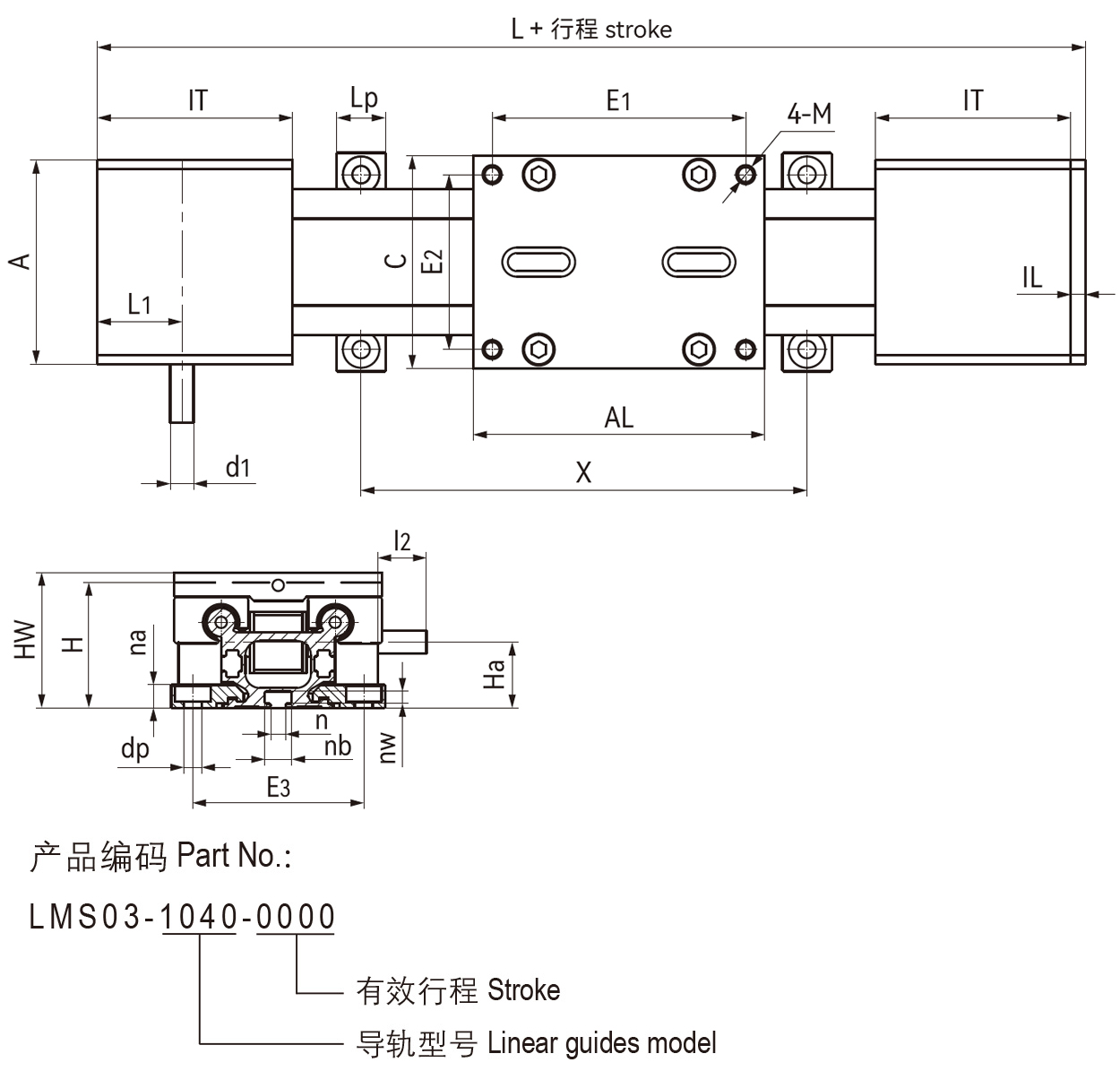

Dimensions

Accessories
Downloads

LIN-11 Plastic linear bearing liners

● Closed design sliding liners
● Self-lubricating and dust resistance
● Made of anti-wear material EPB13,MN2,EPB5

Flexible jaw couplings

The coupling connects the drive shaft of the axis to the Motor, An elastic polymer insert in the centre of the coupling transfers the motor torque, This damping element compensates for radial and axial clearance...

WR02 Double round linear guide rails

● Dual guide rails made of aluminum

● Hard anodized surface

● Weight saving and no noise

● Standard fitting width

WRC01 Round guide rail carriages

● Fitted standard liners EPB13

● Maintenance-free, dry-running

● Fast assembly and light weight

Linear drive modules

Type PDF

Size 333KB

Time 03-2024

No. CSB/CAT.064

download
