NR01 Small linear guide rails - CSB® Plastic Bearing Technology

Product properties

● Small installation height from 6 to 12 mm

● Lightweight

● Numerous carriage options – also with preload design

● Maintenance-free, self lubricating

● Corrosion-resistant

● Low wear with low coefficient of friction

● Rails in silver anodized

Standard products

NR01 Small linear guide rails

Part no.:

A [mm]：

A1 [mm]：

H [mm]：

H1 [mm]：

K3 [mm]：

C4 [mm]：

C5=C6 min.[mm]：

C5=C6 max.[mm]：

Lmax. [mm]：

*Lead time [wks]：

Shop now

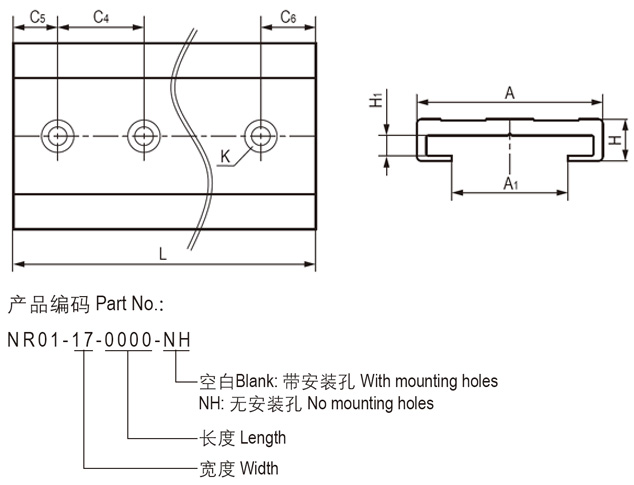

Dimensions

Accessories
Downloads

NRU01 Linear guide sliders

● Made of high anti-wear material EPB13

● Variants: Standard, Preload (P)

● Extrem low weight quiet running

● Maintenance-free, self lubricating

NRU02 Linear guide sliders

● Made of high anti-wear material EPB13

● Extrem low weight quiet running

● Maintenance-free, self lubricating

● Installation for NR01-27 and NR01-40

NRU03 Linear guide sliders

● Made of high anti-wear material EPB13

● Variants: Standard, Floating design

● Extrem low weight quiet running

● Maintenance-free, self lubricating

Guide rail end caps

● Easy installation

● Low-priced

● Dismantling possible

● High retention force

CSB-LMS®NR Small linear guide rails

Type PDF

Size 178KB

Time 03-2020

No. CSB/CAT.052

download
