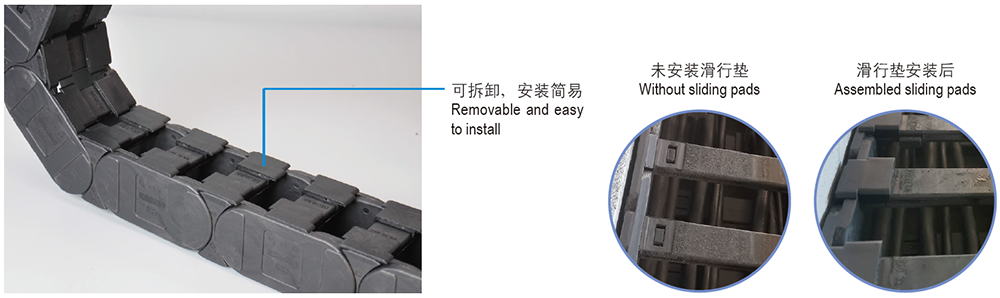

Sliding pads for cable carriers

Product properties

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

● Supplied as a individual component


Sliding pads for cable carriers
Dimensions

C03 High load cable carriers-Sliding mat

Part No.Product featuresUsed for cable carriersWeight [g]
SP.C03.3242Reinforced wear-resistant material, easy to install, low cost
C03.32 / C03.423.5
SP.C03.5680Reinforced wear-resistant material, easy to install, low costC03.56 / C03.807




Vertical separators for C02 cable carriers
Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be firmly fitted in carriers

more
Vertical separators for C03 cable carriers
Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be firmly fitted in carriers

more

CSB-PCC® Plastic Cable Chains Finder[V1.0] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
CSB-PCC® Plastic Cable Chains Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

CSB-PCC® Cable chain accessories

Type PDF
Size 486KB
Time 10-2023
No. CSB/CAT.064
download
