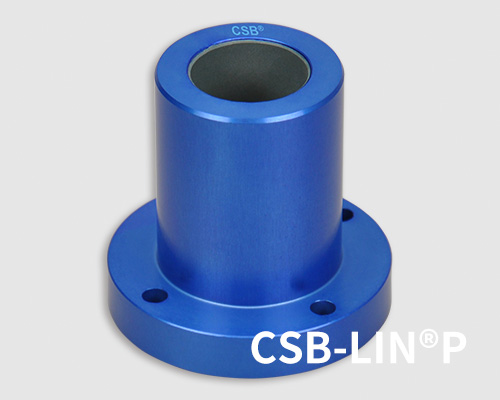

●Closed design with round flange
●High precision similar to preloaded ball bearing
●Standard liner materials TEFPLAS®
●Anodized aluminum adapter
●Secured by bolts
●Maintenance-free and low noise
●Operation temperature ±200℃
● Closed design with round flange
● High precision similar to preloaded ball bearing
● Standard liner material TEFPLAS®B
● Operation temperature ±200℃
● Closed design with round flange
● High precision similar to preloaded ball bearing
● Lower starting friction liner material TEFPLAS®G
● Operation temperature ±200℃
● Closed design with round flange
● High precision similar to preloaded ball bearing
● FDA grade liner material TEFPLAS®E
● Operation temperature ±200℃
● Closed design with square flange
● High precision similar to preloaded ball bearing
● Standard liner material TEFPLAS®B
● Operation temperature ±200℃
● Closed design with square flange
● High precision similar to preloaded ball bearing
● Lower starting friction liner material TEFPLAS®G
● Operation temperature ±200℃
● Closed design with square flange
● High precision similar to preloaded ball bearing
● FDA grade liner material TEFPLAS®E
● Operation temperature ±200℃
●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force
●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.
AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...
more
2219
2255
▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
