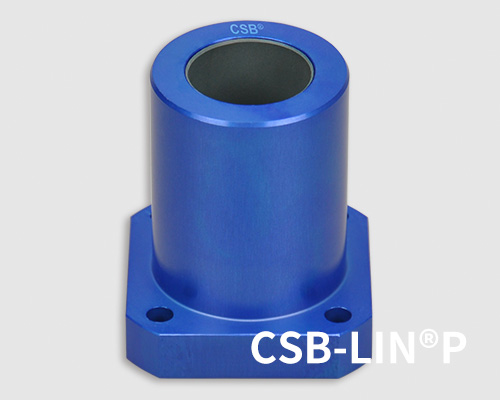

LINPB-11RT Flange precision linear bearings - CSB® Plastic Bearing Technology

Product properties

● Closed design with square ﬂange

● High precision similar to preloaded ball bearing

● Standard liner material TEFPLAS^®B

● Anodized aluminum adapter

● Secured by bolts

● Maintenance-free and low noise

● Operation temperature ±200℃

Standard products

Standard precision

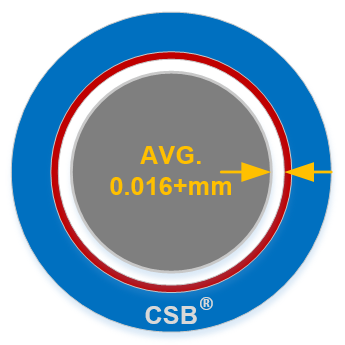

Compensated Clearance

LINPB-11RT Flange precision linear bearings

Part no.:

d1 F8[mm]：

d1-max. [mm]：

d1-min. [mm]：

d2 h7[mm]：

d3 [mm]：

B [mm]：

dt ¡À0.15[mm：

Bf [mm]：

ts [mm]：

db[mm]：

ds[mm]：

K ¡À0.15[mm：

Max. shaft [mm]：

Min. shaft [mm]：

Max. housing [mm]：

Min. housing [mm]：

*Lead time [wks]：

Shop now

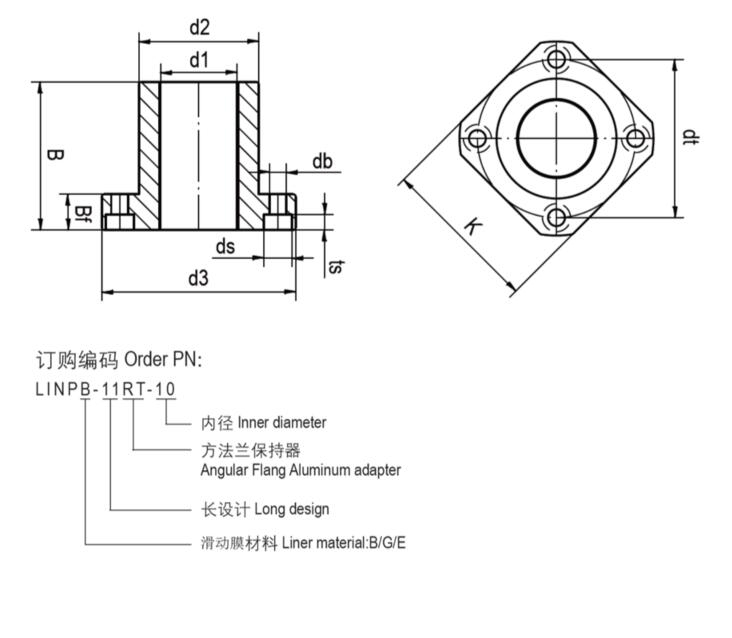

Dimensions

▊Sliding layer materials TEFPLAS^®

TEFPLAS^® B is a standard sliding layer material. It combines high load bearing and wear resistance performance , suitable for hard shafts ≥HRC35 or hard anodized aluminum shafts.

TEFPLAS^® G has excellent wear resistance, suitable for hard shafts or hard anodized aluminum shafts.

TEFPLAS^® E FDA food contact safety materials, suitable for stainless steel shaft or aluminum shaft.

▊Load capacities of LINPB-11RT linear bearings

Part No.	Shaft	Housing	Max. dynamic Load	Max. static Load	Weight
Part No.	[mm]	[mm] H7	[N]	[N]	[g]
LINPB-11RT-08	8	16	2000	4000	20
LINPB-11RT-10	10	19	2900	5800	34
LINPB-11RT-12	12	22	3840	7680	43
LINPB-11RT-16	16	26	5760	11520	54
LINPB-11RT-20	20	32	9000	18000	91
LINPB-11RT-25	25	40	14500	29000	154
LINPB-11RT-30	30	47	20400	40800	266
LINPB-11RT-40	40	62	32000	64000	555
LINPB-11RT-50	50	75	50000	100000	852

▊CSB-LIN®P Eccentric forces

●Maximum 2:1 ratio
●1x =bearing separation on same shaft
●2x =distance from shaft to load or force

CSB-LIN® Precision linear bearings

●CAUTION: uneven motion or even system blockage will occur if the 2:1 ratio is exceeded !
This principle is NOT load dependent! It is NOT due to edge loading. It is also NOT dependent on the driving force used! The greater the distance between the drive and guide bearings, the higher the degree of wear and required drive force.
There may be other factors that add to the braking effect, but the coefficient of friction is the main cause.
NOTE: The Rule(2:1) is based on the static friction value of 0.25 theoretically, However, Additional lubrication can help to drop friction and extend the 2:1 ratio.
If you have any questions on design and/or assembly, please contact our application engineers.

Precision shafts

AS: Hard anodized aluminum shaft, the best shaft for LIN linear bearings; CS: Hard-chromed steel shaft, the effective-cost shaft; ES: 304 Stainless steel shaft, the best for chemical liquid; Shaft end processing service...

CSB®LINP-11RT Precision linear bearings, Closed design with square ﬂange

Type PDF

Size 488KB

Time 09-2021

No. CSB/CAT.062E

download

2229

塑料直线轴承查找器 — CSB-LIN®

CSB-LIN® Plastic Linear Bearings Finder V2.0

view tools

▊CSB-LIN® Plastic Linear Bearings Finder[V2.0] including LIN plastic linear bearings and LINP precision linear bearings. The system is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations bearing data by entering parameters such as bearing load, speed, temperature and position information, The system will output bearing adaptation data and min. driving force.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the bearing must be tested again to verify whether it meets the actual use requirements.
▊CSB-LIN® Plastic Linear Bearings Finder output data information is only for design reference, and can not be used as the final standard for determining the bearing material conformity, If you have any questions, please contact CSB® sales engineers.
