FMD910 Data cables - CSB® Plastic Bearing Technology

Product properties

● PUR outer jacket
● Shielded
● UV-resistance
● Notch-resistant
● Oil-resistant and coolant-resistant
● Resistant to hydrolysis and microbes
● PVC and halogen-free
● Temperature： -50/+80℃

Code
Core wire
Outer diameter		mm

Technical data.

General properties

	Bus type	-
	Number of cores and conductor nominal cross-section [mm]	(4×0.14)C
	Colour code	white，brown，green，yellow
	Grounding wire	-
	Outer diameter [mm]	5.5
	Copper index [kg/km]	15
	Weight [kg/km]	39
	Drive technology system	-

Dynamic properties

	Min. bending radius[mm], Moving in cable carriers(factor)	10×d
	Min. bending radius[mm], Moving in cable carriers	55
	Min. bending radius[mm], Fexible moving(factor)	8×d
	Min. bending radius[mm], Fexible moving	44
	Min. bending radius[mm], Fixed installation(factor)	5×d
	Min. bending radius[mm], Fixed installation	27.5
	Temperature[℃]， Moving in cable carriers	-25 up to +80
	Temperature[℃]， Fexible moving	-40 up to +80
	Temperature[℃]， Fixed installation	-50 up to +80
	v max.[m/s]， unsupported	3
	v max.[m/s]， gliding	2
	a max.[m/s²]	20
	Travel distance[m]	Unsupported travels and up to 50 m for gliding applications
	Torsion[°]	-

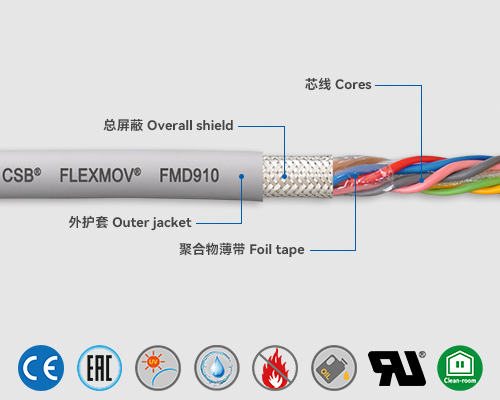

Cable structure

	Conductor	Fine bare copper stranded wires with high flexibility design
	Conductor insulation	Mechanically high-quality TPE mixture.
	Conductor construction	Cores twisted in pairs with a short pitch length, core pairs then wound with short pitch lengths
	Color code	Color code in accordance with DIN 47100
	Element shield foil	-
	Element shield	-
	Element jacket	-
	Intermediate layer	Polymer foil taping over the outer layer
	Inner jacket	-
	Overall shield foil	-
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage linear approx. 70 %, optical approx. 90 %
	Outer jacket	Low-adhesion mixture on the basis of PUR, adapted to suit the requirements in cable carriers (following DIN EN 50363-10-2).
	Jacket color	Grey RAL7001

Electricity attributes

	Characteristic wave impedance approx. [Ω]	-
	Nominal voltage [V]	300/300
	Test voltage [V]	1500

Properties and approvals

	UV-resistance	Medium
	Hydrolysis-resistance	High
	Cold-resistant [℃]	-50
	Oil resistance	Oil-resistant (following IEC60811-404, tested by SGS), bio-oil-resistant (following VDMA24568, tested by SGS)
	Halogen-free	Following IEC60754
	Flame resistance	According to IEC 60332-1-2、VW-1、FT1
	Silicone-free	Free from silicone which can affect paint adhesion
	REACH	Accordding to the regulation (EC) No. 1907/2006 (REACH)
	Lead-free	Following 2015/863/EU (RoHS-II Tested by SGS)
	EAC	Certificate No.KG 417/043.CN.02.00249
	Cleanroom	Following ISO 14644-1
	CE	Following 2014/35/EU
	UL	Following UL20233, 80℃, 300V

▊FLEXMOV^® FMD910 Flexible data cable service life

Double strokes	5 million times		7.5 million times		10 million times
Temperature, from/to [℃]	＜10 m	≥ 10 m	＜10 m	≥ 10 m	＜10 m	≥ 10 m
Temperature, from/to [℃]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]
-25 / -15	12.5	15	13.5	16	14.5	17
-15 / +70	10	12.5	11	13.5	12	14.5
+70 / +80	12.5	15	13.5	16	14.5	17

***According to the FLEXMOV® guarantee.
