FME913 Measuring system cables - CSB® Plastic Bearing Technology

Product properties

● PUR outer jacket
● Shielded
● Flame-retardant
● Notch-resistant
● Oil-resistant and coolant-resistant
● Hydrolysis and microbe-resistant
● PVC and halogen-free
● Temperature： -50/+80℃

Code
Core wire
Outer diameter		mm

Technical data.

General properties

	Bus type	-
	Number of cores and conductor nominal cross-section [mm]	(3×(2×0.14)C+(4×0.14)+(2×0.5))C
	Colour code	3×(2×0.14)C：green/yellow，black/brown，red/orange (4×0.14)：grey，blue，white-yellow，white-black (2×0.5)：brown-red，brown-blue
	Grounding wire	-
	Outer diameter [mm]	10
	Copper index [kg/km]	71
	Weight [kg/km]	137
	Drive technology system	Control Techniques、NUM、Siemens

Dynamic properties

	Min. bending radius[mm], Moving in cable carriers(factor)	7.5×d
	Min. bending radius[mm], Moving in cable carriers	75
	Min. bending radius[mm], Fexible moving(factor)	6×d
	Min. bending radius[mm], Fexible moving	60
	Min. bending radius[mm], Fixed installation(factor)	4×d
	Min. bending radius[mm], Fixed installation	40
	Temperature[℃]， Moving in cable carriers	-25 up to +80
	Temperature[℃]， Fexible moving	-40 up to +80
	Temperature[℃]， Fixed installation	-50 up to +80
	v max.[m/s]， unsupported	10
	v max.[m/s]， gliding	5
	a max.[m/s²]	50
	Travel distance[m]	Unsupported travels and up to 100 m for gliding applications
	Torsion[°]	-

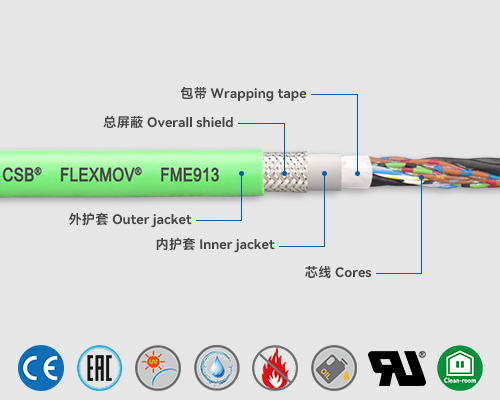

Cable structure

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228).
	Conductor insulation	Mechanically high-quality TPE mixture.
	Conductor construction	According to measuring system specification.
	Color code	According to measuring system specification.
	Element shield foil	-
	Element shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage approx. 70 % linear, approx. 90 % optical
	Element jacket	TPE mixture on pair shielding adapted to suit the requirements in cable carriers.
	Intermediate layer	-
	Inner jacket	TPE mixture on pair shielding adapted to suit the requirements in cable carriers.
	Overall shield foil	-
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage linear approx. 70 %, optical approx. 90 %
	Outer jacket	Low-adhesion mixture on the basis of PUR, especially abrasion-resistant and highly flexible, adapted to suit the requirements in cable carriers.
	Jacket color	Yellow-green RAL6018

Electricity attributes

	Characteristic wave impedance approx. [Ω]	-
	Nominal voltage [V]	50
	Test voltage [V]	500

Properties and approvals

	UV-resistance	Medium
	Hydrolysis-resistance	High
	Cold-resistant [℃]	-50
	Oil resistance	Oil-resistant (following IEC60811-404, tested by SGS), bio-oil-resistant (following VDMA24568, tested by SGS)
	Halogen-free	Following IEC60754
	Flame resistance	According to IEC 60332-1-2、VW-1、FT1
	Silicone-free	Free from silicone which can affect paint adhesion
	REACH	Accordding to the regulation (EC) No. 1907/2006 (REACH)
	Lead-free	Following 2015/863/EU (RoHS-II Tested by SGS)
	EAC	Certificate No.KG 417/043.CN.02.00249
	Cleanroom	Following ISO 14644-1
	CE	Following 2014/35/EU
	UL	Following UL20233, 80℃, 300V

▊FLEXMOV^® FME913 Flexible measuring system cable service life

Double strokes	5 million times	7.5 million times	10 million times
Temperature,from/to [℃]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]
-25 / -15	10	11	12
-15 / +70	7.5	8.5	9.5
+70 / +80	10	11	12

***According to the FLEXMOV® guarantee.
