Measuring system cables FME - CSB® Plastic Bearing Technology

Product properties

● Suitable for highly flexible measuring cables in cable chain
● Outer jacket materials: PVC, PUR
● Shielded measuring system cables
● Operating temperature: -55/+90℃

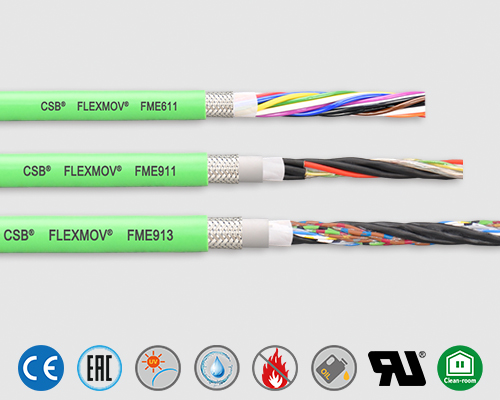

FME911 Measuring system cables

● TPE outer jacket
● Oil-resistant
● Resistant to hydrolysis and microbes
● PVC and halogen-free
● Temperature： -55/+90℃

FME913 Measuring system cables

● PUR outer jacket
● Flame-retardant
● Notch-resistant
● Oil-resistant and coolant-resistant
● Temperature： -50/+80℃

▊ FLEXMOV® Measuring system cables FME

Measurement System Cables are important communication components connecting the drive and control systems. If there is no safe and timely feedback of electronic signals during movement, damage to the equipment may occur. Therefore, measurement system cables have special requirements for EMC protection. If there is continuous movement within the energy chain, the EMC shielding will be severely tested by mechanical stress. In order to ensure that these stresses do not cause failure of the measurement system, reliable structural design is very important, especially for shielding and stranded structures.
FME Measuring system cable multiple special designs：
●Twisted structure with optimized pitch and necessary unit shielding specially designed for the measurement system
●The color code of the core wire meets the requirements of the measurement system
●The measurement system cable adopts a fully overmolded inner sheath
●The shielding layer with optimized braiding angle ensures the highest EMC protection
●The fully extruded outer sheath ensures the stability of the shielding layer and core structure

DURAMOV® Plastic cable carriers

DURAMOV® cable carriers are made of high strength and anti-wear plastics, The cable carriers are used in a variety of motion modes and strokes. DURAMOV® cable carriers can carry FLEXMOV® flexible cables and energy hoses...

Single layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Double layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Three layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

FLEXMOV® Measuring system cables FME

Type PDF

Size 314KB

Time 08-2024

No. CSB/CAT.066

download

150

▊ FLEXMOV® High-flexible Cable Test Video

About 100 million cable cycle durability tests are conducted in the CSB laboratory every year. Different cable application tests are conducted in the CSB laboratory every day, providing verification data and long-term life guarantee for different applications of FLEXMOV® high-flexible cables...

塑料电缆拖链查询器 — DURAMOV®

DURAMOV® Cable Chain Finder V1.1

view tools

▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

高柔性电缆查询器 — FLEXMOV®

FLEXMOV® High-flexible Cable Finder V1.0

view tools

▊FLEXMOV® High-flexible Cable Finder V1.0 is based on a large amount of test data from CSB® laboratories and combined analysis and calculation of cable materials and structural characteristics. You can find suitable cables by selecting sheath materials, cable application parameters and application environment options, and combined with the cable core wire and shielding requirements, the system will output an adapted flexible cable.

▊Since the system's simulation calculation analysis based on theoretical data may not fully meet the input parameters, data verification has certain limitations; CSB® recommends that flexible cables need to be tested and verified again on the equipment to fully meet the actual use requirements.

▊The output data information of the FLEXMOV® high-flexible cable finder is only for reference in design selection and cannot be used as the basis for final cable compliance determination; if you have any questions, please contact CSB® sales engineers.
