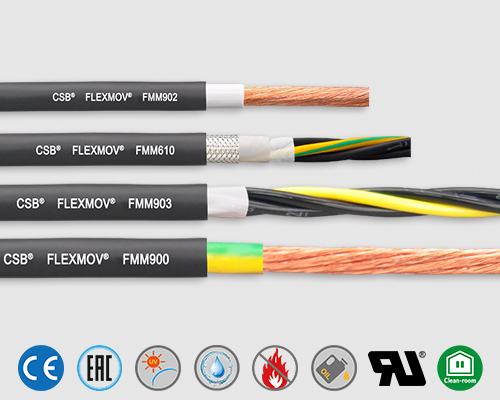

Motor cables FMM - CSB® Plastic Bearing Technology

Product properties

● Suitable for highly flexible motor cables in cable chain
● Outer jacket materials: PVC, TPE
● Shielded and unshielded cables available
● Operating temperature: -55/+90℃

FMM600 Motor cables

● PVC outer jacket
● UV-resistance
● Flame-retardant
● Oil-resistant
● Temperature： -15/+70℃

FMM610 Motor cables

● PVC outer jacket
● UV-resistance
● Shielded
● Flame-retardant
● Temperature： -15/+70℃

FMM900 Motor cables

● TPE outer jacket
● UV-resistance
● Flame-retardant
● Oil-resistant
● Temperature： -50/+90℃

FMM902 Motor cables

● TPE outer jacket
● UV-resistance
● Oil-resistant
● PVC and halogen-free
● Temperature： -55/+90℃

FMM903 Motor cables

● TPE outer jacket
● UV-resistance
● Flame-retardant
● Oil-resistant
● Temperature： -50/+90℃

FMM907 Motor cables

● TPE outer jacket
● UV-resistance
● Oil-resistant
● PVC and halogen-free
● Temperature： -55/+90℃

FMM912 Motor cables

● TPE outer jacket
● Shielded
● UV-resistance
● Oil-resistant
● Temperature： -55/+90℃

FMM917 Motor cables

● TPE outer jacket
● Shielded
● UV-resistance
● Oil-resistant
● Temperature： -55/+90℃

▊ FLEXMOV® Motor cables FMM

Motor cables are common accessories in drive technology and are used in automation technology and mechanical structures. As today's sports requirements are getting higher and higher, in order to ensure that power cables can operate safely and stably for millions of times, the cables need to have special conductors, insulation and core wire stranding designs. As the speed of today's IGBT inverters continues to increase, low-capacitance insulating materials have become crucial.
FMM Motor cable multiple special designs：
●Use low capacitance insulating materials
●Optimized short-pitch stranded core wires combined with good wear-resistant materials
●Shielded power cables adopt fully overmolded inner sheath
●Optimized The braided angle shield ensures the highest EMC protection
●The unshielded power cable uses a fully extruded outer sheath to ensure the stability of the twisted structure

DURAMOV® Plastic cable carriers

DURAMOV® cable carriers are made of high strength and anti-wear plastics, The cable carriers are used in a variety of motion modes and strokes. DURAMOV® cable carriers can carry FLEXMOV® flexible cables and energy hoses...

Single layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Double layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Three layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

FLEXMOV® Motor cables FMM

Type PDF

Size 618KB

Time 09-2024

No. CSB/CAT.066

download

155

▊ FLEXMOV® High-flexible Cable Test Video

About 100 million cable cycle durability tests are conducted in the CSB laboratory every year. Different cable application tests are conducted in the CSB laboratory every day, providing verification data and long-term life guarantee for different applications of FLEXMOV® high-flexible cables...

塑料电缆拖链查询器 — DURAMOV®

DURAMOV® Cable Chain Finder V1.1

view tools

▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

高柔性电缆查询器 — FLEXMOV®

FLEXMOV® High-flexible Cable Finder V1.0

view tools

▊FLEXMOV® High-flexible Cable Finder V1.0 is based on a large amount of test data from CSB® laboratories and combined analysis and calculation of cable materials and structural characteristics. You can find suitable cables by selecting sheath materials, cable application parameters and application environment options, and combined with the cable core wire and shielding requirements, the system will output an adapted flexible cable.

▊Since the system's simulation calculation analysis based on theoretical data may not fully meet the input parameters, data verification has certain limitations; CSB® recommends that flexible cables need to be tested and verified again on the equipment to fully meet the actual use requirements.

▊The output data information of the FLEXMOV® high-flexible cable finder is only for reference in design selection and cannot be used as the basis for final cable compliance determination; if you have any questions, please contact CSB® sales engineers.
