Bus cables FMB - CSB® Plastic Bearing Technology

Product properties

● Suitable for highly flexible bus cables in cable carriers
● Outer jacket materials: PVC, PUR, TPE
● Shielded and flame-retardant bus cables
● Operating temperature: -50/+70℃

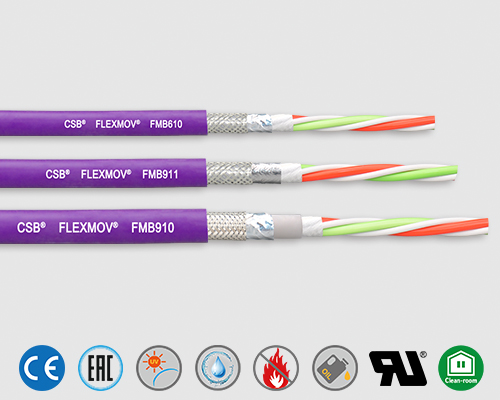

FMB610 Bus cables

● PVC outer jacket
● Flame-retardant
● Oil-resistant
● UV-resistance
● Temperature： -15/+70℃

FMB910 Bus cables

● TPE outer jacket
● Flame-retardant
● UV-resistance
● Hydrolysis and microbe-resistant
● Temperature： -50/+70℃

FMB911 Bus cables

● PUR outer jacket
● Flame-retardant
● Notch-resistant
● UV-resistance
● Temperature： -50/+70℃

▊ FLEXMOV® Bus cables FMB

Bus cables: the rapid development of Ethernet communications in the industrial field has placed extremely high requirements on the design and production of fieldbus cables. This is the only way to avoid mechanical damage to the cable during operation and signal loss during data transmission. Damage to the shielding layer and changes in characteristic wave impedance will increase the attenuation, which will lead to a sharp drop in the data transmission rate. Since the attenuation value will continue to change during the movement of the cable, troubleshooting becomes very difficult.
FMB Bus cable multiple special designs：
●The insulating material used will not change the insulation performance of the cable even after millions of runs
●Optimized core wire, meeting bus standards and mechanical movement requirements
●Specially designed and optimized braiding angle Total shielding layer
●The fully extruded outer sheath ensures the stability of the shielding layer and the twisted structure

DURAMOV® Plastic cable carriers

DURAMOV® cable carriers are made of high strength and anti-wear plastics, The cable carriers are used in a variety of motion modes and strokes. DURAMOV® cable carriers can carry FLEXMOV® flexible cables and energy hoses...

Single layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Double layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

Three layer cable clamp

● Can be integrated with C03 series connectors and C-profiles

● A compact modular design of easy installation, less space, cost-effective

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

FLEXMOV® Bus cables FMB

Type PDF

Size 358KB

Time 08-2024

No. CSB/CAT.066

download

158

▊ FLEXMOV® High-flexible Cable Test Video

About 100 million cable cycle durability tests are conducted in the CSB laboratory every year. Different cable application tests are conducted in the CSB laboratory every day, providing verification data and long-term life guarantee for different applications of FLEXMOV® high-flexible cables...

塑料电缆拖链查询器 — DURAMOV®

DURAMOV® Cable Chain Finder V1.1

view tools

▊DURAMOV® Cable Chain Finder[V1.1] is based on the analysis and calculation of a large number of test data in CSB® laboratory. You can calculations filler and installation data by entering parameters such as cables, gas tubes, oil tubes and installation data, The system will analyze your design data and finally output the adaptation cable chains.
▊Because the system calculate and analyze based on lab data, it can't exactly meet the ractual use requirements absolutly. The system data verification has certain limitations; CSB® recommends that the cable chains must be tested again to verify whether it meets the actual use requirements.
▊DURAMOV® Cable Chain Finder output data information is only for design reference, and can not be used as the final standard for determining the cable chains conformity, If you have any questions, please contact CSB® sales engineers.

高柔性电缆查询器 — FLEXMOV®

FLEXMOV® High-flexible Cable Finder V1.0

view tools

▊FLEXMOV® High-flexible Cable Finder V1.0 is based on a large amount of test data from CSB® laboratories and combined analysis and calculation of cable materials and structural characteristics. You can find suitable cables by selecting sheath materials, cable application parameters and application environment options, and combined with the cable core wire and shielding requirements, the system will output an adapted flexible cable.

▊Since the system's simulation calculation analysis based on theoretical data may not fully meet the input parameters, data verification has certain limitations; CSB® recommends that flexible cables need to be tested and verified again on the equipment to fully meet the actual use requirements.

▊The output data information of the FLEXMOV® high-flexible cable finder is only for reference in design selection and cannot be used as the basis for final cable compliance determination; if you have any questions, please contact CSB® sales engineers.
