FMB910 Bus cables - CSB® Plastic Bearing Technology

Product properties

● TPE outer jacket
● Shielded
● Flame-retardant
● Oil-resistant
● UV-resistance
● Hydrolysis and microbe-resistant
● Temperature： -50/+70℃

Code
Core wire
Outer diameter		mm

Technical data.

General properties

	Bus type	Profibus
	Number of cores and conductor nominal cross-section [mm]	(2×0.25)C
	Colour code	2×0.25：red，green
	Grounding wire	-
	Outer diameter [mm]	9
	Copper index [kg/km]	33
	Weight [kg/km]	92
	Drive technology system	-

Dynamic properties

	Min. bending radius[mm], Moving in cable carriers(factor)	10×d
	Min. bending radius[mm], Moving in cable carriers	90
	Min. bending radius[mm], Fexible moving(factor)	8×d
	Min. bending radius[mm], Fexible moving	72
	Min. bending radius[mm], Fixed installation(factor)	5×d
	Min. bending radius[mm], Fixed installation	45
	Temperature[℃]， Moving in cable carriers	-35 up to +70
	Temperature[℃]， Fexible moving	-45 up to +70
	Temperature[℃]， Fixed installation	-50 up to +70
	v max.[m/s]， unsupported	10
	v max.[m/s]， gliding	6
	a max.[m/s²]	100
	Travel distance[m]	Unsupported travels and up to 400m and more for gliding applications
	Torsion[°]	-

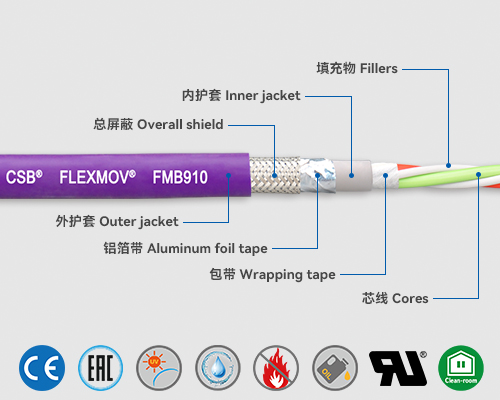

Cable structure

	Conductor	Conductor consisting of bare copper wires (according to DIN EN 60228).
	Conductor insulation	According to bus specification.
	Conductor construction	According to bus specification.
	Color code	According to bus specification.
	Element shield foil	-
	Element shield	-
	Element jacket	-
	Intermediate layer	polymer tape taping over the outer layer
	Inner jacket	TPE mixture adapted to suit the requirements in cable carriers
	Overall shield foil	Aluminum foil taping over the outer layer
	Overall shield	Extremely bending-resistant braiding made of tinned copper wires. Coverage linear approx. 70 %, optical approx. 90 %
	Outer jacket	Low-adhesion mixture on the basis of TPE, especially abrasion-resistant and highly flexible, adapted to suit the requirements in cable carriers.
	Jacket color	Red lilac (similar to RAL4001)

Electricity attributes

	Characteristic wave impedance approx. [Ω]	150
	Nominal voltage [V]	50
	Test voltage [V]	500

Properties and approvals

	UV-resistance	Medium
	Hydrolysis-resistance	High
	Cold-resistant [℃]	-50
	Oil resistance	Oil-resistant (following IEC60811-404, tested by SGS), bio-oil-resistant (following VDMA24568, tested by SGS)
	Halogen-free	-
	Flame resistance	According to IEC 60332-1-2、VW-1、FT1 FMB910.030/FMB910.065/FMB910.066: 符合According to IEC 60332-1-2，FT2
	Silicone-free	Free from silicone which can affect paint adhesion
	REACH	Accordding to the regulation (EC) No. 1907/2006 (REACH)
	Lead-free	Following 2015/863/EU (RoHS-II Tested by SGS)
	EAC	Certificate No.KG 417/043.CN.02.00249
	Cleanroom	Following ISO 14644-1
	CE	Following 2014/35/EU
	UL	Following UL21002, 105℃, 300V

▊FLEXMOV^® FMB910 Flexible bus cable service life

Double strokes	5 million times		7.5 million times		10 million times
Temperature, from/to [℃]	FMB910.001-.049	FMB910.050-.070	FMB910.001-.049	FMB910.050-.070	FMB910.001-.049	FMB910.050-.070
Temperature, from/to [℃]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]	R min. [factor x d]
-35 / -25	12.5	15	13.5	16	14.5	17
-25 / +60	10	12.5	11	13.5	12	14.5
+60 / +70	12.5	15	13.5	16	14.5	17

***According to the FLEXMOV® guarantee.
