C02E.35 ESD universal cable carriers - CSB® Plastic Bearing Technology

Product properties

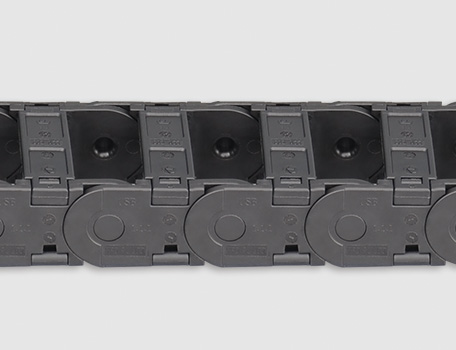

C02E.35 ESD universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Electro-Static discharge，Surface resistance <10⁹Ω

● Long-term application temperature：-40/+120℃

● Inner height：35 mm
● Inner width：50-150 mm
● Bend radius：63-250 mm
● Link pitch：56 mm

Standard products

C02E.35 ESD universal cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

▊C02E.35 ESD universal cable carriers

▊Product features

● Electro-Static discharge，Surface resistance <10⁹Ω

● Inner height 35mm, Inner width from 50mm to 150mm

● Easy assembly: Chain links openable along inner or outer radius from both sides

● High strength: large pin/bore and crossbar with high locking force

● Long service life: lateral sliding surfaces design

● For long unsupported lengths: strength and double stop-dog design

● Universal connection: many mounting options with or without strain relief

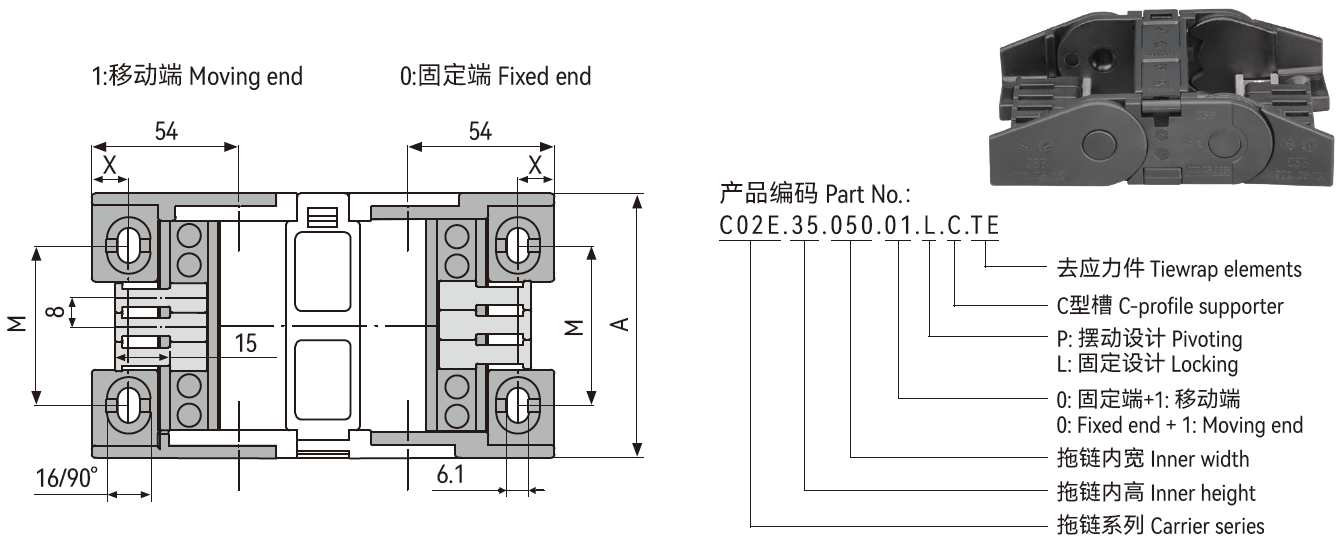

▊Mounting bracket dimensions

Part No. Locking	Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C02E.35.050.01.L.C.TE	C02E.35.050.01.P.C.TE	50	68	17	30	5
C02E.35.060.01.L.C.TE	C02E.35.060.01.P.C.TE	60	78	17	40	6
C02E.35.075.01.L.C.TE	C02E.35.075.01.P.C.TE	75	93	17	55	8
C02E.35.100.01.L.C.TE	C02E.35.100.01.P.C.TE	100	116	17	80	11
C02E.35.125.01.L.C.TE	C02E.35.125.01.P.C.TE	125	143	17	105	14
C02E.35.150.01.L.C.TE	C02E.35.150.01.P.C.TE	150	168	17	130	17

▊Installation dimensions

Unsupported length	≤ 2.8m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	Inapplicable	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 40m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 1.5m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

▊Installation dimensions

ESD universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	063	075	100	125	150	175	200	250
H	176	200	250	300	350	400	450	550
D	172	184	209	234	259	284	309	359
K	310	350	430	505	585	665	745	900

*The required clearance height：H_F=H+25mm（负载 1.5kg/m)

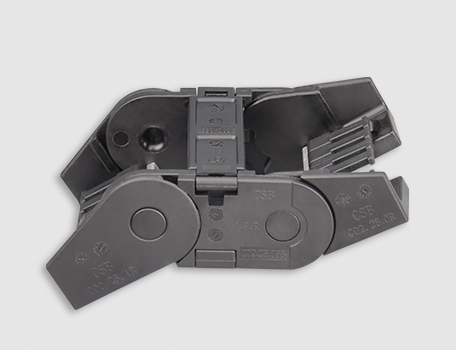

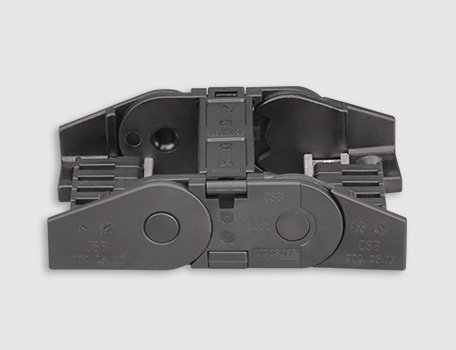

▊Mounting bracket installation optional

ESD universal cable chains mounting bracket installation optional

*C02E.35 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

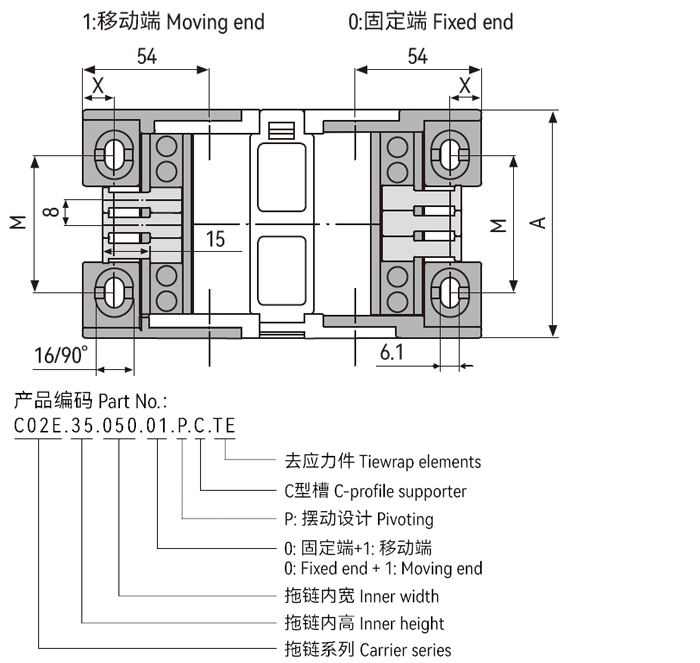

▊C02E.35.Bi.01.P.C

ESD universal cable chains special optional

*For unsupported and gliding applications

ESD universal cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
