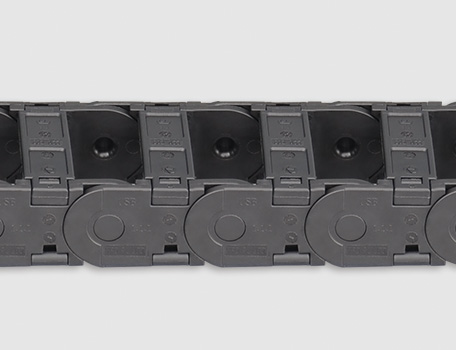

C02.25 Universal cable carriers - CSB® Plastic Bearing Technology

Product properties

C02.25 universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Long-term application temperature：-40/+120℃
● Inner height：25 mm
● Inner width：38-125 mm
● Bend radius：55-250 mm
● Link pitch：46 mm

Electrically conductive ESD/ATEX version C02E.25 upon request

Standard products

C02.25 Universal cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

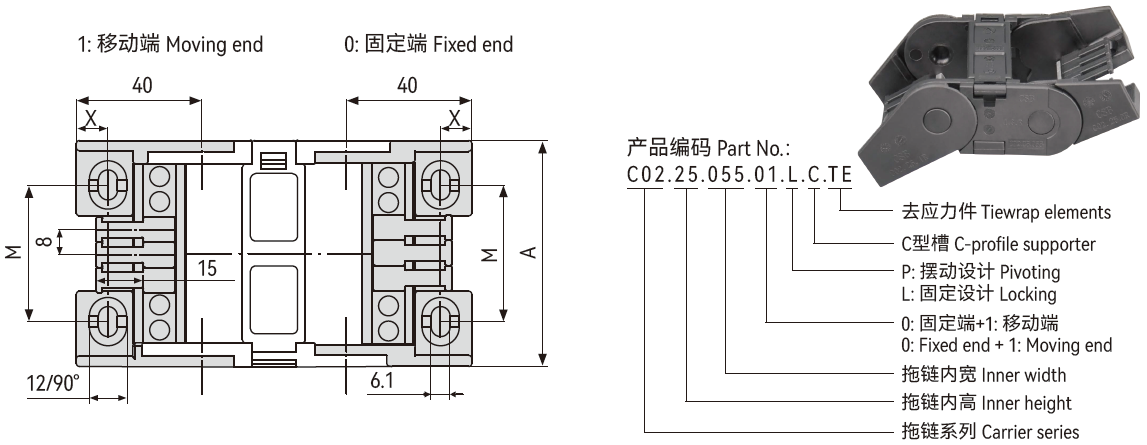

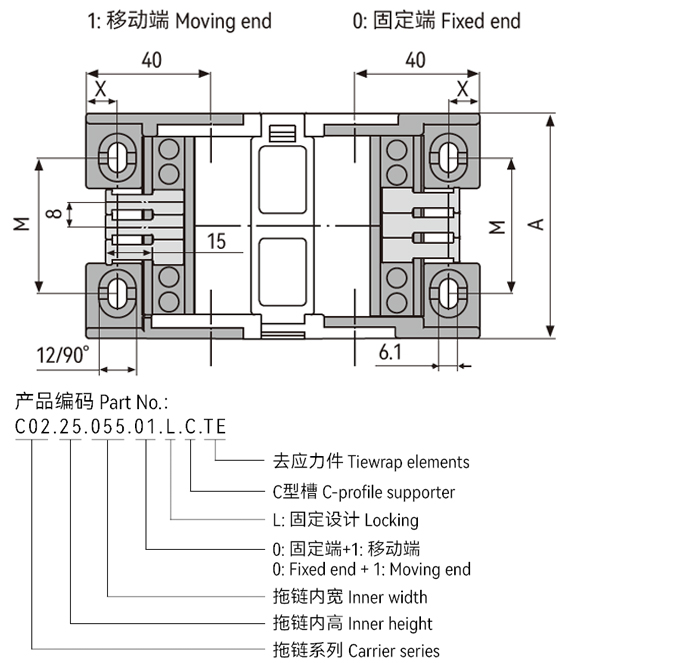

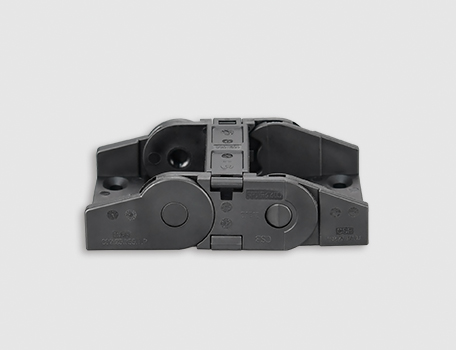

▊Mounting brackets - Locking


Part No. Locking	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C02.25.035.01.L.C.TE	38	55	10	25	4
C02.25.045.01.L.C.TE	48	65	10	35	5
C02.25.055.01.L.C.TE	57	74	10	44	7
C02.25.065.01.L.C.TE	67	82	10	52	8
C02.25.075.01.L.C.TE	77	94	10	64	9
C02.25.085.01.L.C.TE	87	102	10	72	10
C02.25.100.01.L.C.TE	103	120	10	90	12
C02.25.125.01.L.C.TE	125	142	10	112	15

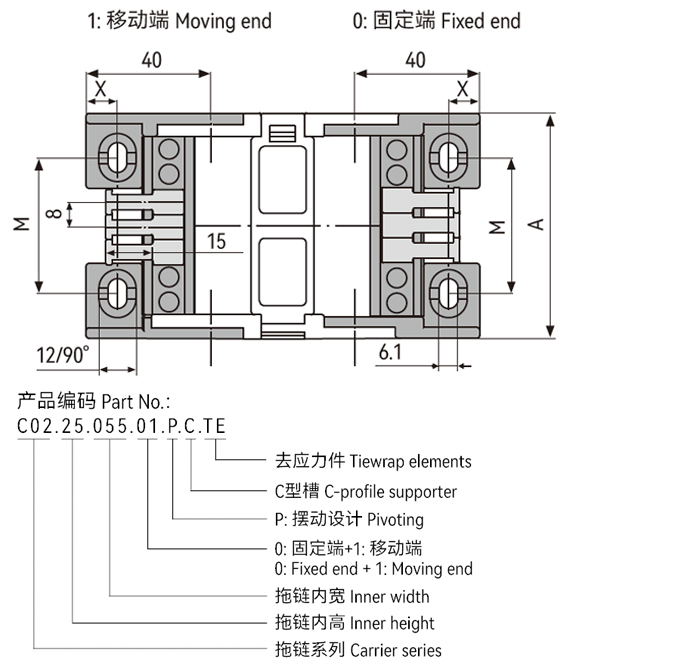

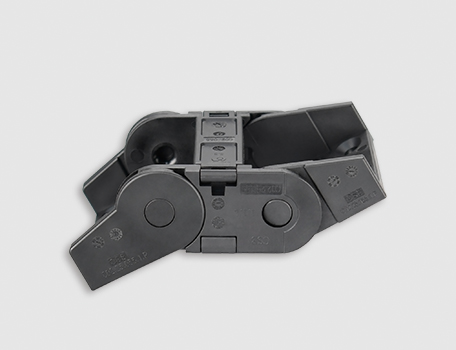

▊Mounting brackets - Pivoting


Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C02.25.035.01.P.C.TE	38	55	10	25	4
C02.25.045.01.P.C.TE	48	65	10	35	5
C02.25.055.01.P.C.TE	57	74	10	44	7
C02.25.065.01.P.C.TE	67	82	10	52	8
C02.25.075.01.P.C.TE	77	94	10	64	9
C02.25.085.01.P.C.TE	87	102	10	72	10
C02.25.100.01.P.C.TE	103	120	10	90	12
C02.25.125.01.P.C.TE	125	142	10	112	15

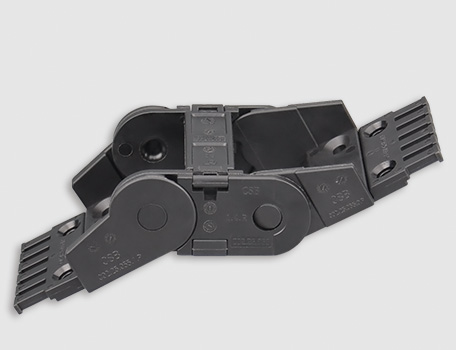

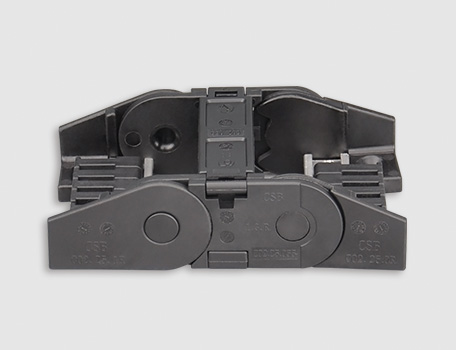

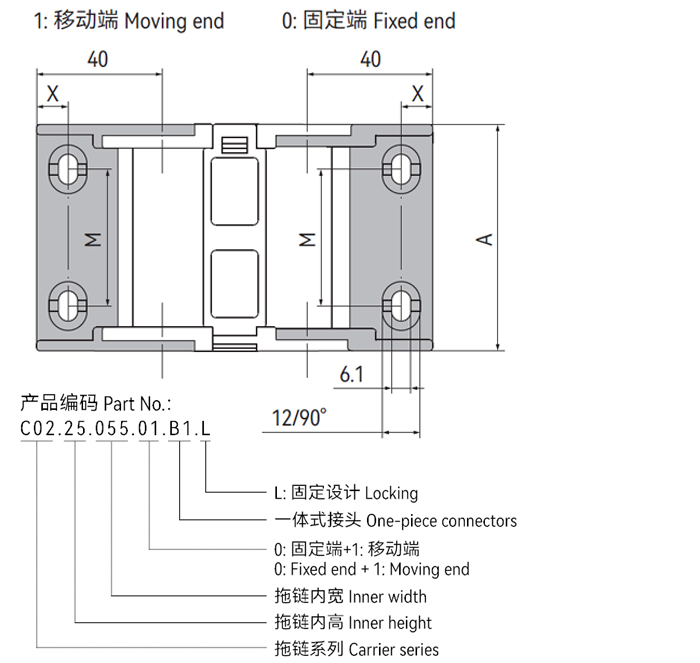

▊One-piece connectors mounting brackets - Locking


Part No. Locking	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]
C02.25.035.01.B1.L.TP	38	54	10	24.5
C02.25.045.01.B1.L.TP	48	64	10	34.5
C02.25.055.01.B1.L.TP	57	73	10	43.5
C02.25.065.01.B1.L.TP	67	83	10	53.5
C02.25.075.01.B1.L.TP	77	93	10	63.5
C02.25.085.01.B1.L.TP	87	103	10	73.5
C02.25.100.01.B1.L.TP	103	119	10	89.5
C02.25.125.01.B1.L.TP	125	141	10	111.5

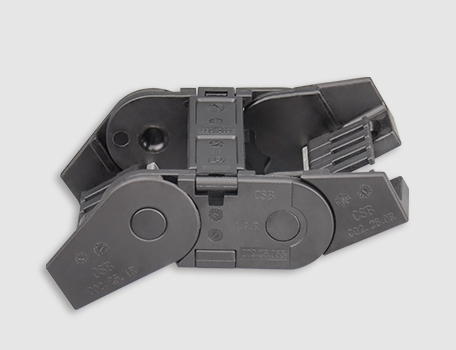

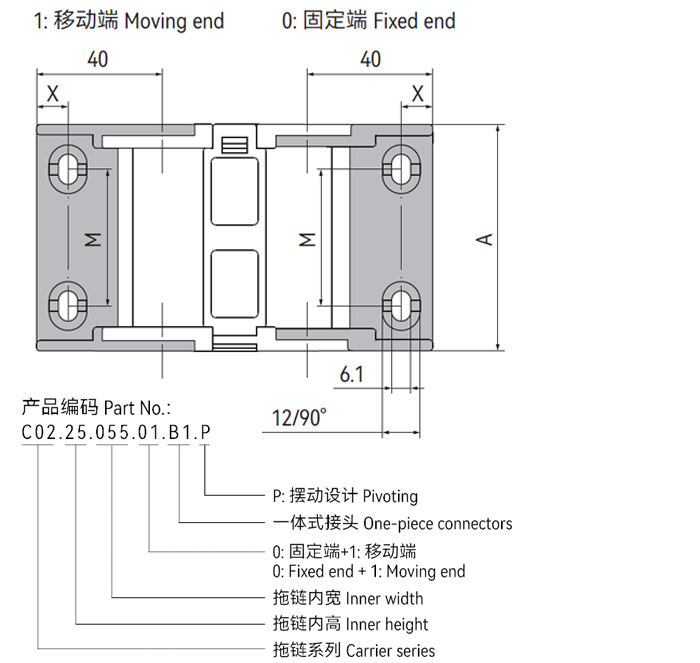

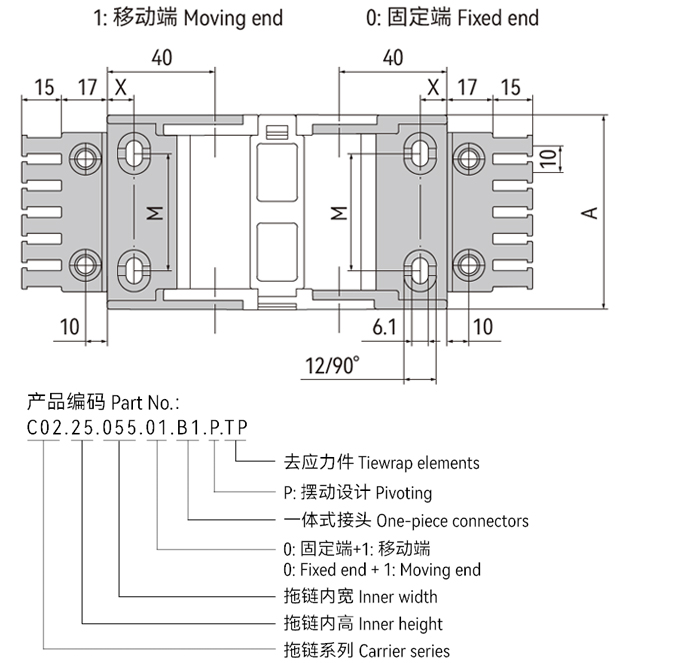

▊One-piece connectors mounting brackets - Pivoting


Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]
C02.25.035.01.B1.P.TP	38	54	10	24.5
C02.25.045.01.B1.P.TP	48	64	10	34.5
C02.25.055.01.B1.P.TP	57	73	10	43.5
C02.25.065.01.B1.P.TP	67	83	10	53.5
C02.25.075.01.B1.P.TP	77	93	10	63.5
C02.25.085.01.B1.P.TP	87	103	10	73.5
C02.25.100.01.B1.P.TP	103	119	10	89.5
C02.25.125.01.B1.P.TP	125	141	10	111.5

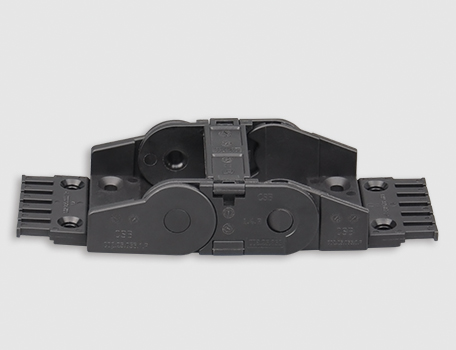

▊One-piece connectors tiewrap plates


Part No. Pivoting	Inner width Bi [mm]	A [mm]	Number of teeth [mm]
C02.1825.035.TP	35	40	4
C02.1825.045.TP	45	50	5
C02.1825.055.TP	55	60	6
C02.1825.065.TP	65	70	7
C02.1825.075.TP	75	80	8
C02.1825.085.TP	85	90	9
C02.1825.100.TP	100	100	10
C02.1825.125.TP	125	120	12

▊Installation dimensions

Unsupported length	≤ 2.4m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	10-120m	Speed / acceleration FL_B	≤ 3 [m/s] / 5 [m/s² ]
Vertical hanging	≤ 30m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 2.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 1.0m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① Blank: Openable along the both sides. N: Onlyopenable along the inner radius. W: Only openable along the outer radius.
② Upon request for NC version without camper.
③ SV0203: Install 3pcs vertical separators every other 2pcs blank links.
④ SH01: Horizontal separator 1pc installed in the middle hole.

▊ Installation

▊Installation dimensions

Universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	055	075	100	125	150	175	200	225	250
H	145	185	235	285	335	385	435	485	535
D	142	162	187	212	237	262	287	312	337
K	265	330	410	485	565	645	725	800	880

*The required clearance height：H_F=H+25mm（Fill weight 1.5kg/m)

▊C02.25 For long travels gliding applications | 10-120m


R	055	075	100	125	150	175	200	225	250
H2	110	150	100	100	100	100	100	100	100
D2	142	162	380	440	590	755	950	1040	1130
K2	265	330	644	736	1012	1242	1472	1610	1794
△CL	-	-	204	244	364	504	674	754	804

▊Mounting bracket installation optional

Universal cable chains mounting bracket installation optional

*C02.25 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C02.25.Bi.01.P.C

Universal cable chains special optional

*For unsupported and gliding applications

Universal cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
