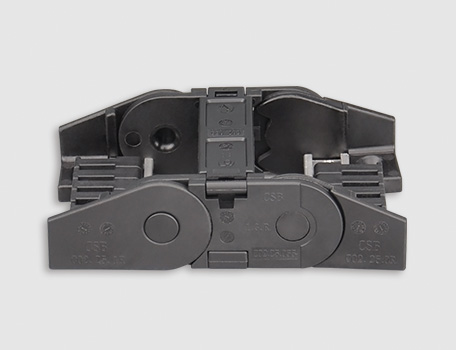

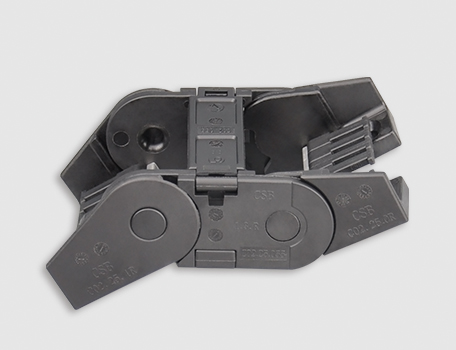

C02.35 Universal cable carriers - CSB® Plastic Bearing Technology

Product properties

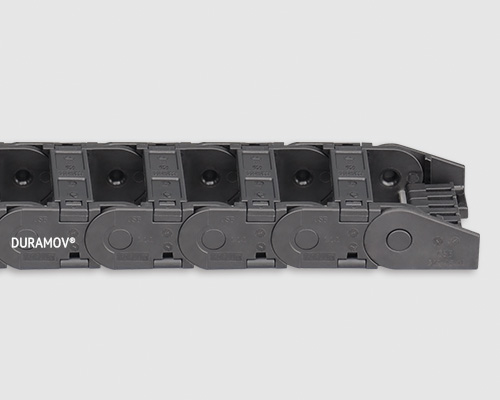

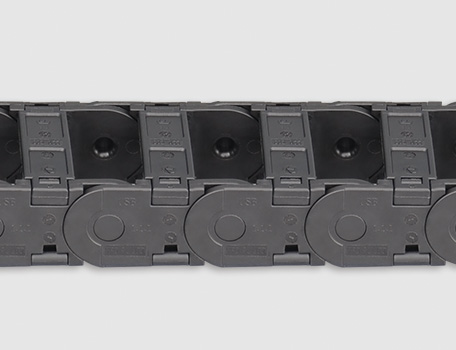

C02.35 universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Long-term application temperature：-40/+120℃
● Inner height：35 mm
● Inner width：50-150 mm
● Bend radius：63-250 mm
● Link pitch：56 mm

Electrically conductive ESD/ATEX version C02E.35 upon request

Standard products

C02.35 Universal cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

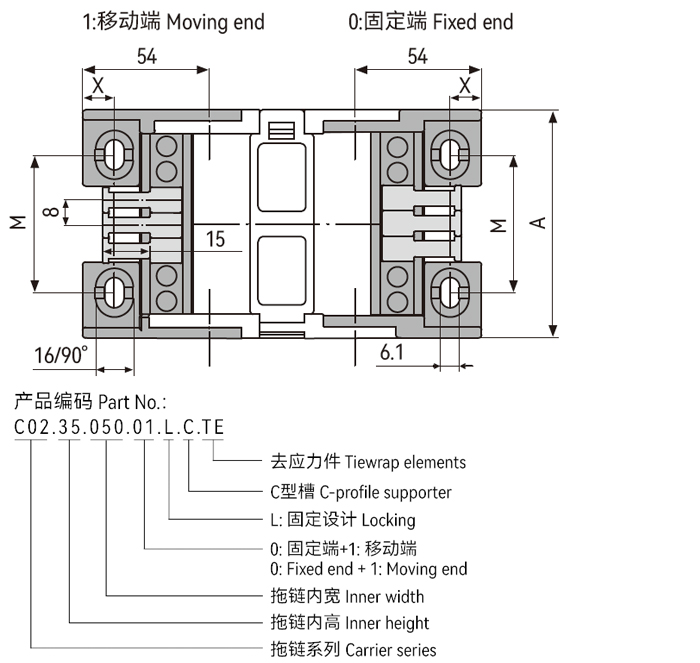

▊Mounting brackets - Locking


Part No. Locking	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C02.35.050.01.L.C.TE	50	68	17	30	5
C02.35.060.01.L.C.TE	60	78	17	40	6
C02.35.075.01.L.C.TE	75	93	17	55	8
C02.35.100.01.L.C.TE	100	116	17	80	11
C02.35.125.01.L.C.TE	125	143	17	105	14
C02.35.150.01.L.C.TE	150	168	17	130	17

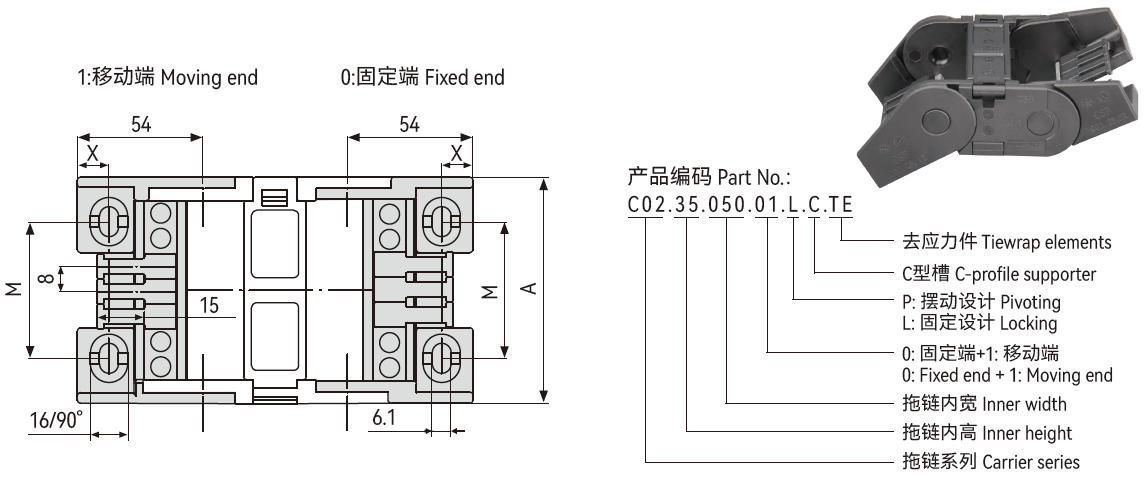

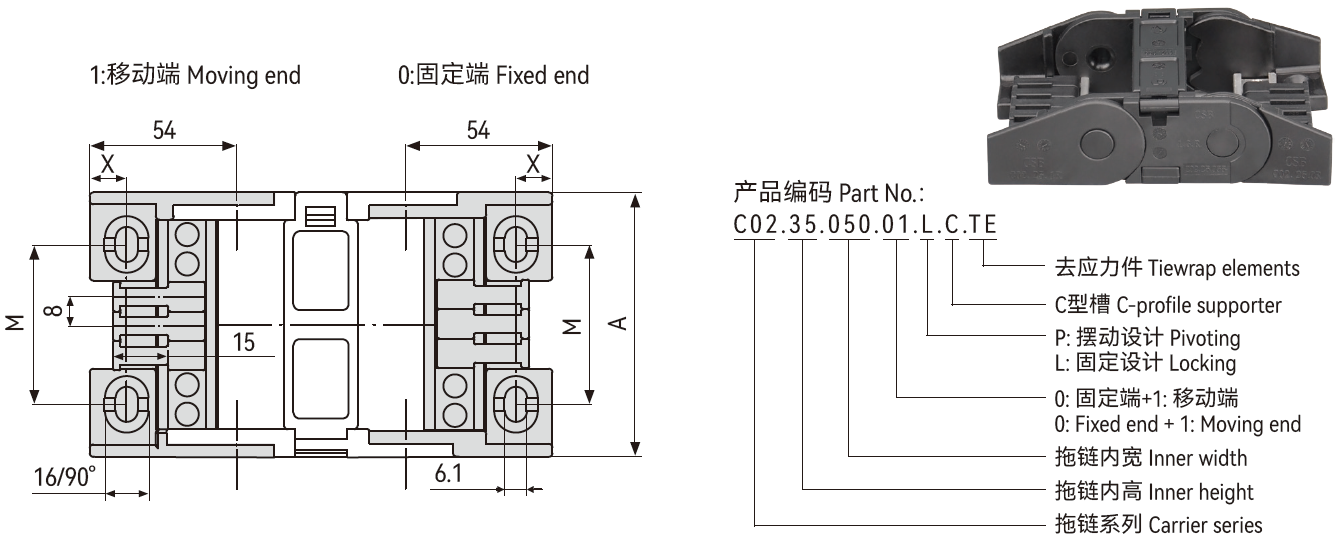

▊Mounting brackets - Pivoting

Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C02.35.050.01.P.C.TE	50	68	17	30	5
C02.35.060.01.P.C.TE	60	78	17	40	6
C02.35.075.01.P.C.TE	75	93	17	55	8
C02.35.100.01.P.C.TE	100	116	17	80	11
C02.35.125.01.P.C.TE	125	143	17	105	14
C02.35.150.01.P.C.TE	150	168	17	130	17

▊Installation dimensions

Unsupported length	≤ 2.8m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	10-150m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 40m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 1.5m	Flammability Class	UL94 HB

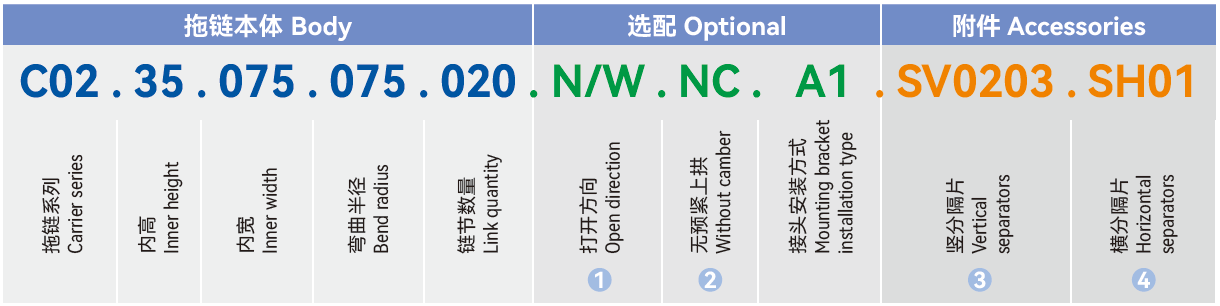

▊Order code for pre-assembled cable carriers


① Blank: Openable along the both sides. N: Onlyopenable along the inner radius. W: Only openable along the outer radius.
② Upon request for NC version without camper.
③ SV0203: Install 3pcs vertical separators every other 2pcs blank links.
④ SH01: Horizontal separator 1pc installed in the middle hole.

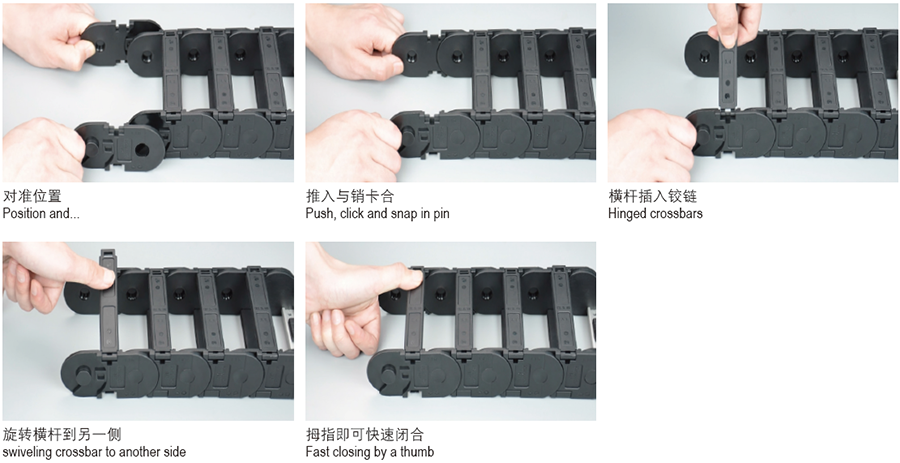

▊ Installation

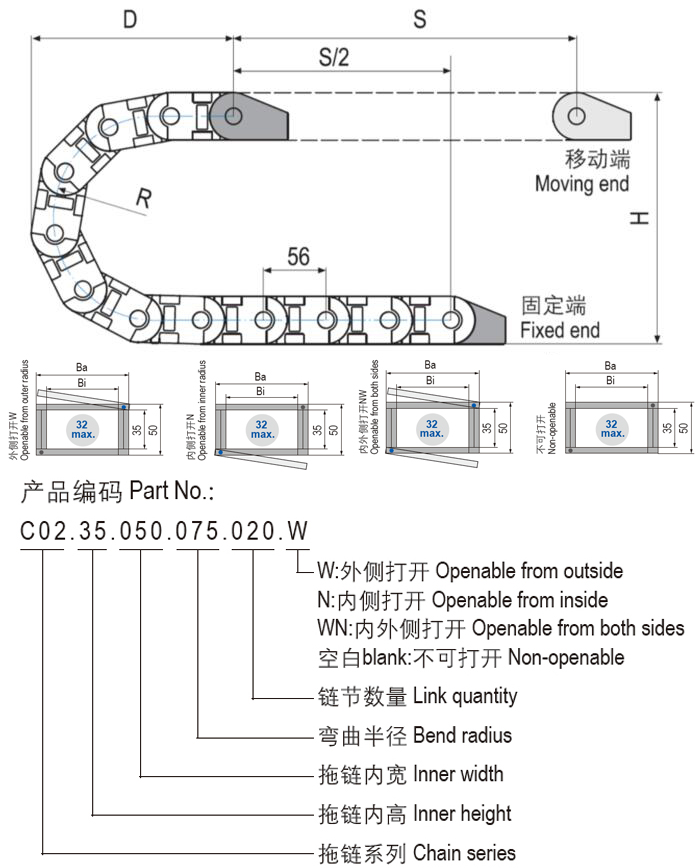

▊Installation dimensions

Universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	063	075	100	125	150	175	200	250
H	176	200	250	300	350	400	450	550
D	172	184	209	234	259	284	309	359
K	310	350	430	505	585	665	745	900

*The required clearance height：H_F=H+25mm（负载 1.5kg/m)

▊C02.35 For long travels gliding applications | 10-150m


R	063	075	100	125	150	175	200	250
H2	130	150	166	166	166	166	166	166
D2	140	150	350	475	500	655	770	950
K2	335	375	616	784	896	1120	1288	1624
△CL	-	-	1444	244	244	374	464	594

▊Mounting bracket installation optional

Universal cable chains mounting bracket installation optional

*C02.35 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

▊C02.35.Bi.01.P.C

Universal cable chains special optional

*For unsupported and gliding applications

Universal cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
