Product properties

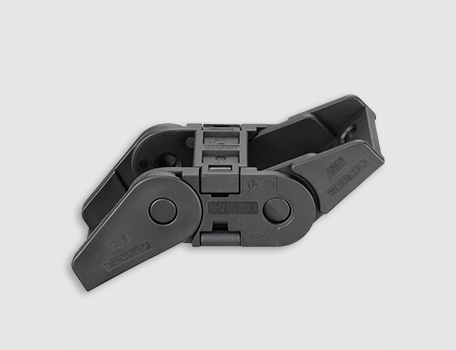

C02E.18 ESD universal cable carriers for a wide range of applications, easy and versatile assembly combined with ruggedness - high strength paired with quieter motion - long cable life and many mounting options.

● Electro-Static discharge，Surface resistance <10⁹Ω

● Long-term application temperature：-40/+120℃

● Inner height：18 mm
● Inner width：38-125 mm
● Bend radius：38-250 mm
● Link pitch：40 mm

Standard products

C02E.18 ESD universal cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

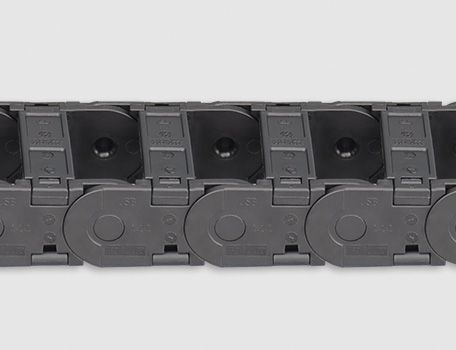

▊C02E.18 ESD universal cable carriers

▊Product features

● Electro-Static discharge，Surface resistance <10⁹Ω

● Inner height 18mm, Inner width from 38mm to 125mm

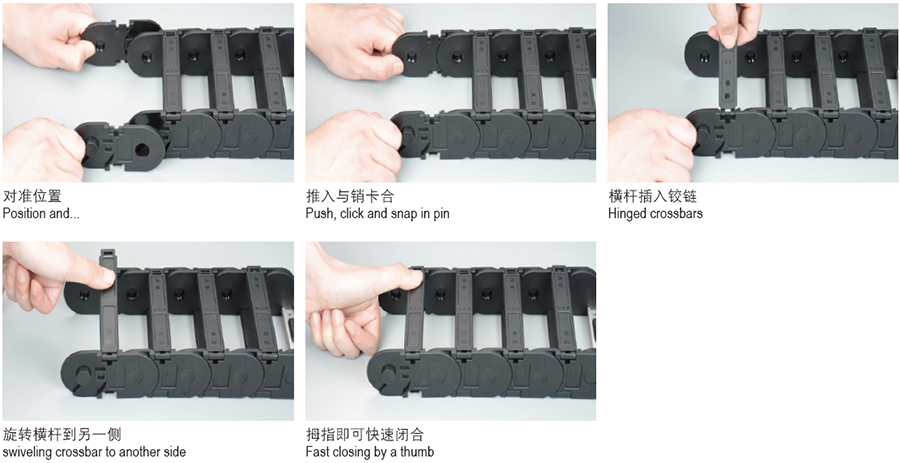

● Easy assembly: Chain links openable along inner or outer radius from both sides

● High strength: large pin/bore and crossbar with high locking force

● Long service life: lateral sliding surfaces design

● For long unsupported lengths: strength and double stop-dog design

● Universal connection: many mounting options with or without strain relief

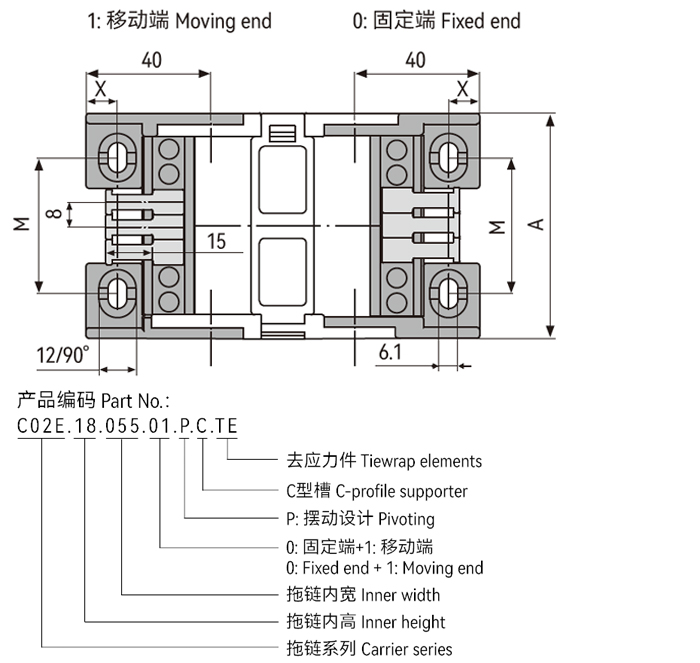

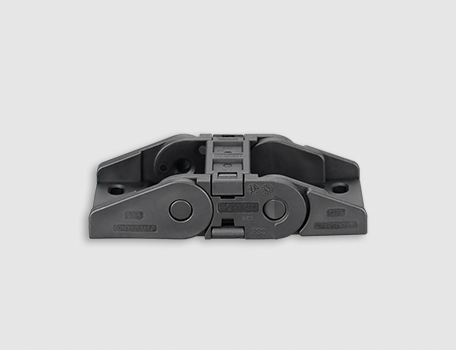

▊Mounting bracket dimensions

Part No. Locking	Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C02.18.035.01.L.C.TE	C02.18.035.01.P.C.TE	38	54	9	24.5	4
C02.18.045.01.L.C.TE	C02.18.045.01.P.C.TE	48	64	9	34.5	5
C02.18.055.01.L.C.TE	C02.18.055.01.P.C.TE	57	73	9	43.5	6
C02.18.065.01.L.C.TE	C02.18.065.01.P.C.TE	67	81	9	51.5	7
C02.18.075.01.L.C.TE	C02.18.075.01.P.C.TE	77	93	9	63.5	9
C02.18.085.01.L.C.TE	C02.18.085.01.P.C.TE	87	101	9	71.5	10
C02.18.100.01.L.C.TE	C02.18.100.01.P.C.TE	103	119	9	89.5	12
C02.18.125.01.L.C.TE	C02.18.125.01.P.C.TE	125	141	9	111.5	14

▊Installation dimensions

Unsupported length	≤ 1.8m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	Inapplicable	Speed / acceleration FL_B	≤ 3 [m/s] / 5 [m/s² ]
Vertical hanging	≤ 25m	Sliding speed / acceleration	Inapplicable
Vertical standing	≤ 2.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 1.0m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

▊Installation dimensions

ESD universal cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	038	048	075	100	125	150
H	104	124	175	228	278	328
D	88	101	130	153	179	204
K	200	230	315	395	473	551

*The required clearance height：H_F=H+25mm（Fill weight 1.5kg/m)

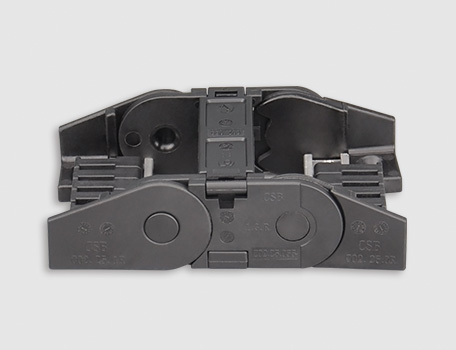

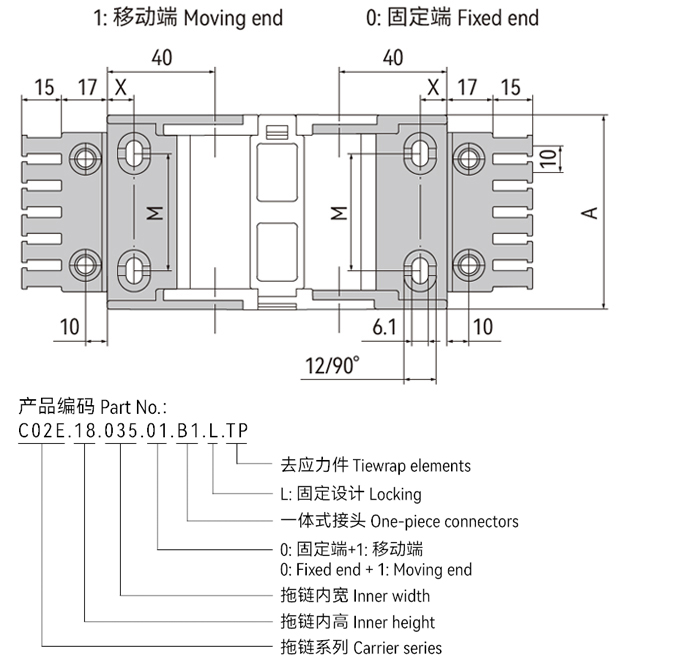

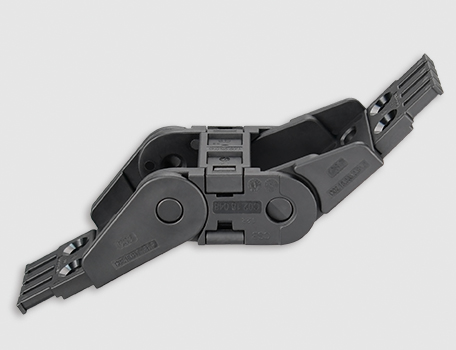

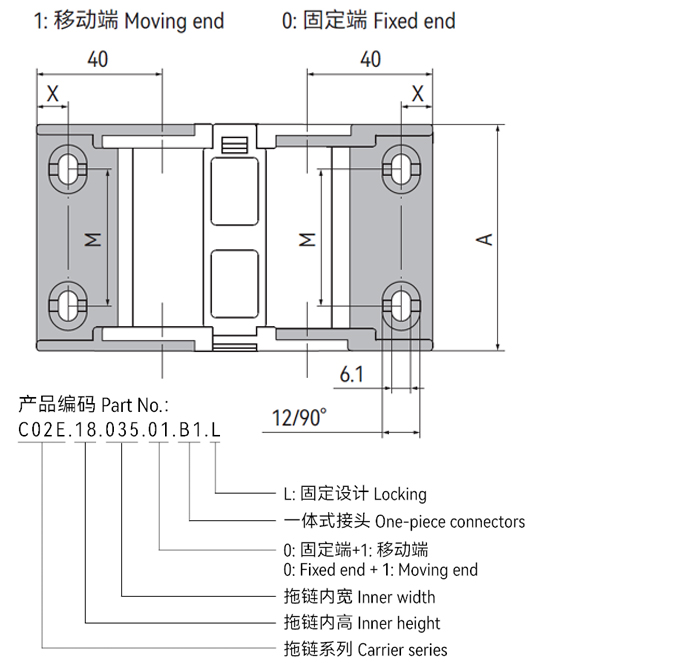

▊Mounting bracket installation optional

ESD universal cable chains mounting bracket installation optional

*C02E.18 Possible installation configurations
*A1|A2|A3|A4 Please indicate installation code for pre-assembled chains

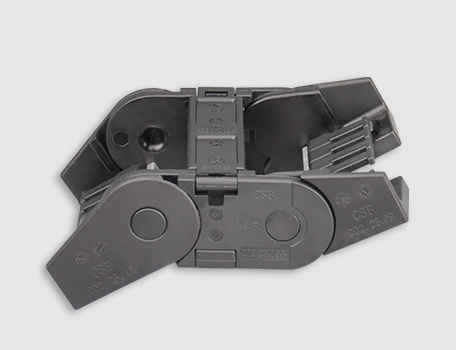

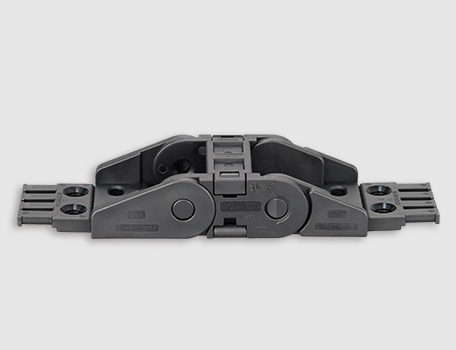

▊C02E.18.Bi.01.P.C

ESD universal cable chains special optional

*For unsupported and gliding applications

ESD universal cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C02 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C02 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
