Product properties

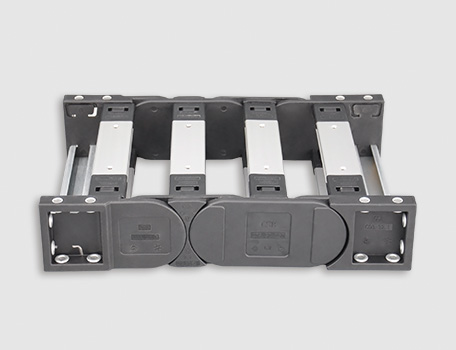

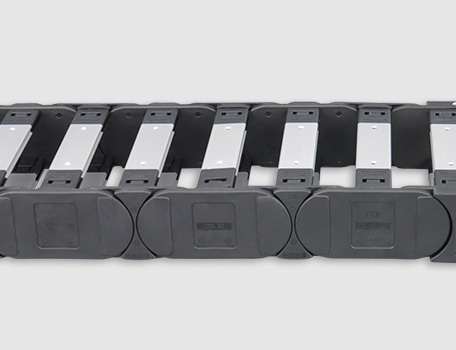

C03H.42 high-strength cable carrier is an improved version based on C03 cable carrier. High-strength materials and stable structural design for C03H higher load performance. The special crossbar design allows the inner width of the carrier to be freely defined.

● Long-term application temperature：-40/+120℃

● Inner height：42 mm
● Inner width：200-400 mm
● Bend radius：75-350 mm
● Link pitch：67 mm

Standard products

C03H.42 High-strength cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

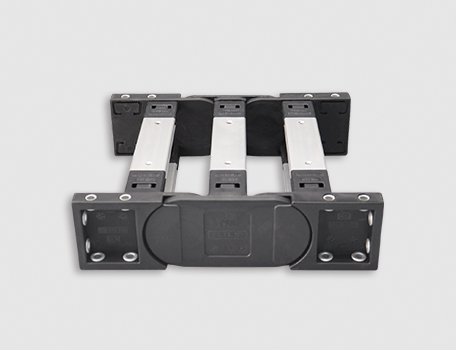

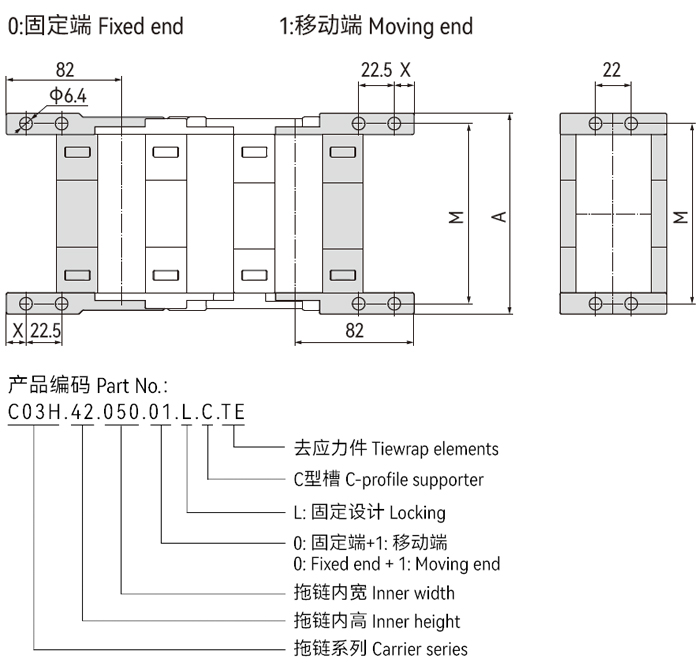

▊Mounting brackets - Locking


A2 The number of links is even	A1 The number of links is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
Part No. （ Locking ）	Part No. （ Locking ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
C03H.42.200.01.L.C.TE	C03H.42.200.11.L.C.TE	200	227	15	216	13
C03H.42.212.01.L.C.TE	C03H.42.212.11.L.C.TE	212	239	15	228	14
C03H.42.230.01.L.C.TE	C03H.42.230.11.L.C.TE	230	257	15	246	15
C03H.42.237.01.L.C.TE	C03H.42.237.11.L.C.TE	237	264	15	253	15
C03H.42.250.01.L.C.TE	C03H.42.250.11.L.C.TE	250	277	15	266	16
C03H.42.262.01.L.C.TE	C03H.42.262.11.L.C.TE	262	289	15	278	17
C03H.42.280.01.L.C.TE	C03H.42.280.11.L.C.TE	280	307	15	296	18
C03H.42.290.01.L.C.TE	C03H.42.290.11.L.C.TE	290	317	15	306	19
C03H.42.300.01.L.C.TE	C03H.42.300.11.L.C.TE	300	327	15	316	20
C03H.42.312.01.L.C.TE	C03H.42.312.11.L.C.TE	312	339	15	328	20
C03H.42.325.01.L.C.TE	C03H.42.325.11.L.C.TE	325	352	15	341	21
C03H.42.337.01.L.C.TE	C03H.42.337.11.L.C.TE	337	364	15	353	22
C03H.42.350.01.L.C.TE	C03H.42.350.11.L.C.TE	350	377	15	366	23
C03H.42.362.01.L.C.TE	C03H.42.362.11.L.C.TE	362	389	15	378	24
C03H.42.375.01.L.C.TE	C03H.42.375.11.L.C.TE	375	402	15	391	25
C03H.42.387.01.L.C.TE	C03H.42.387.11.L.C.TE	387	414	15	403	25
C03H.42.400.01.L.C.TE	C03H.42.400.11.L.C.TE	400	427	15	416	26

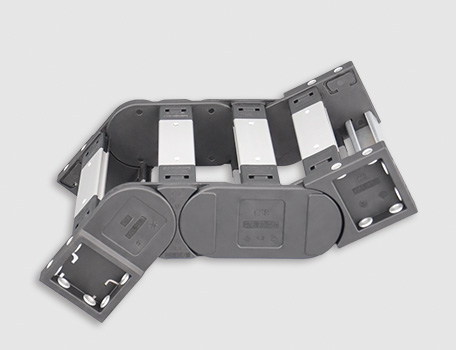

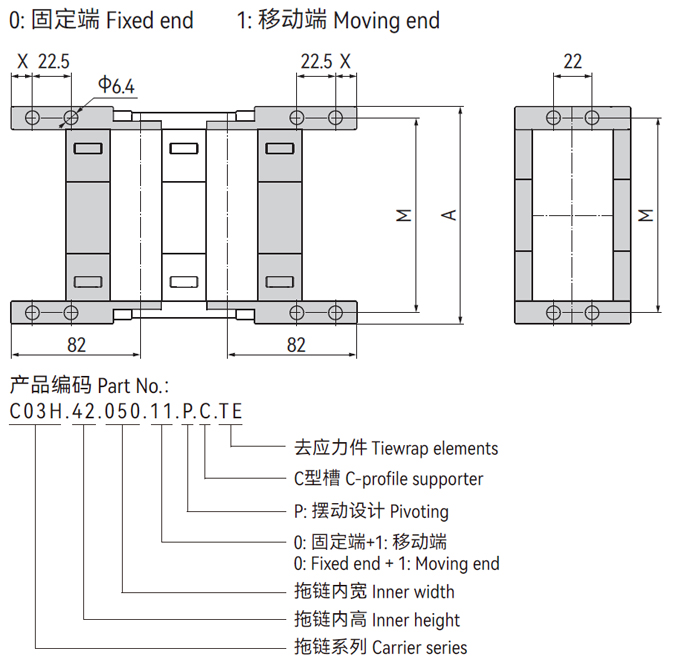

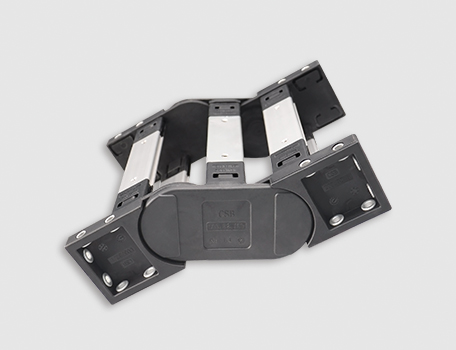

▊Mounting brackets - Pivoting


A2 The number of links is even	A1 The number of links is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
Part No. （ Pivoting ）	Part No. （ Pivoting ）	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Tiewrap elements [pcs]
C03H.42.200.01.P.C.TE	C03H.42.200.11.P.C.TE	200	227	15	216	13
C03H.42.212.01.P.C.TE	C03H.42.212.11.P.C.TE	212	239	15	228	14
C03H.42.230.01.P.C.TE	C03H.42.230.11.P.C.TE	230	257	15	246	15
C03H.42.237.01.P.C.TE	C03H.42.237.11.P.C.TE	237	264	15	253	15
C03H.42.250.01.P.C.TE	C03H.42.250.11.P.C.TE	250	277	15	266	16
C03H.42.262.01.P.C.TE	C03H.42.262.11.P.C.TE	262	289	15	278	17
C03H.42.280.01.P.C.TE	C03H.42.280.11.P.C.TE	280	307	15	296	18
C03H.42.290.01.P.C.TE	C03H.42.290.11.P.C.TE	290	317	15	306	19
C03H.42.300.01.P.C.TE	C03H.42.300.11.P.C.TE	300	327	15	316	20
C03H.42.312.01.P.C.TE	C03H.42.312.11.P.C.TE	312	339	15	328	20
C03H.42.425.01.P.C.TE	C03H.42.425.11.P.C.TE	325	352	15	341	21
C03H.42.337.01.P.C.TE	C03H.42.337.11.P.C.TE	337	364	15	353	22
C03H.42.350.01.P.C.TE	C03H.42.350.11.P.C.TE	350	377	15	366	23
C03H.42.362.01.P.C.TE	C03H.42.362.11.P.C.TE	362	389	15	378	24
C03H.42.375.01.P.C.TE	C03H.42.375.11.P.C.TE	375	402	15	391	25
C03H.42.387.01.P.C.TE	C03H.42.387.11.P.C.TE	387	414	15	403	25
C03H.42.400.01.P.C.TE	C03H.42.400.11.P.C.TE	400	427	15	416	26

▊Installation dimensions

Unsupported length	≤ 4.2m	Speed / acceleration FL_G	≤ 20 [m/s] / 200 [m/s² ]
Sliding length	≤ 300m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 40m	Sliding speed / acceleration	≤ 10 [m/s] / 50 [m/s² ]
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.1m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① SV0203: Install 3pcs vertical separators every other 2pcs blank links
② SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

▊Installation dimensions


*Please consult CSB® if space is particularly restricted.

R	075	100	125	150	175	200	250	300	350
H	214	264	314	364	414	464	564	664	764
D	208	233	258	283	308	333	383	433	483
K	370	450	530	610	685	765	920	1080	1235

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03H.42 For long travels gliding applications | 12-300m


R	075	100	125	150	175	200	250	300	350
H2	150	200	186	186	186	186	186	186	186
D2	174	199	475	570	670	780	1030	1150	1500
K2	370	450	804	938	1139	1340	1675	1943	2412
△CL	-	-	230	300	380	460	660	730	1030

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03H.42 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

▊C03H.42.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
