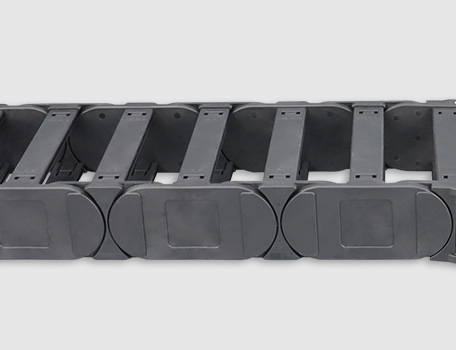

C03.32 High load cable carriers - CSB® Plastic Bearing Technology

Product properties

C03.32 high load cable carriers combines all the advantages of the previous versions and is the best DURAMOV® carriers in the product range. C03.32 cable carriers is stronger whilst having the same or even smaller dimensions than previous versions. You can increase the service life of your application with C03.32 cable carriers whilst reducing cost.

● Long-term application temperature：-40/+120℃

● Inner height：32 mm
● Inner width：50-200 mm
● Bend radius：63-300 mm
● Link pitch：56 mm

Standard products

C03.32 High load cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

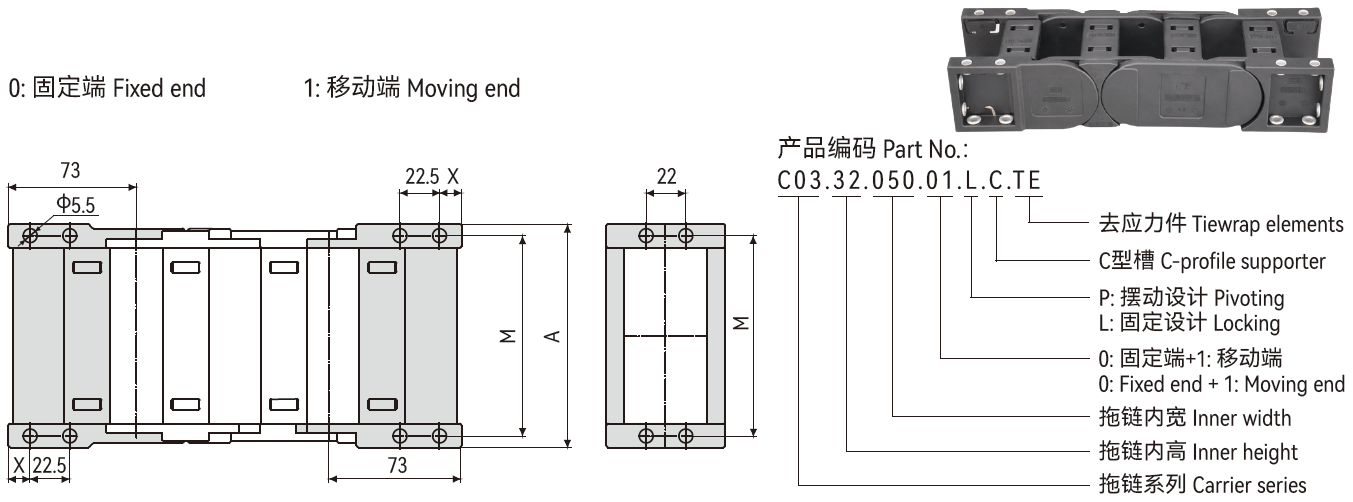

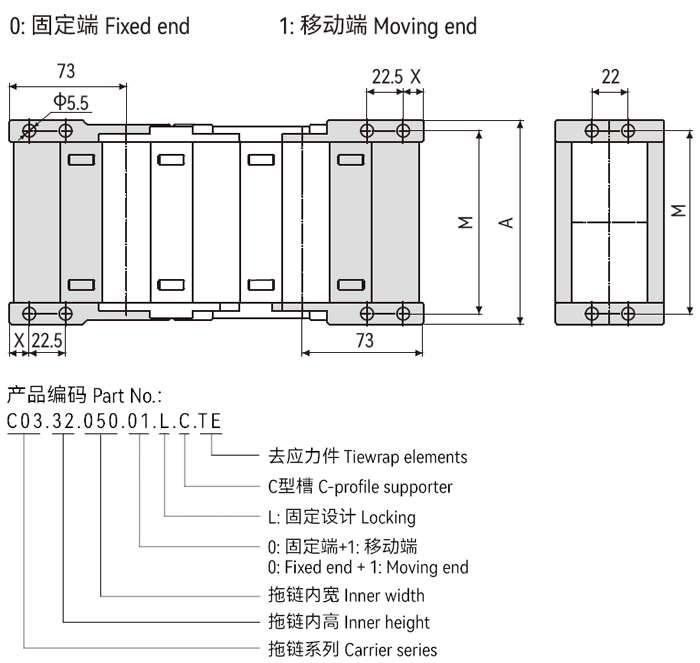

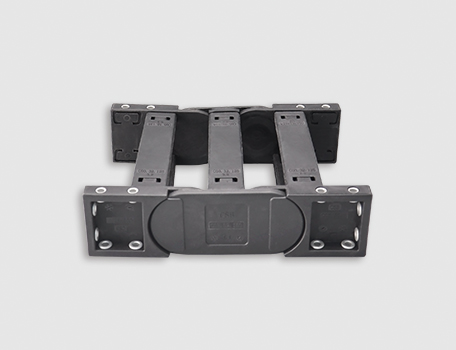

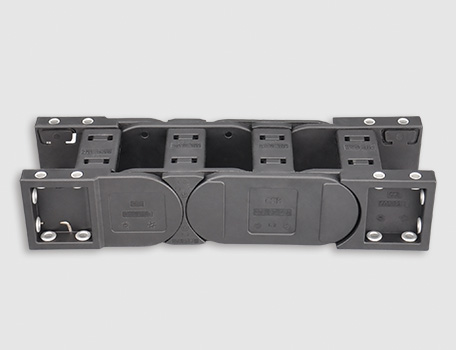

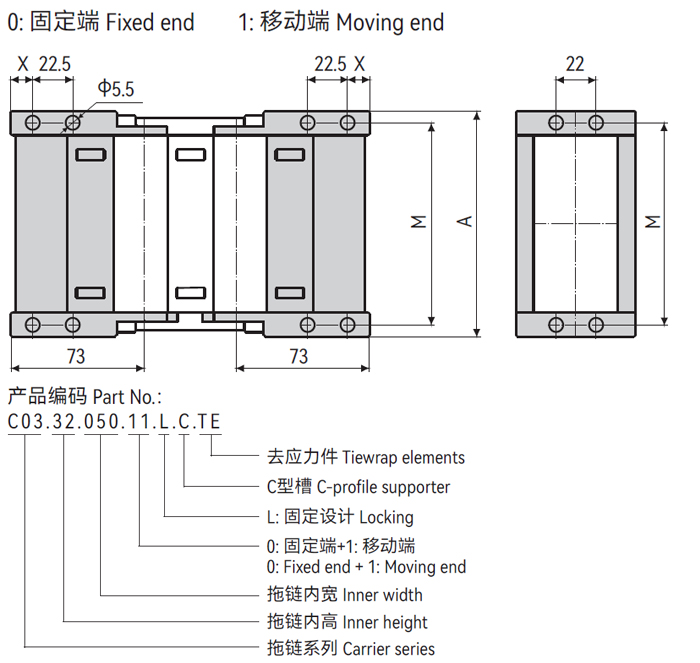

▊Mounting brackets - Locking


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
Part No. Locking	Part No. Locking	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C03.32.050.01.L.C.TE	C03.32.050.11.L.C.TE	50	77	12.5	64	3
C03.32.075.01.L.C.TE	C03.32.075.11.L.C.TE	75	102	12.5	89	4
C03.32.100.01.L.C.TE	C03.32.100.11.L.C.TE	100	127	12.5	114	6
C03.32.125.01.L.C.TE	C03.32.125.11.L.C.TE	125	152	12.5	139	8
C03.32.150.01.L.C.TE	C03.32.150.11.L.C.TE	150	177	12.5	164	10
C03.32.175.01.L.C.TE	C03.32.175.11.L.C.TE	175	202	12.5	189	11
C03.32.200.01.L.C.TE	C03.32.200.11.L.C.TE	200	227	12.5	214	13

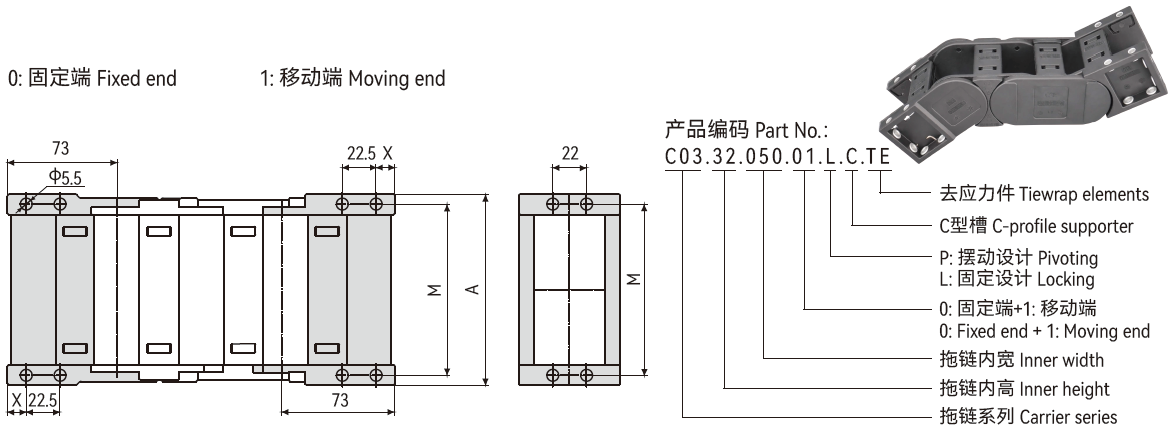

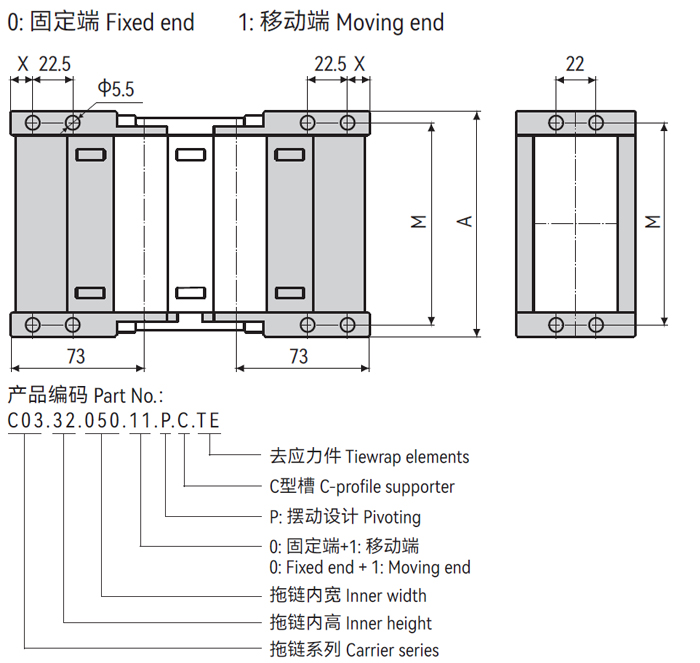

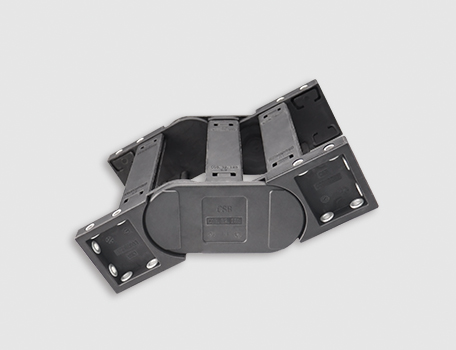

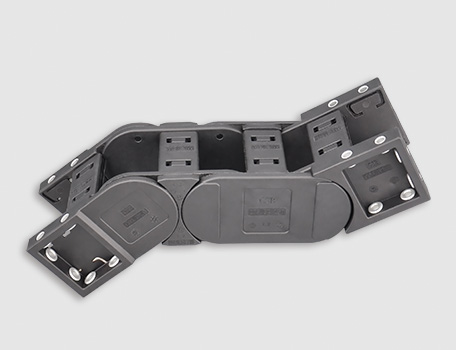

▊Mounting brackets - Pivoting


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
Part No. Pivoting	Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C03.32.050.01.P.C.TE	C03.32.050.11.P.C.TE	50	77	12.5	64	3
C03.32.075.01.P.C.TE	C03.32.075.11.P.C.TE	75	102	12.5	89	4
C03.32.100.01.P.C.TE	C03.32.100.11.P.C.TE	100	127	12.5	114	6
C03.32.125.01.P.C.TE	C03.32.125.11.P.C.TE	125	152	12.5	139	8
C03.32.150.01.P.C.TE	C03.32.150.11.P.C.TE	150	177	12.5	164	10
C03.32.175.01.P.C.TE	C03.32.175.11.P.C.TE	175	202	12.5	189	11
C03.32.200.01.P.C.TE	C03.32.200.11.P.C.TE	200	227	12.5	214	13

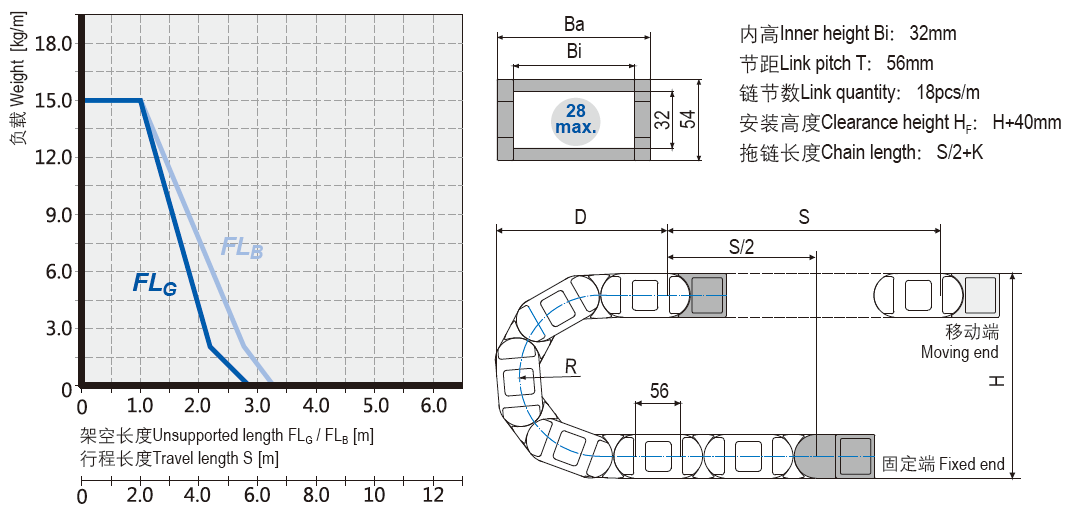

▊Installation dimensions

Unsupported length	≤ 3.0m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	10-200m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 30m	Sliding speed / acceleration	≤4 [m/s] / 25 [m/s² ]
Vertical standing	≤ 2.5m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.0m	Flammability Class	UL94 HB

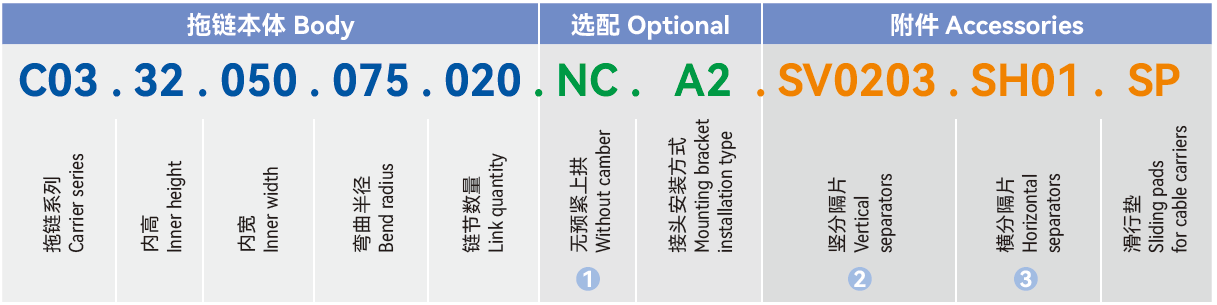

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

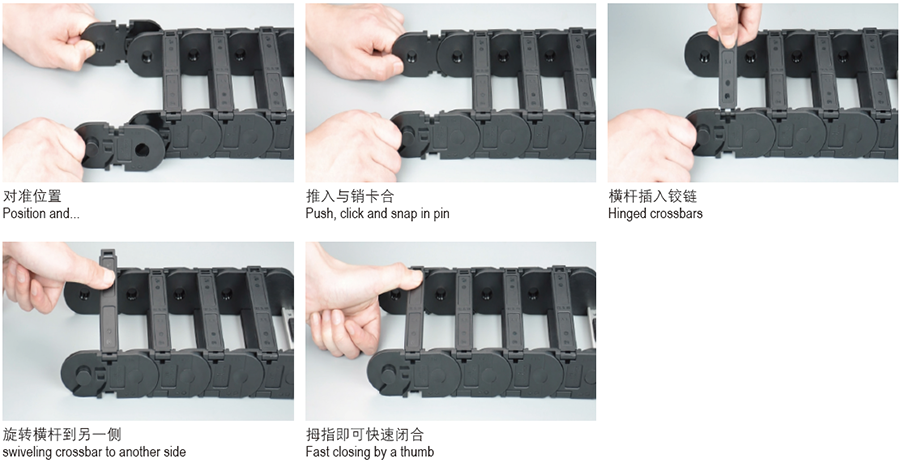

▊ Installation

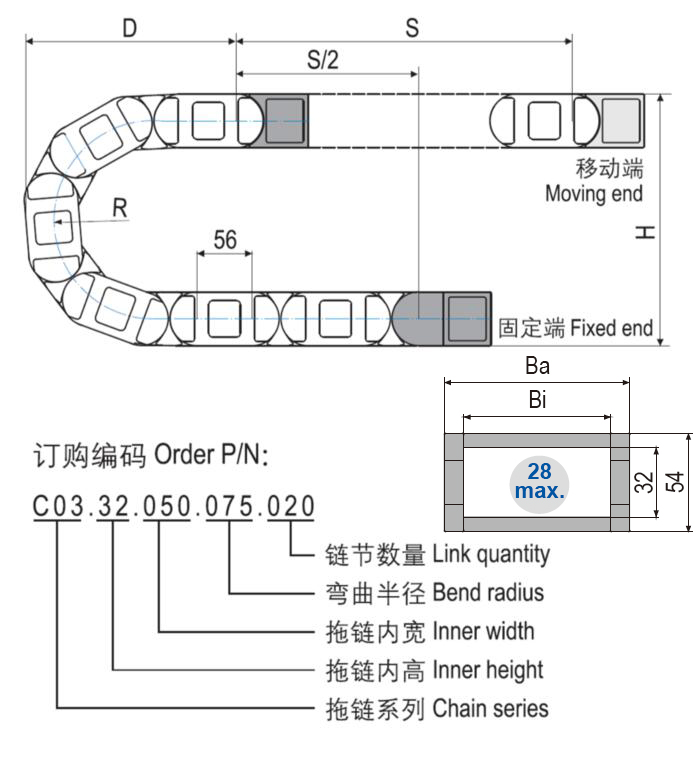

▊Installation dimensions

High load cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	063	075	100	125	150	175	200	220	250	300
H	180	204	254	301	354	404	454	494	554	654
D	174	186	211	236	261	286	311	331	361	411
K	310	350	430	505	585	665	745	805	900	1055

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03.32 For long travels gliding applications | 10-200m


R	063	075	100	125	150	175	200	225	250	300
H2	126	150	166	166	166	166	166	166	166	166
D2	146	158	370	470	500	655	770	900	930	1100
K2	310	350	616	784	896	1120	1288	1456	1568	1904
△CL	-	-	160	210	240	370	460	540	570	690

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03.32 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

▊C03.32.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.
