Product properties

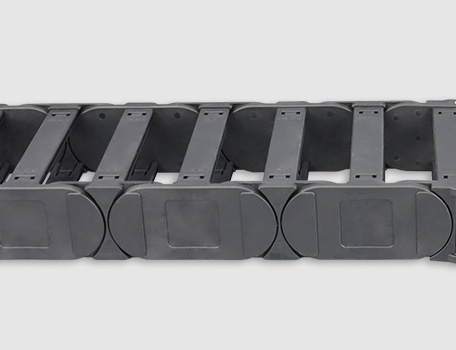

C03.56 high load cable carriers combines all the advantages of the previous versions and is the best DURAMOV® carriers in the product range. C03.56 cable carriers is stronger whilst having the same or even smaller dimensions than previous versions. You can increase the service life of your application with C03.56 cable carriers whilst reducing cost.
● Long-term application temperature：-40/+120℃

● Inner height：56 mm
● Inner width：100-300 mm
● Bend radius：135-500 mm
● Link pitch：91 mm

Standard products

C03.56 High load cable carriers

Part no.:

Inner width Bi [mm]：

Outer width Ba [mm]：

Inner height Hi [mm]：

Outer height Ha [mm]：

Link pitch T [mm]：

Bend radius R [mm]：

Nominal clearance height [mm]：

Final position D[mm]：

Add-on for R K[mm]：

Max. unsupported L[m]：

Max. hanging L[m]：

Max. standing L[m]：

*Lead time [wks]：

Shop now

Dimensions

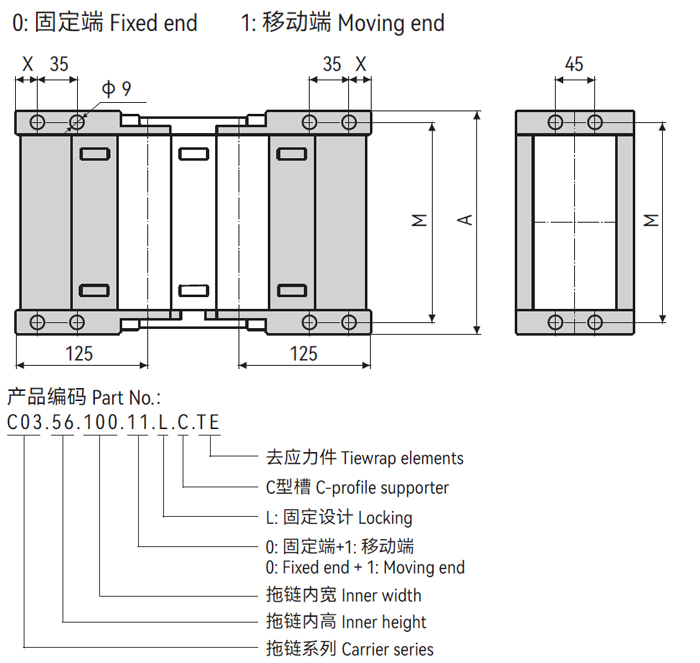

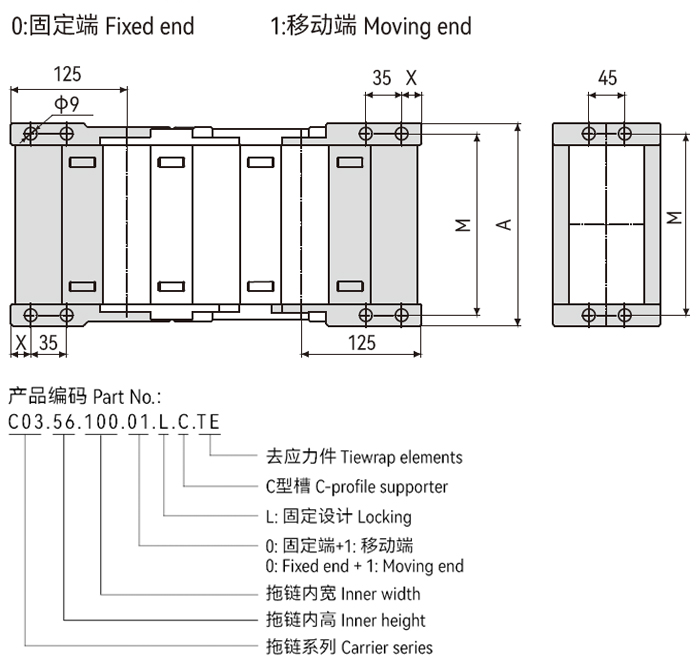

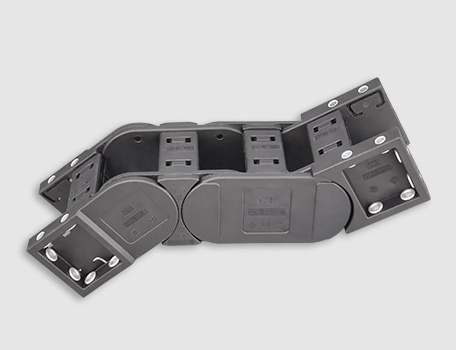

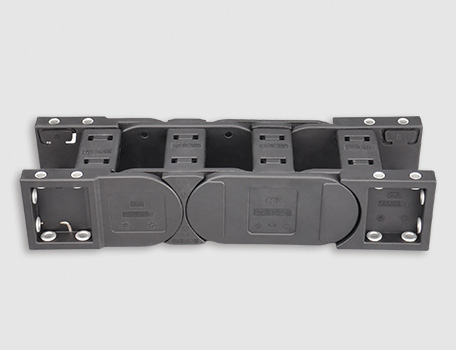

▊Mounting brackets - Locking


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
Part No. Locking	Part No. Locking	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C03.56.100.01.L.C.TE	C03.56.100.11.L.C.TE	100	141	20	123	6
C03.56.125.01.L.C.TE	C03.56.125.11.L.C.TE	125	166	20	148	8
C03.56.150.01.L.C.TE	C03.56.150.11.L.C.TE	150	191	20	173	10
C03.56.175.01.L.C.TE	C03.56.175.11.L.C.TE	175	216	20	198	11
C03.56.200.01.L.C.TE	C03.56.200.11.L.C.TE	200	241	20	223	13

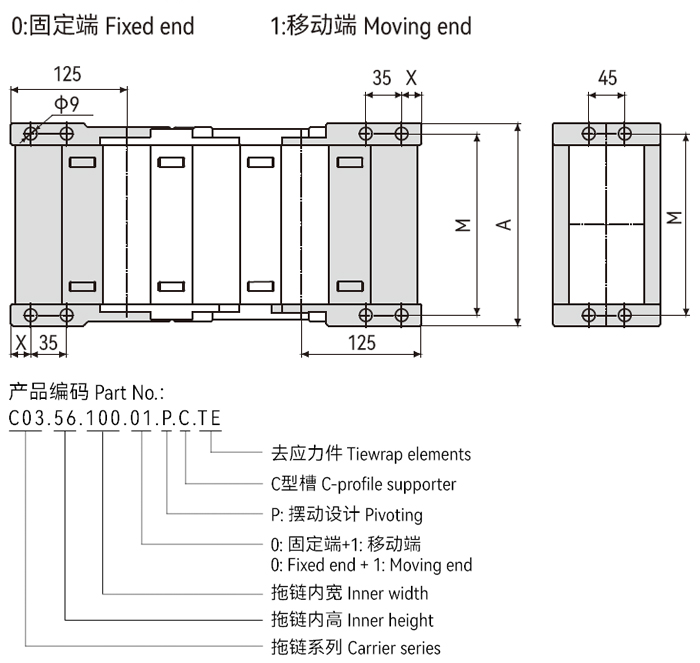

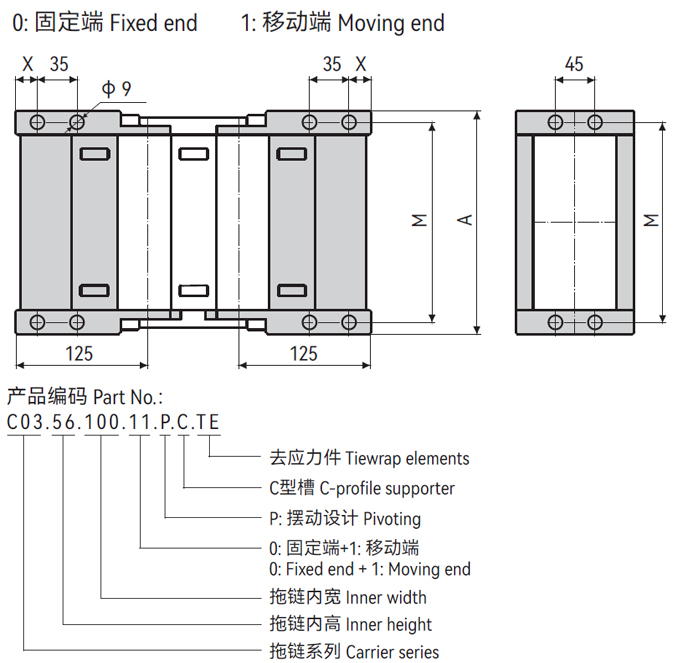

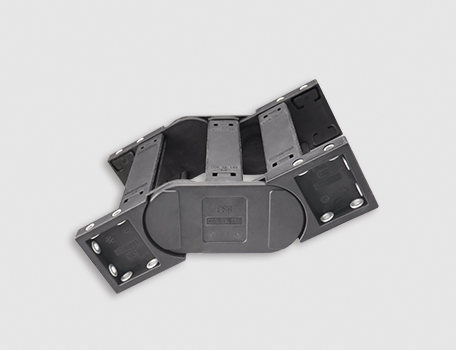

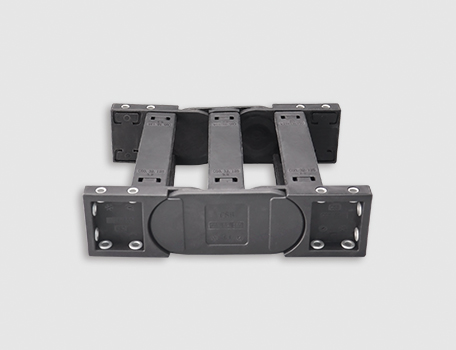

▊Mounting brackets - Pivoting


A2 The number oflinks is even	A1 The number oflinks is odd	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
Part No. Pivoting	Part No. Pivoting	Inner width Bi [mm]	A [mm]	X [mm]	M [mm]	Max. quantity of tiewrap elements [pcs]
C03.56.100.01.P.C.TE	C03.56.100.11.P.C.TE	100	141	20	123	6
C03.56.125.01.P.C.TE	C03.56.125.11.P.C.TE	125	166	20	148	8
C03.56.150.01.P.C.TE	C03.56.150.11.P.C.TE	150	191	20	173	10
C03.56.175.01.P.C.TE	C03.56.175.11.P.C.TE	175	216	20	198	11
C03.56.200.01.P.C.TE	C03.56.200.11.P.C.TE	200	241	20	223	13

▊Installation dimensions

Unsupported length	≤ 5.0m	Speed / acceleration FL_G	≤ 10 [m/s] / 50 [m/s² ]
Sliding length	12-400m	Speed / acceleration FL_B	≤ 3 [m/s] / 6 [m/s² ]
Vertical hanging	≤ 40m	Sliding speed / acceleration	≤4 [m/s] / 25 [m/s² ]
Vertical standing	≤ 3.0m	Permitted temperature	-40℃ ~120℃
Side-unsupported length	≤ 2.5m	Flammability Class	UL94 HB

▊Order code for pre-assembled cable carriers


① Upon request for NC version without camper
② SV0203: Install 3pcs vertical separators every other 2pcs blank links
③ SH01: Horizontal separator 1pc installed in the middle hole

▊ Installation

▊Installation dimensions

High load cable chains installation dimensions

*Please consult CSB® if space is particularly restricted.

R	135	150	175	200	250	300	350	400	450	500
H	354	384	434	484	584	684	784	884	984	1084
D	314	329	354	379	429	479	529	579	629	679
K	610	655	735	815	970	1125	1285	1440	1600	1755

*The required clearance height：H_F=H+40mm（Fill weight 2.5kg/m)

▊C03.56 For long travels gliding applications | 12-400m


R	135	150	175	200	250	300	350	400	450	500
H2	270	266	266	266	266	266	266	266	266	266
D2	268	450	580	710	980	1180	1440	1530	1700	1850
K2	610	819	1092	1274	1638	2002	2275	1548	2912	3276
△CL	-	159	259	359	559	709	905	959	1059	1159

▊Mounting bracket installation optional

High load cable chains mounting bracket installation optional

*C03.56 Possible installation configurations
*Depending on the number of links is odd or even. A1 for odd-numbered links and A2 for even-numbered links.

▊C03.56.Bi.01.P.C

High load cable chains special optional

*For unsupported and gliding applications

High load cable chains S-shaped Standing

*S-shaped Standing

Vertical separators for C03 cable carriers

● The separator separates inside space of the chain to protect cables, oil hoses, gas hoses, etc.

● Separator with high strength, can be ﬁrmly ﬁtted in carriers

C-profile brackets for C03 cable carriers

● Aluminum alloy, surface anodized

● The tiewrap elements can move within the guide slot

Sliding pads for cable carriers

● Used for C03 cable chains long stroke protection

● Made of friction-optimized wear-resistant composite plastic

● Rugged and durable, extend the life of the cable carrier

Horizontal separators

● Use with vertical separators to arrange the space in the cable chain in layers up and down.
● The vertical separators can move freely along the horizontal direction.

BL Bellows

BL bellows is suitable for use in general mechanical applications, The good anti-freezing ability and self-extinguishing properties can be used in automotive industries. The bellows keep high impact resistance in ...

C03 High load cable chains

Type PDF

Size 729KB

Time 10-2023

No. CSB/CAT.064

download

672
